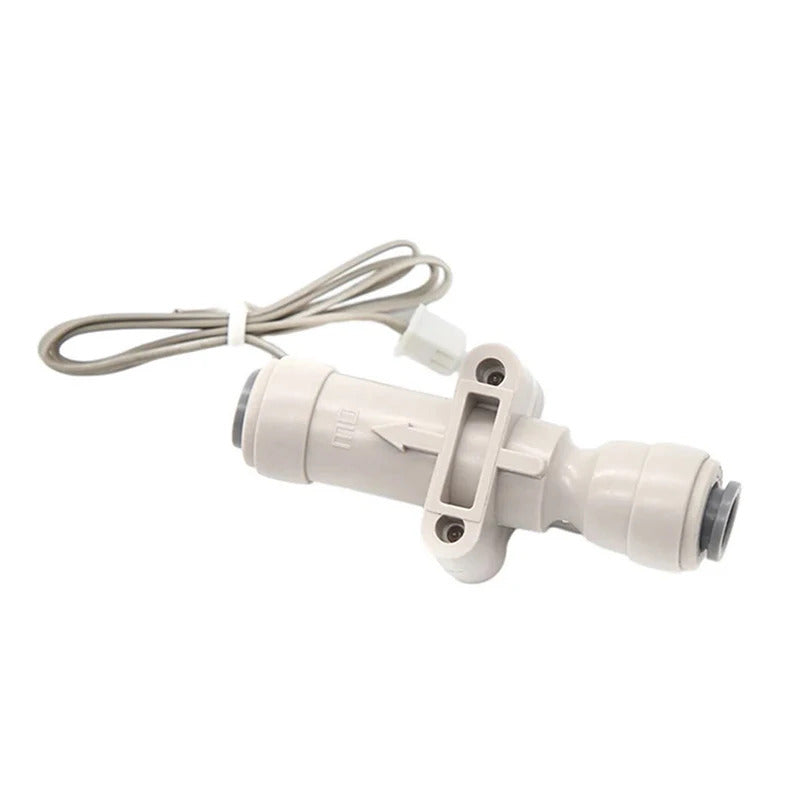

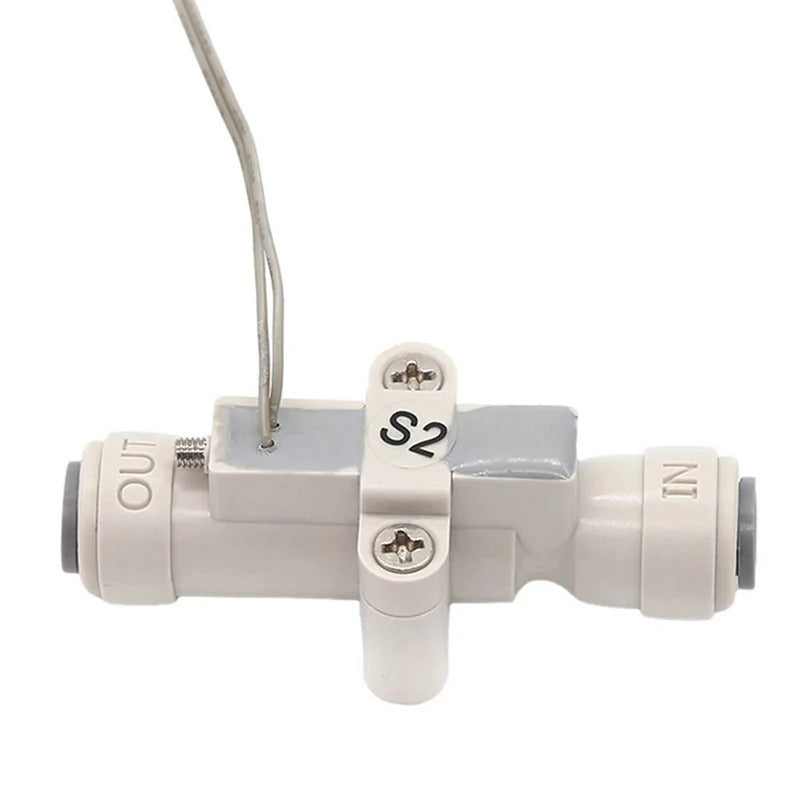

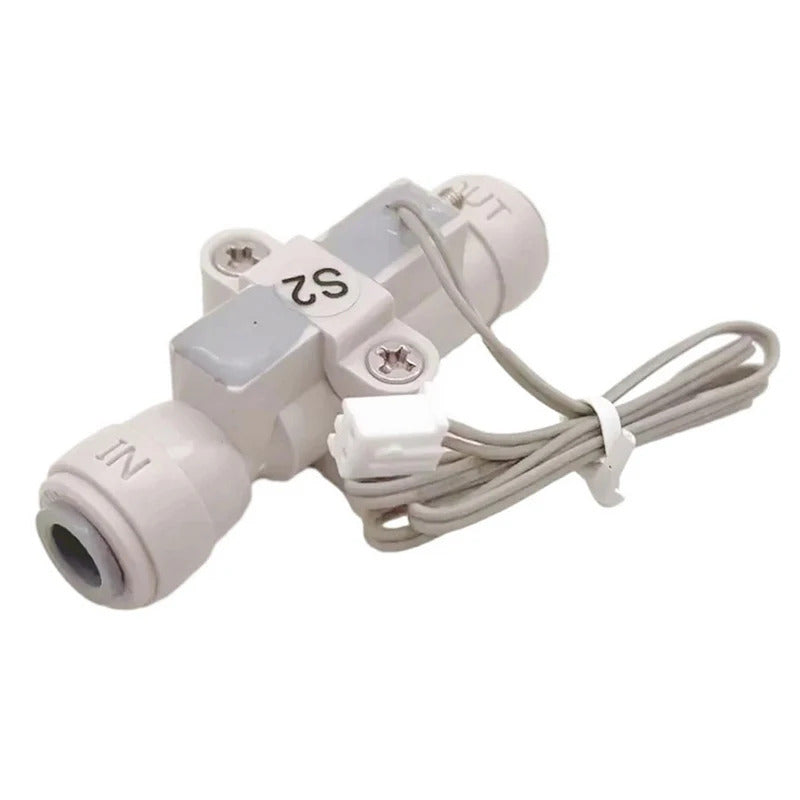

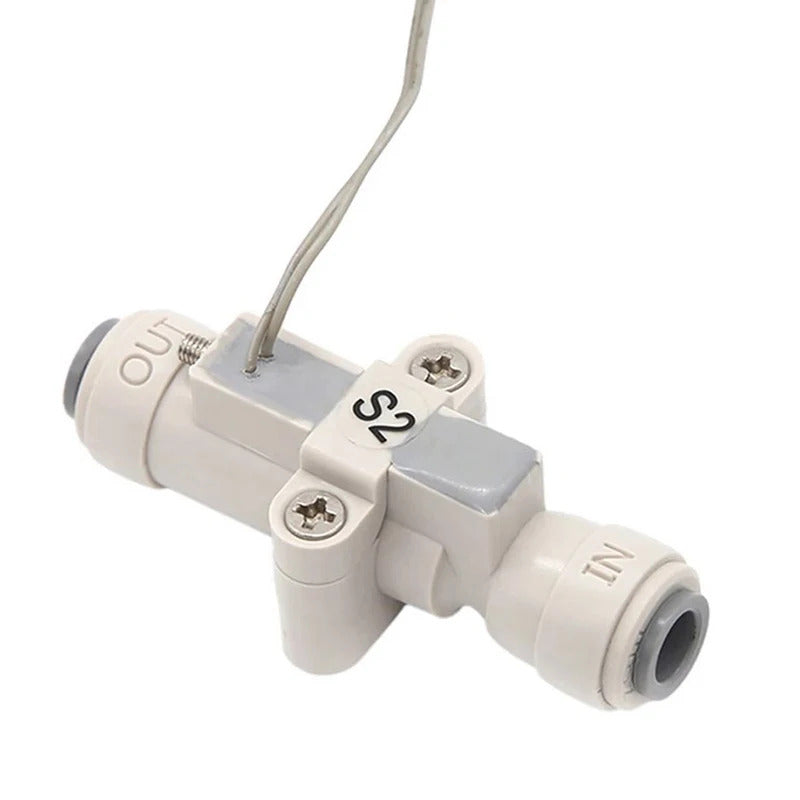

1/4" 6mm WATER FLOW SWITCH

1.High sensitivity and strong durability.

2.Response: less than 1 second.

3.Light weight, reasonable size, and stable performance.

4.Low water pressure start-up, easy installation, and safe use.

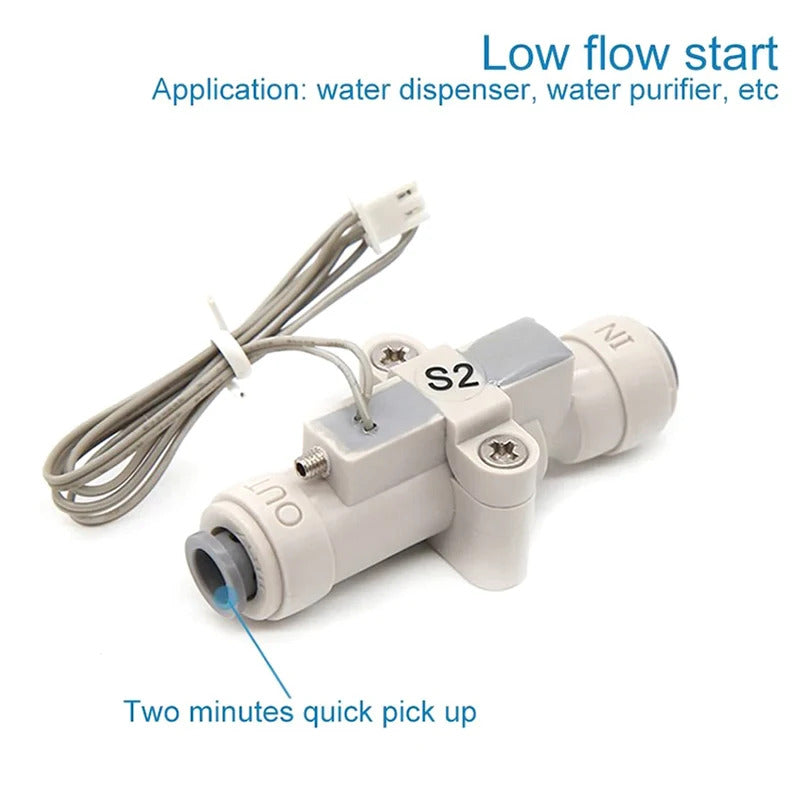

5.Widely used: It can be used in Water dispenser, Water filter, automatic vending machines, etc.

Basic principle: When water flows in the pre-set flow channel, it pushes the magnet to move. When it moves to the corresponding reed tube and senses the magnetic field, the reed tube conducts; When there is no water flow, the magnet returns under the thrust of the spring, and the corresponding reed tube cannot sense the magnetic field, causing the reed tube to disconnect.

Parameters:

Model: MW-WS-S2

Interface size: 2-point quick connect (1/4 ")

Thread: G1/4

Starting flow rate: S2 type:<300ml/min

Response time:<1S

Switch type: normally (disconnected)

Wire length: 50cm

Segment type: XH-2

Voltage range: DC0-110V

Maximum closing current: 0.5A

Maximum load current: 1A

Wire connection strength: Apply 20N.10S tensile force along the axial direction of the terminal, and 20N.10S tensile force along the vertical direction of the terminal (there is no damage at the connection)

Water pressure resistance: open at a hydrostatic pressure of 1.05MPa for 5 minutes (without leakage or damage)

Drop performance: Drop onto the concrete from a height of 50cm in any direction once (after the test, the action is normal and there is no damage)

Applicable environment

Applicable water quality: turbidity<1; Fe+Co+Ni<0.3Mg/L

Applicable water pressure: ≤ 0.8MPa

Applicable water temperature: 5~50 ℃

Environmental humidity:<85%

Storage temperature: -20~50 ℃

Package include:

Water flow sensor x 1
