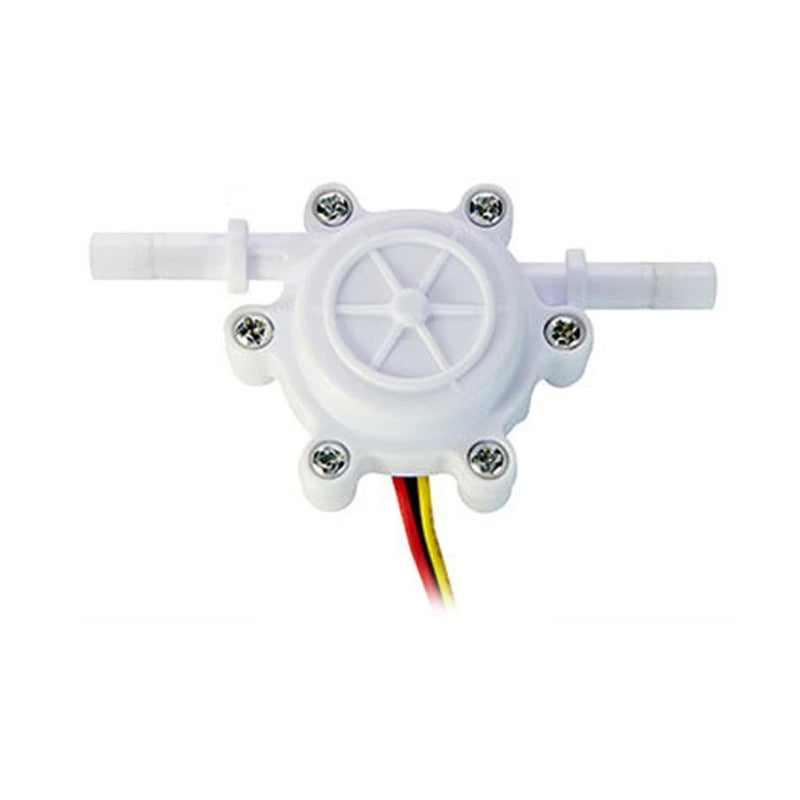

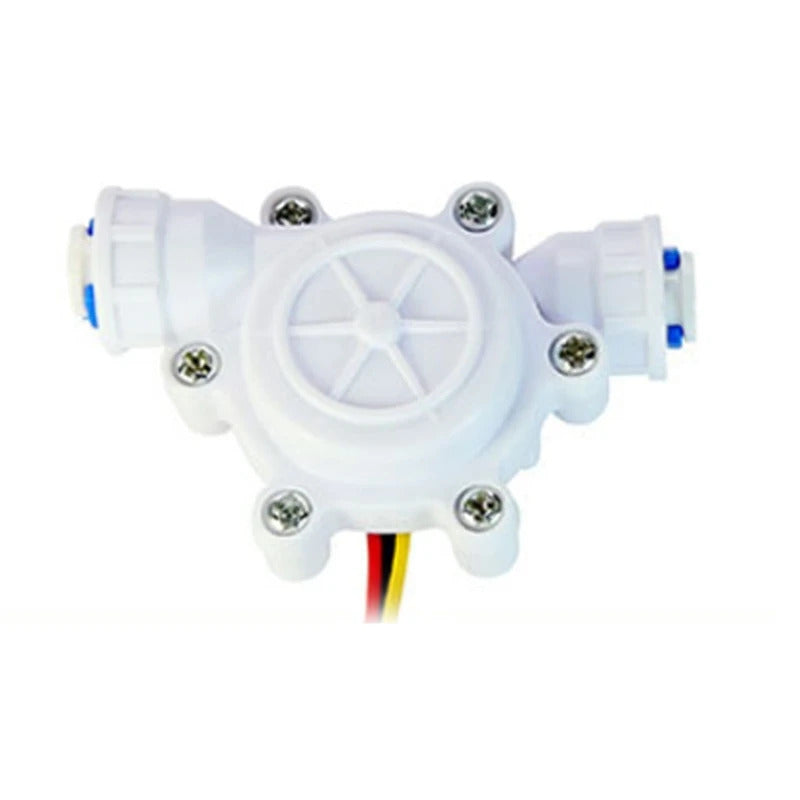

1/4" QUICK CONNECT WATER FLOW METER

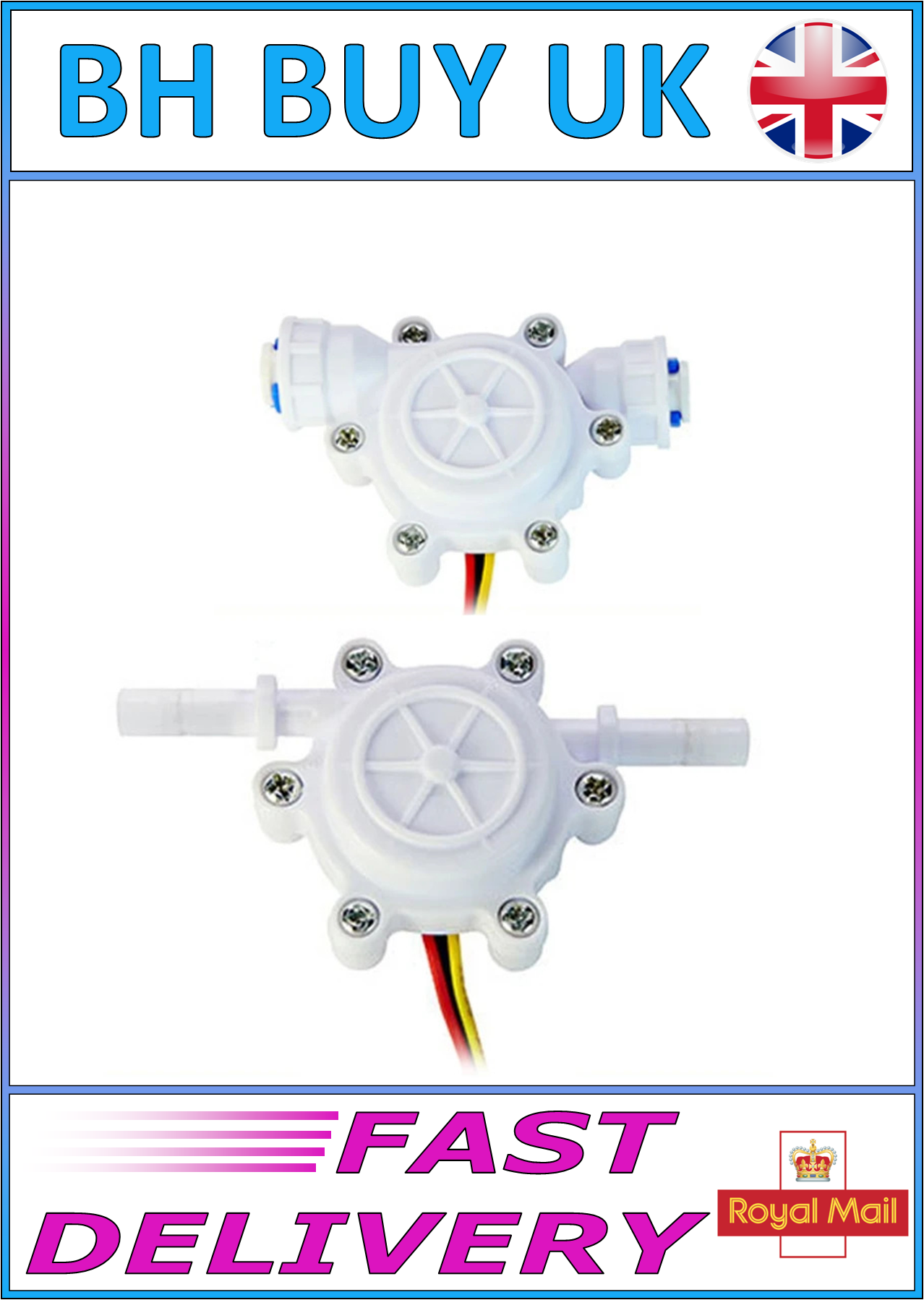

Selection of 1/4" (6mm) push fit ends or 10mm (O/D) stem ends.

Product name: water flow for water purifier
Product application: fruit and vegetable cultivation, beer machine, dishwasher, water purifier, wine vending machine, wine cabinet, etc. Equipment to be measured.
Small/micro, high-precision, ultra-small flow ultra-high resolution, certification, easy installation, adjustable models, anti-backflow, durable and reliable, long life, low power consumption (using low-power chips patented products, high-tech products, high 1.2MPa water pressure resistance, water hammer resistance, long service life, quiet operation, hygiene and safety, low operation
principle: excitation, high and low level, square duty cycle 50%, linear ratio, digital
Function: metering, speed counting, alarm water shortage for protection

Specific parameters:

Accuracy (flow): 0.2-8L/MIN within 5%
Maximum working current: 15MA (DC5v)
Load capacity: ≤10MA (DC5v)
Humidity
Storage temperature: -25~+80℃
Output
Minimum working
Temperature
Allowable pressure: under 1.75mpa water pressure
Working
Storage humidity: 25%-95%RH
Output low
