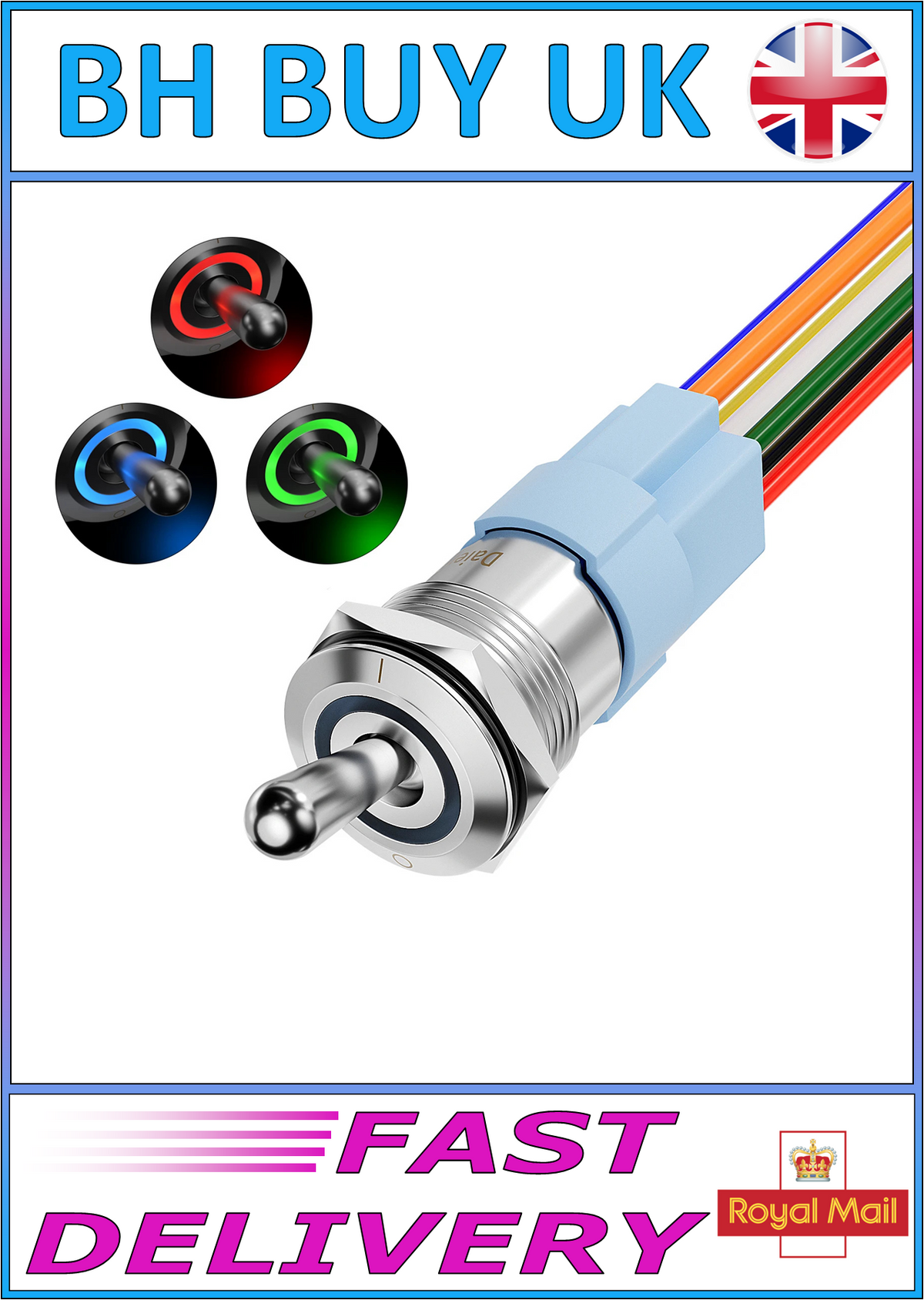

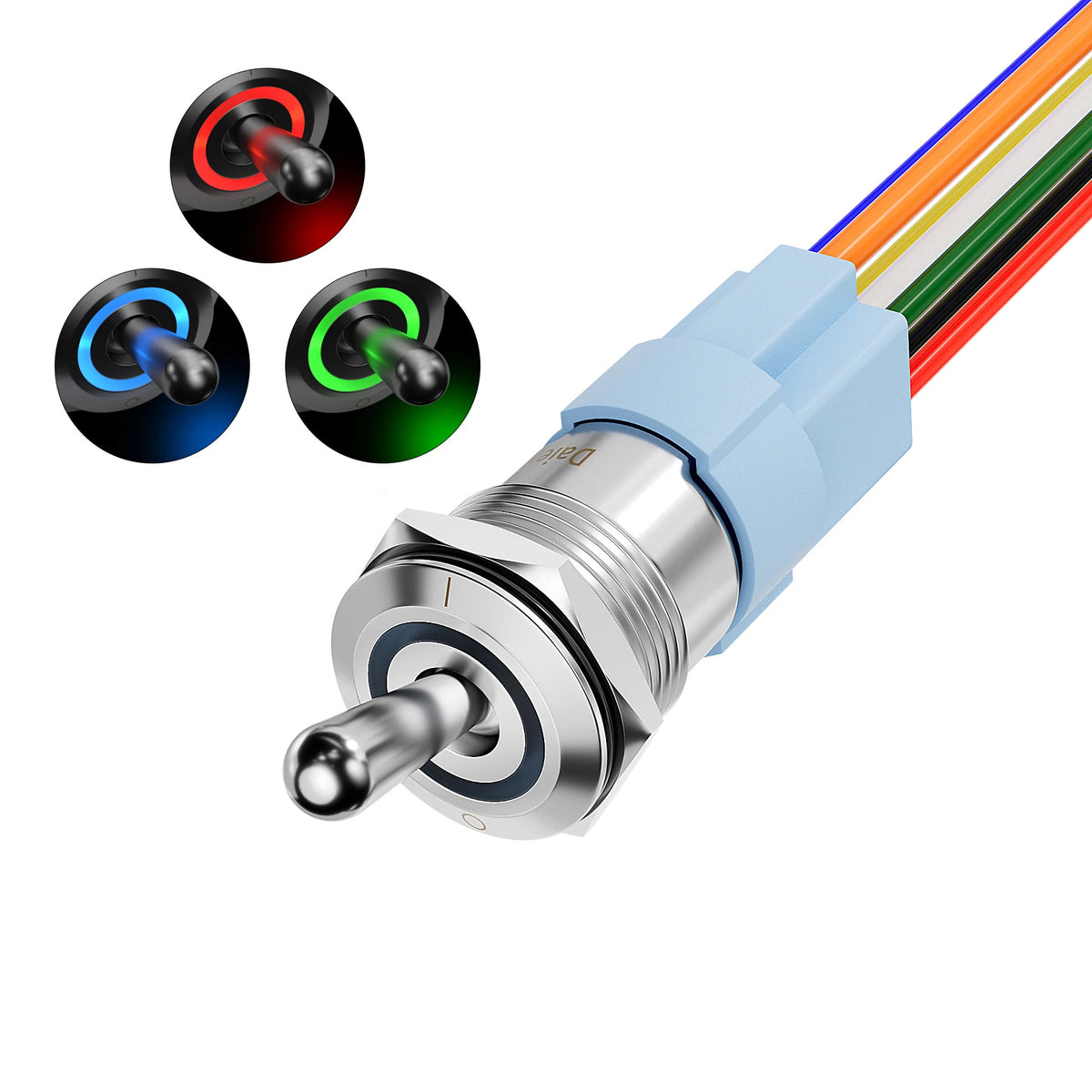

12V RGB ILLUMINATED TOGGLE SWITCH 20A – ON/OFF 16MM PANEL MOUNT IP67

12V On/Off Illuminated Toggle Switch
Upgrade your vehicle or electrical project with this RGB illuminated toggle switch. Designed for convenient on/off control, it features a multicolour LED system for a distinctive appearance and easy switch identification.

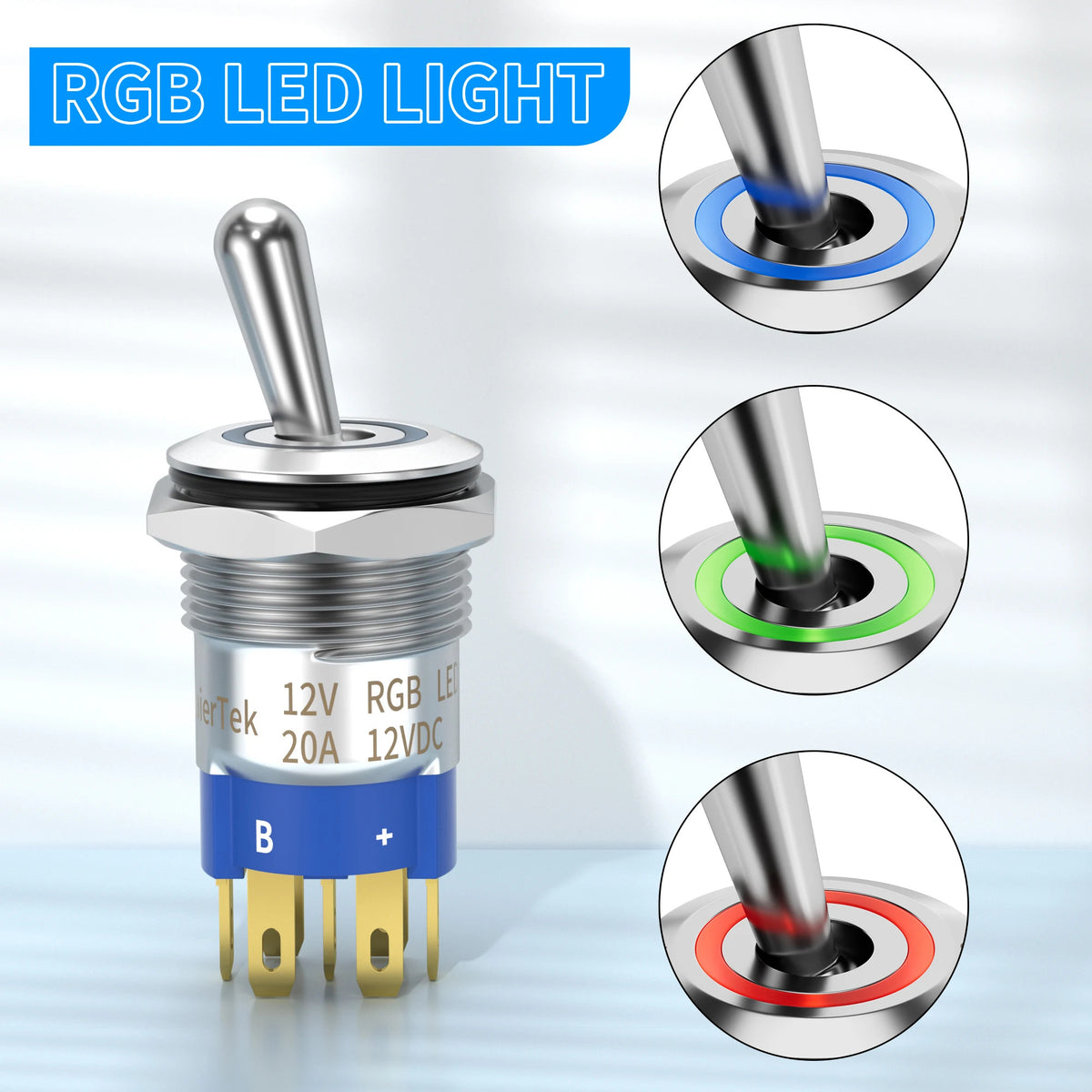

Customisable RGB LED Lighting

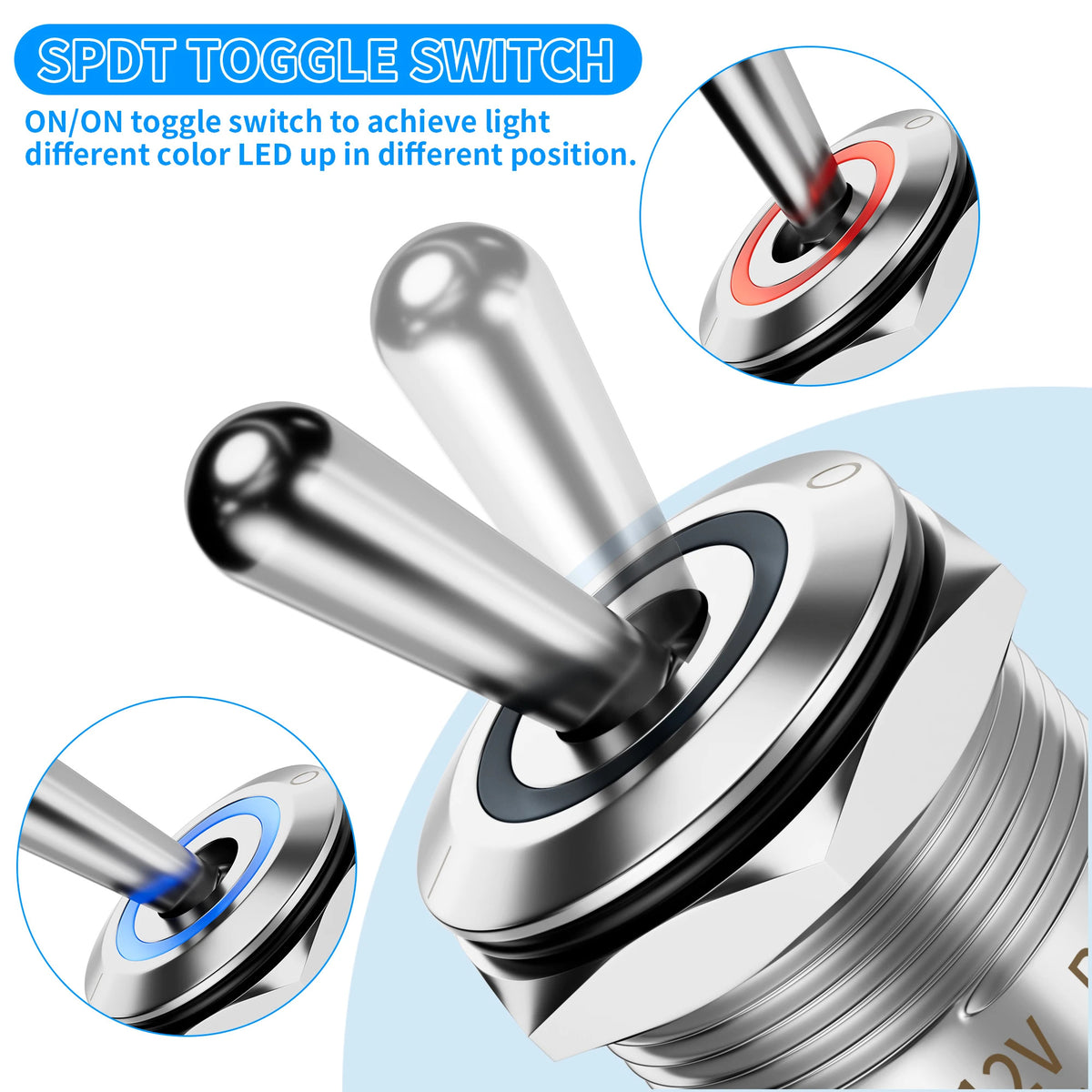

The built-in red, green and blue LEDs support different lighting colour combinations. Depending on the wiring configuration, the illumination colour can be set to differ between the on and off positions. Ideal for creating a personalised dashboard or control panel.

20A Switching Capacity
Rated at 20A at 12V DC, this switch is suitable for compatible low-voltage electrical applications. Always check the load requirements and use suitable circuit protection before installation.

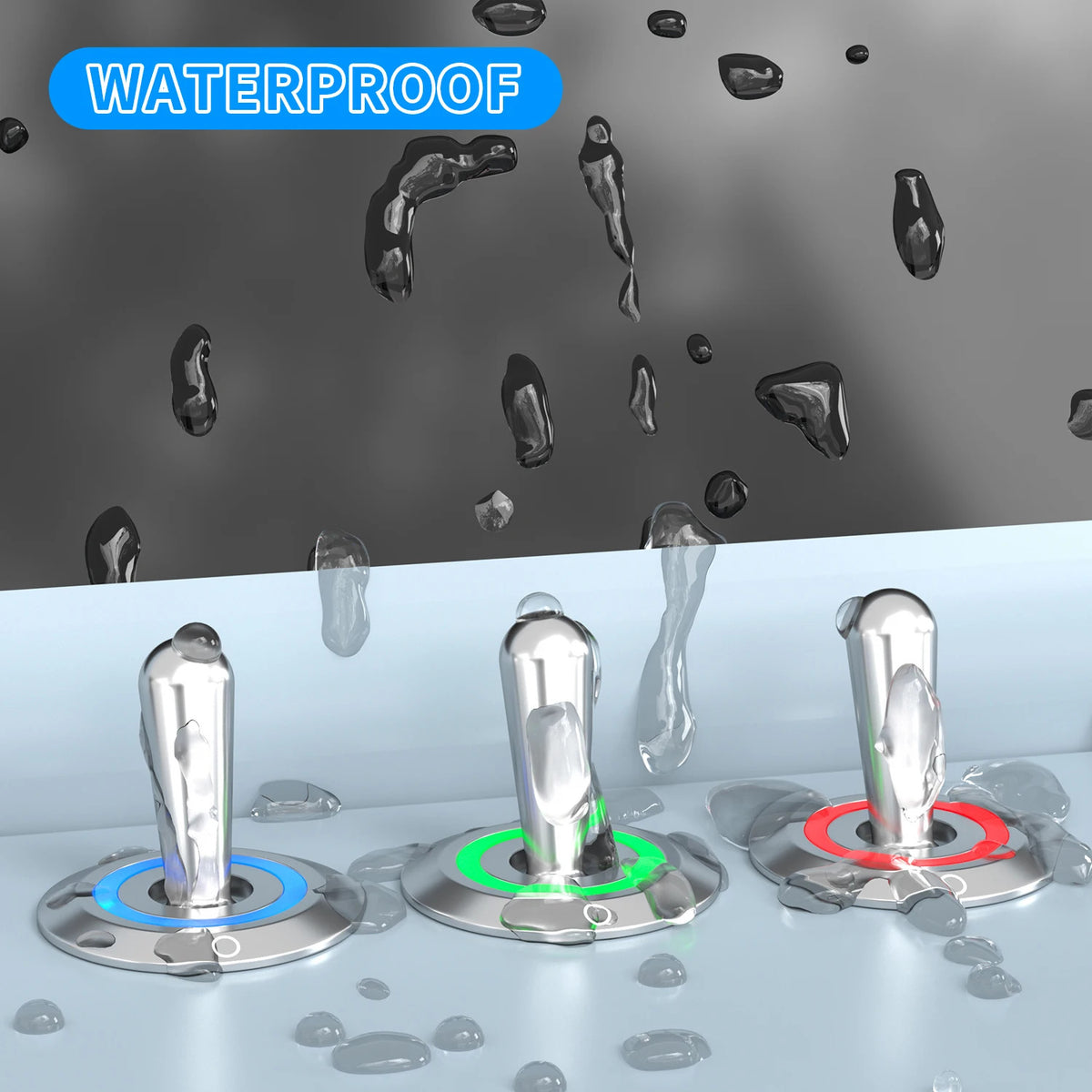

IP67 Waterproof Front Design
The switch is designed with an IP67-rated waterproof front when correctly installed. Please note that the rear housing and electrical terminals are not waterproof and must be protected from moisture.

Easy Panel Installation
Requires a 16mm mounting hole for installation in a suitable panel. Supplied with a wiring set and cable ties to assist with fitting and cable management.

Wide Range of Applications
Suitable for compatible automotive, marine and general 12V control panels, including cars, trucks, boats and other electrical projects.

Product Specifications

• Product Type: Illuminated Toggle Switch

• Switch Function: On/Off

• Operating Voltage: 12V DC system

• LED Voltage Range: 12–24V, as specified

• LED Colours: Red, Green and Blue (RGB)

• Current Rating: 20A at 12V DC

• Mounting Hole Diameter: 16mm

• Waterproof Rating: IP67 for the front when correctly installed

• Rear Housing and Terminals: Not waterproof

• Wire Set Length: Approximately 15.8cm (6.22 inches), as supplied

Package Includes

• 1 × RGB Illuminated Toggle Switch

• 1 × Wire Set

• Cable Ties

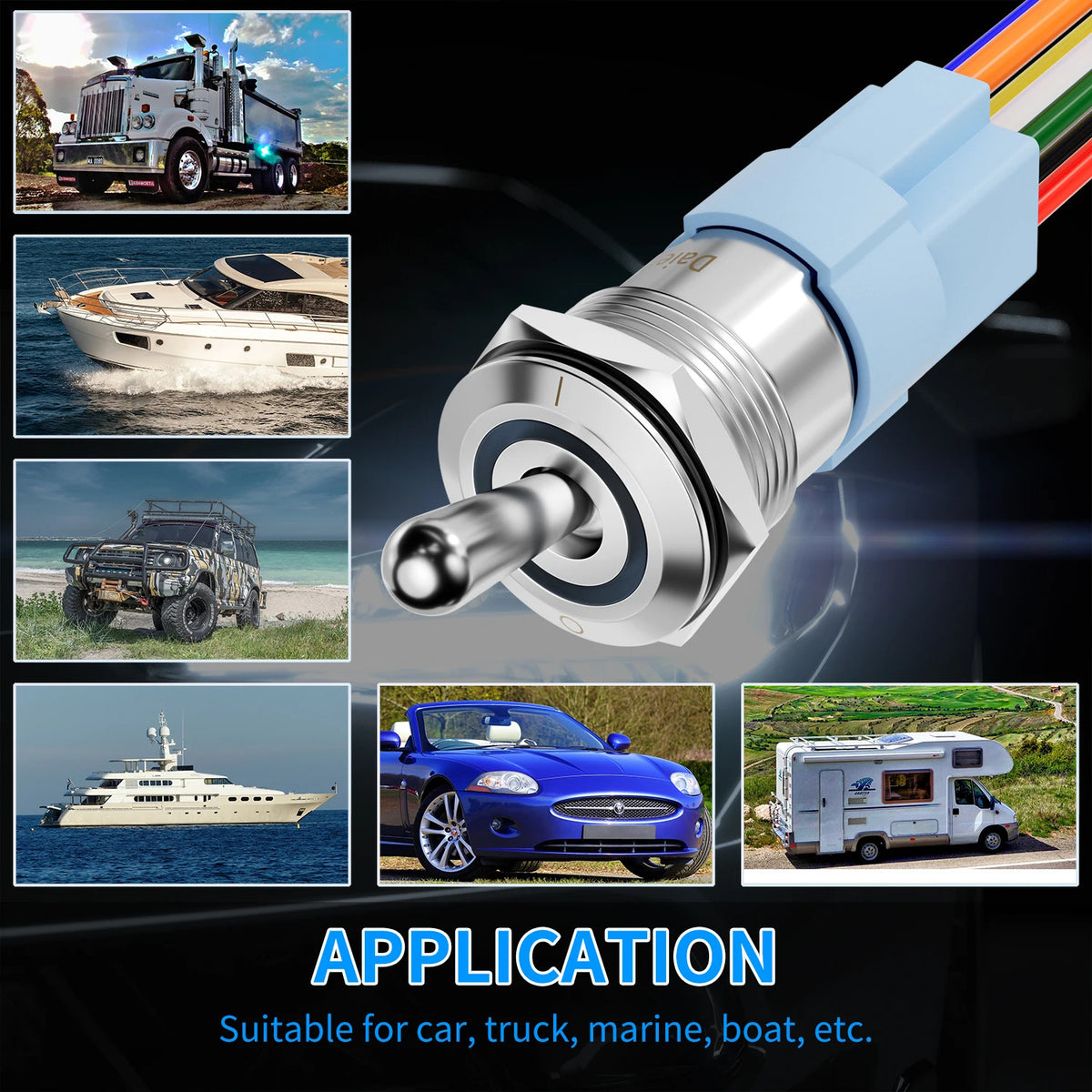

Suitable Applications

• Cars and trucks

• Marine boats

• Automotive dashboards

• Custom control panels

• Compatible low-voltage electrical projects

A practical illuminated switch for adding convenient on/off control and RGB styling to your vehicle or electrical installation.

Installation note: Confirm the terminal layout, LED wiring configuration and load rating before use. Protect the rear terminals from water and use an appropriately rated fuse.
