PLEASE NOTE THIS PUMP REQUIRES A 12v TRANSFORMER TO RUN
Precautions for use:
The water pump is a DC water pump, and the voltage must be DC power supply (such as battery, DC power supply marked with DC, transformer), and the voltage can be used within the specified voltage range.
It is strictly forbidden to run dry for a long time without water
It is strictly forbidden to use in acidic and alkaline solutions.
It is strictly forbidden to use in the liquid of impurities and magnetically permeable particles larger than 0.35MM. If the water quality is too dirty, it is necessary to clean the impurities in the pump chamber in time.
Specifications:
100% brand new and high quality

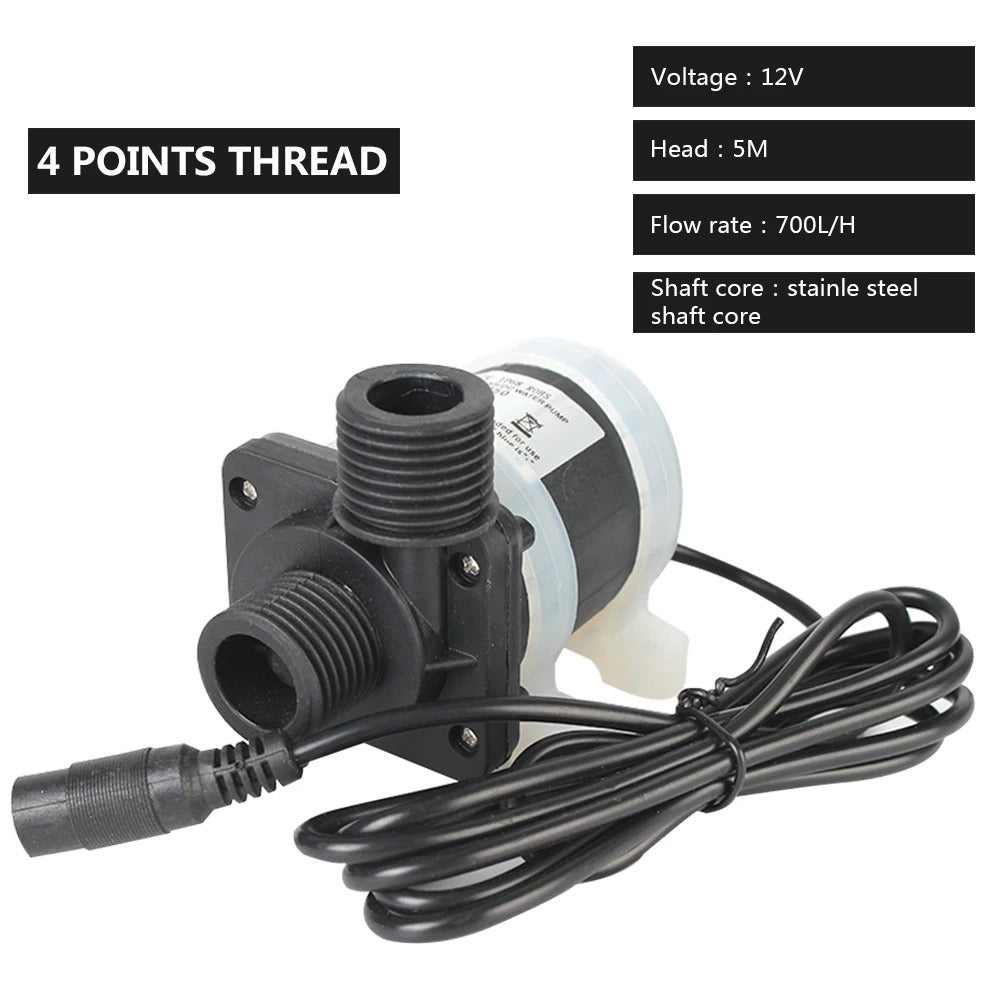

Voltage Scope(DC): 12V
Power(W): 16.8
Max Water Head(M): 5
Max Flow Rate (L/H): 700
Starting Voltage: 6
Waterproofing grade: IP68
Ambient temperature: -20 degrees to 100 degrees
Ambient humidity: 90% RH or less
Use medium temperature: -20 degrees to 100 degrees
Use medium: water, alcohol, diesel, etc.
Lifetime: ≥30000H
Insulation withstand voltage test: 1500V 60 seconds
Sound: ≤35dB

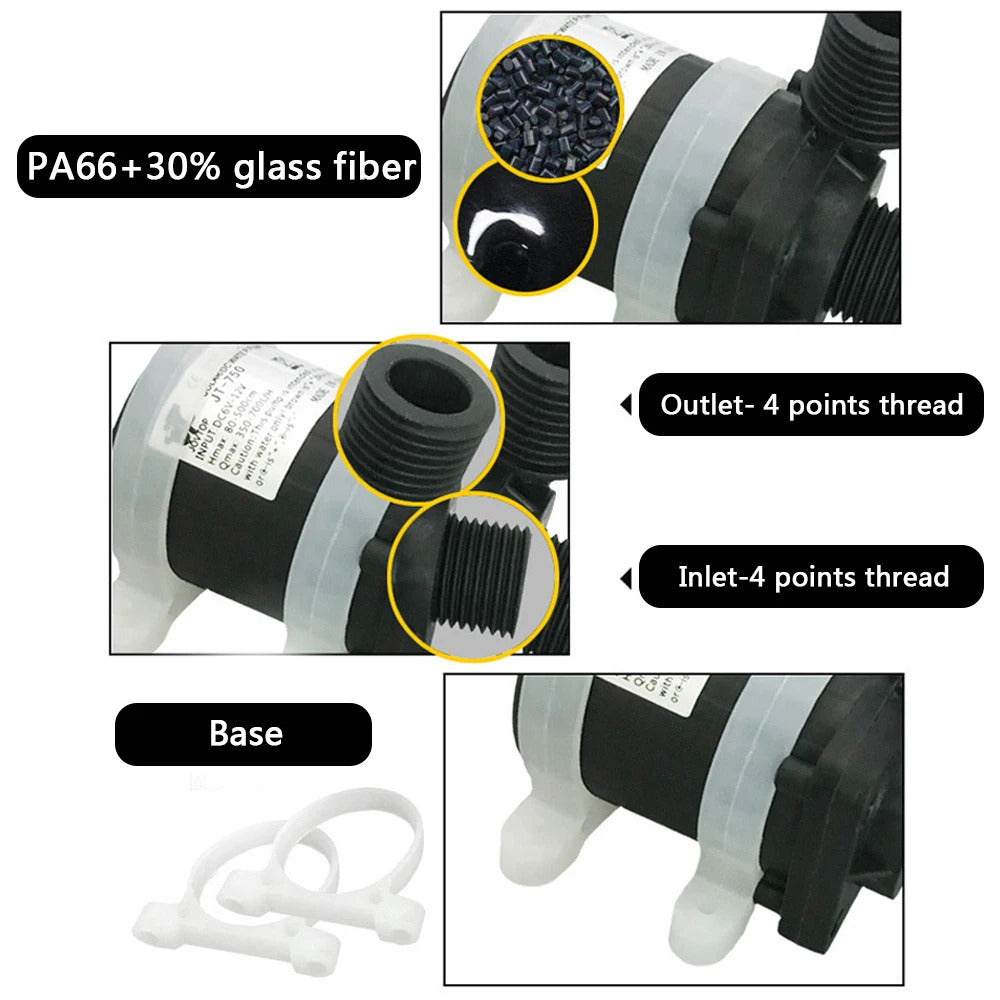

Pump housing material: PA66+30% glass fibre
Magnet material: ferrite permanent magnet
Enamelled copper wire: 2UEW temperature resistance 150 degrees
Rotor material: POM
Wire frame material: nylon material PA66
Power cord material: PVC
Shaft material: 316 stainless steel
