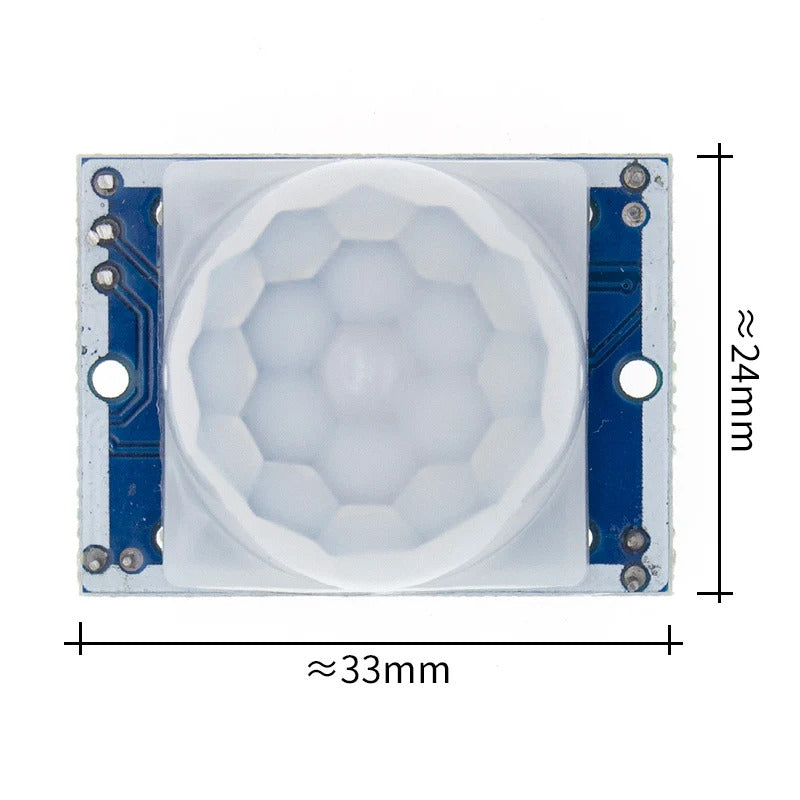

1. Working voltage: DC5V to 20V 2. static power consumption: 65 3. output level: high 3.3V, low 0V 4. delay time: adjustable (0.3 sec ~18 sec) 5. the embargo time: 0.2 seconds 6. trigger mode: l not repeatable, h can be repeated, the default value for h 7. induction range: less than 120 degree cone angle, up to 7 meters 8. working temperature:- -15~+70 9.PCB dimensions: 32*24mm, screw hole 28mm, screw diameter 2mm, induction of lens dimensions: (diameter): 23mm (default)
Features: Automatic: when someone enters the sensing range is input high level, people leaving the induction range is automatically delayed closing high level. Output low level.
Light control (optional): module to set aside a location, you can set the photo control, or strong light during the day without induction.
Induction blackout time (default setting: 0.2 sec): after each induction the induction module output (high level low level), you can immediately set a blackout time, during this time the sensor does not receive any sensor signal. This feature can be achieved (sensor output and blockade times) the interval between work, can be applied to interval detection products; at the same time this function can inhibit various disturbances load in the process of switching.
Wide operating voltage range: default voltage DC5V to 20V
Power consumption: quiescent current 65, particularly suitable for battery-powered appliances.
High level signal output: can be easily docked with the circuit.
