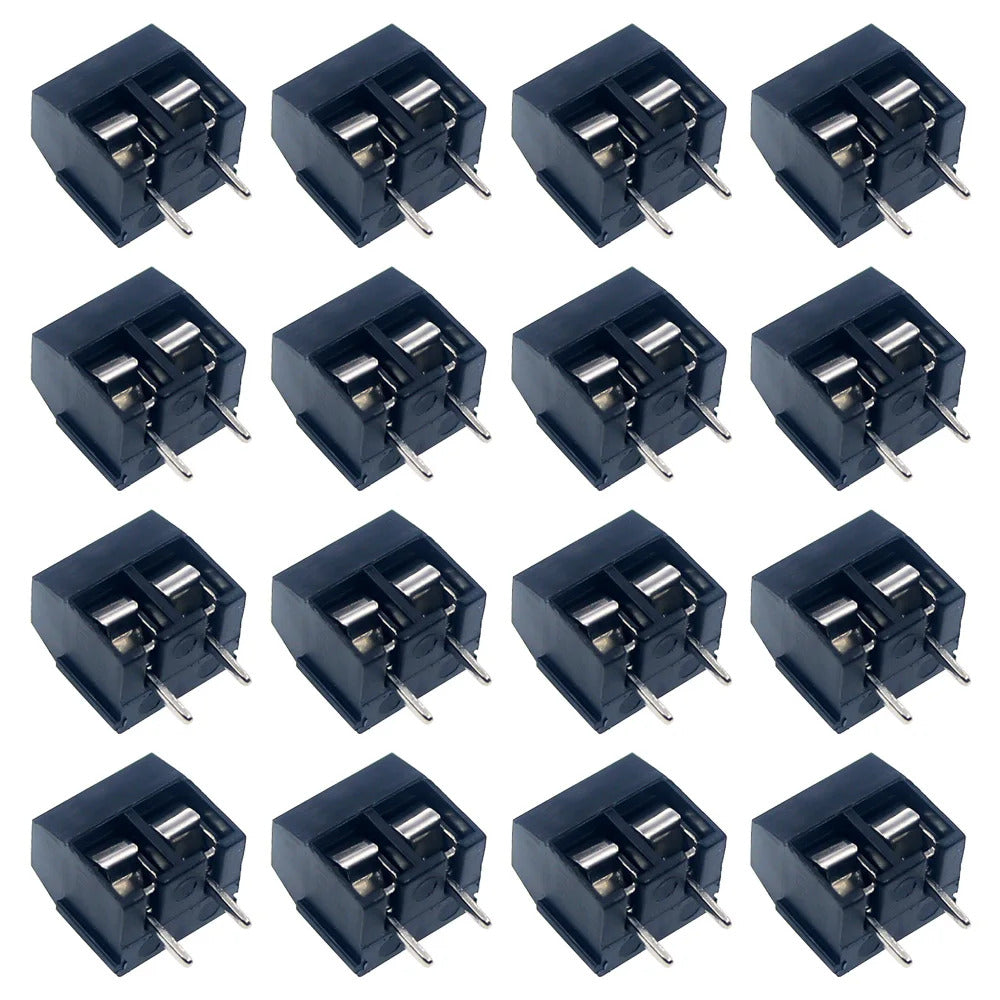

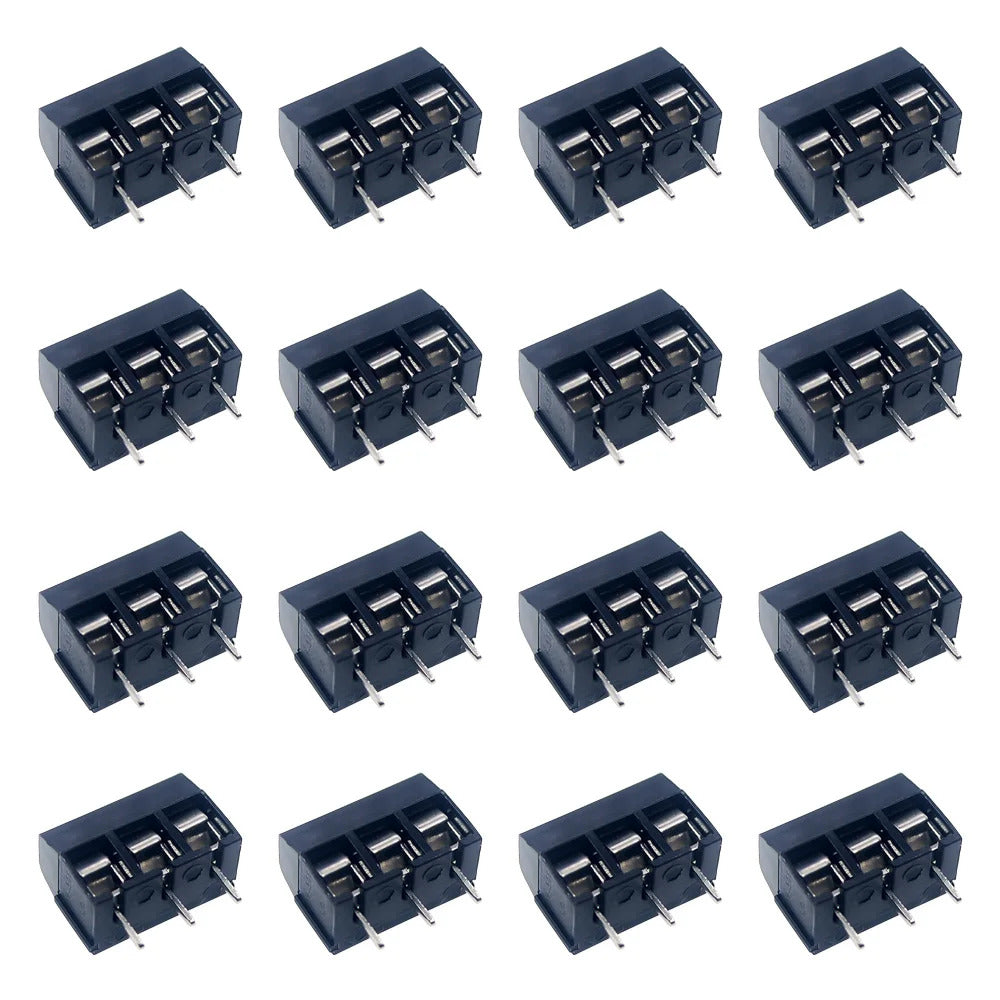

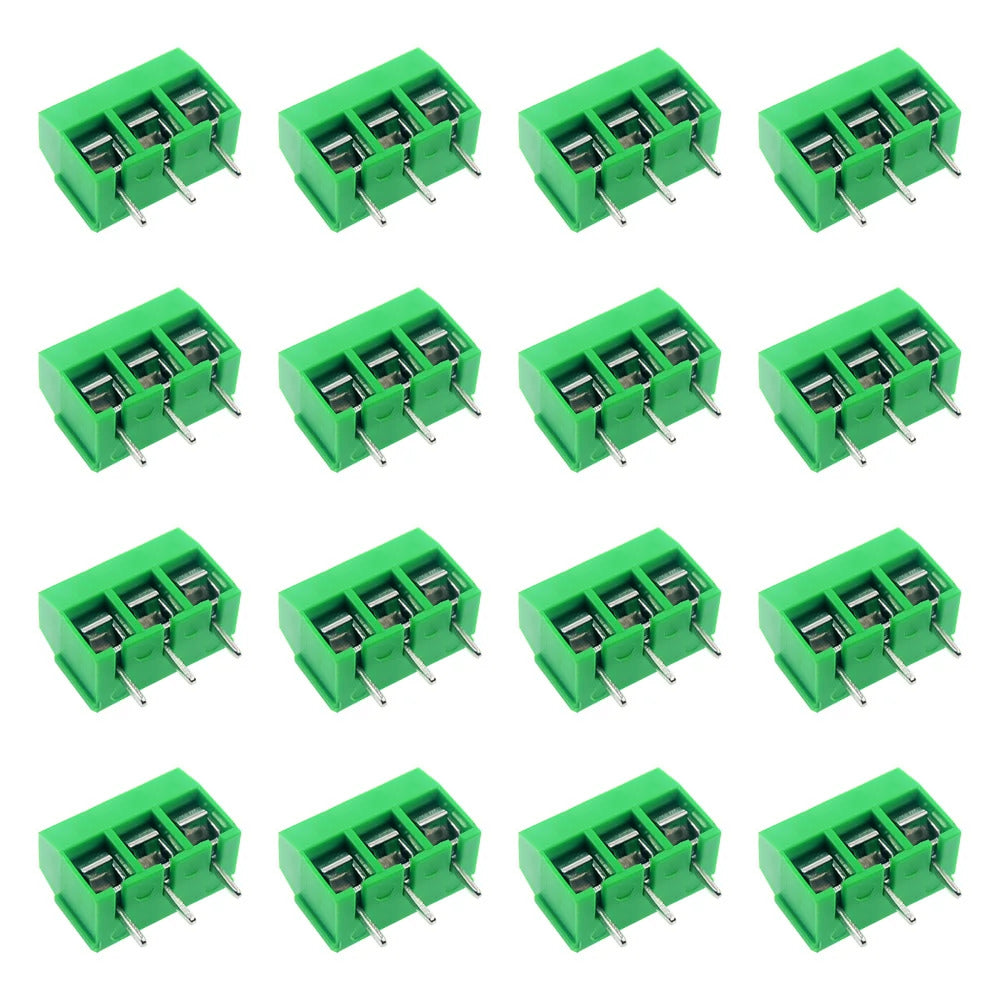

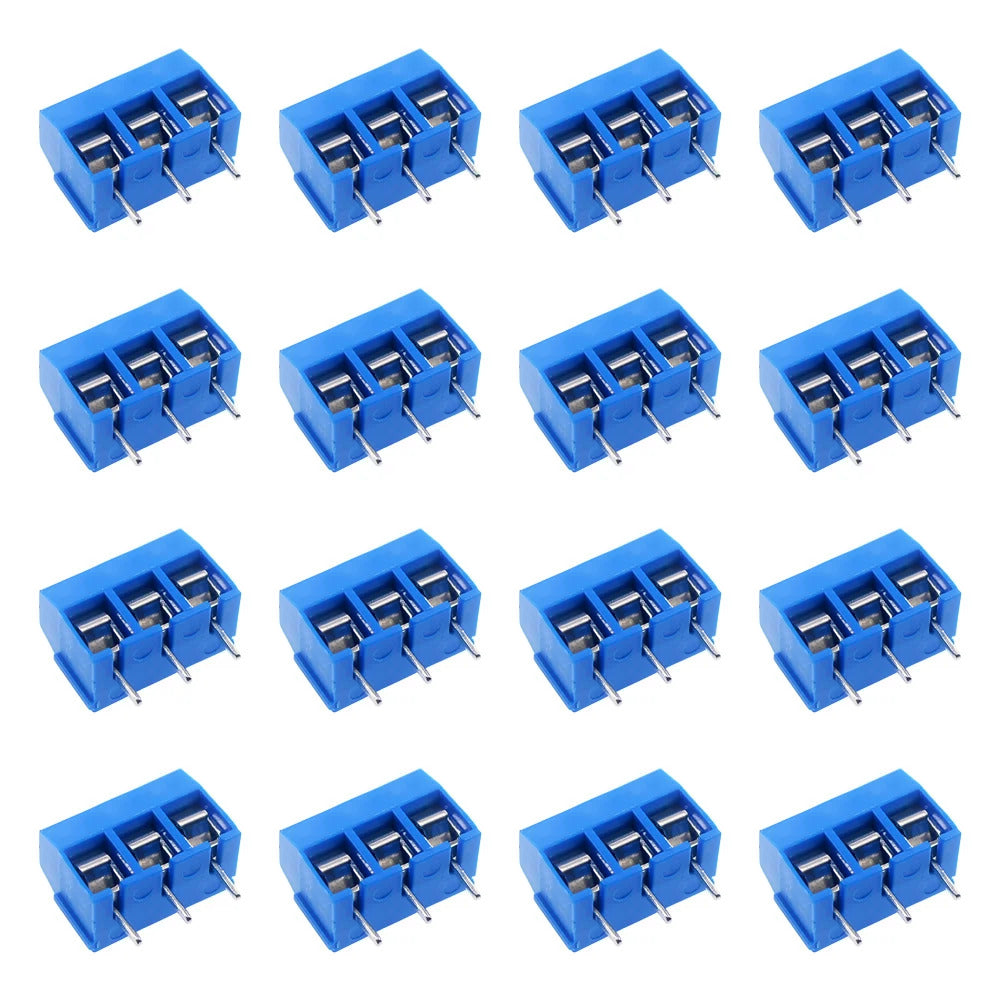

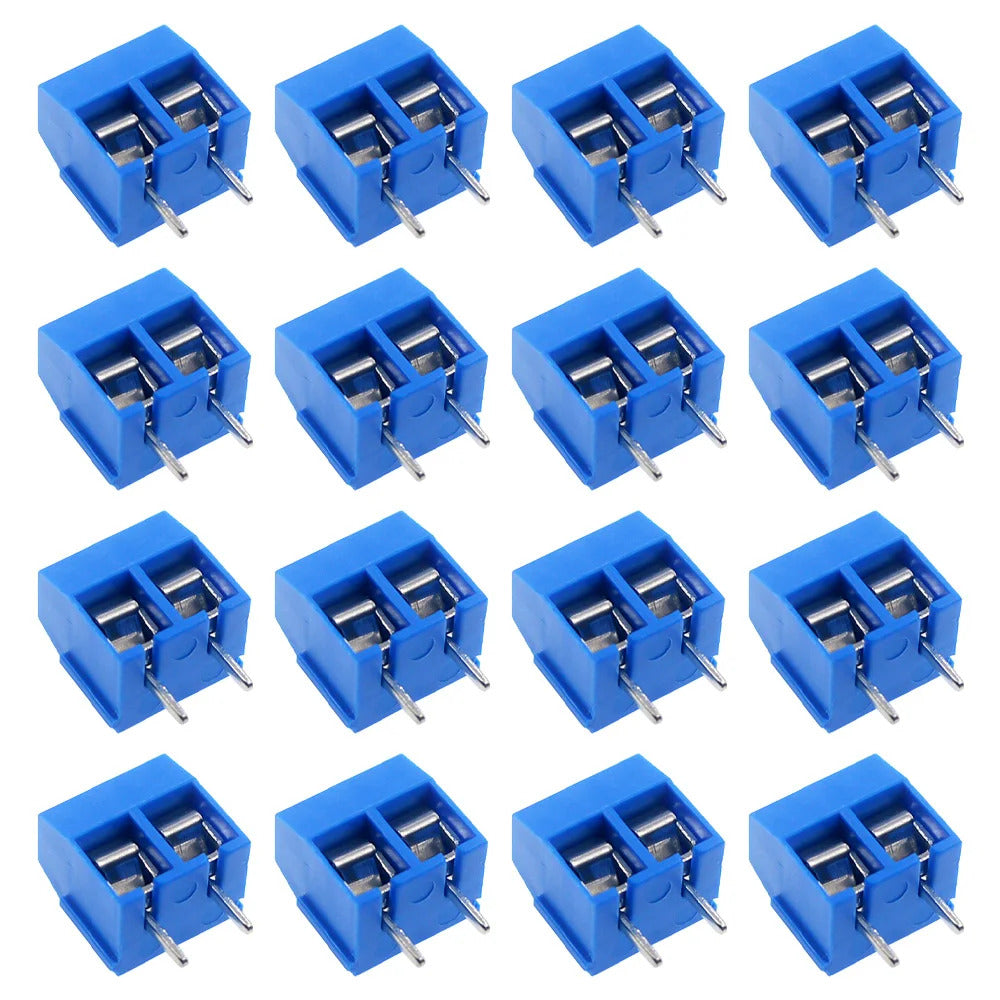

50 x 2 PIN & 3 PIN PCB SCREW TERMINAL BLOCK CONNECTOR

Material: Plastic

Pitch: 3.5mm

Poles: 2P 3P

Screws: M2.5 steel Zinc plated

Contact: phosphor bronze Ni plated

Pin header: Copper,Tin plated

Electrical

Rated voltage: 300V

Rated current: 10A

Contact resistance: 20mΩ

Insulation resistance: 5000MΩ/1000V

Withstanding Voltage: AC1500V/1Min

Wire range: 22-14AWG/2.5mm⊃2;

Mechanical

Temp.Range: -30°C~+120°C

MAX Soldering: +250°C for 5 Sec.

Torque: 0.5Nm(3.6lb.in)
