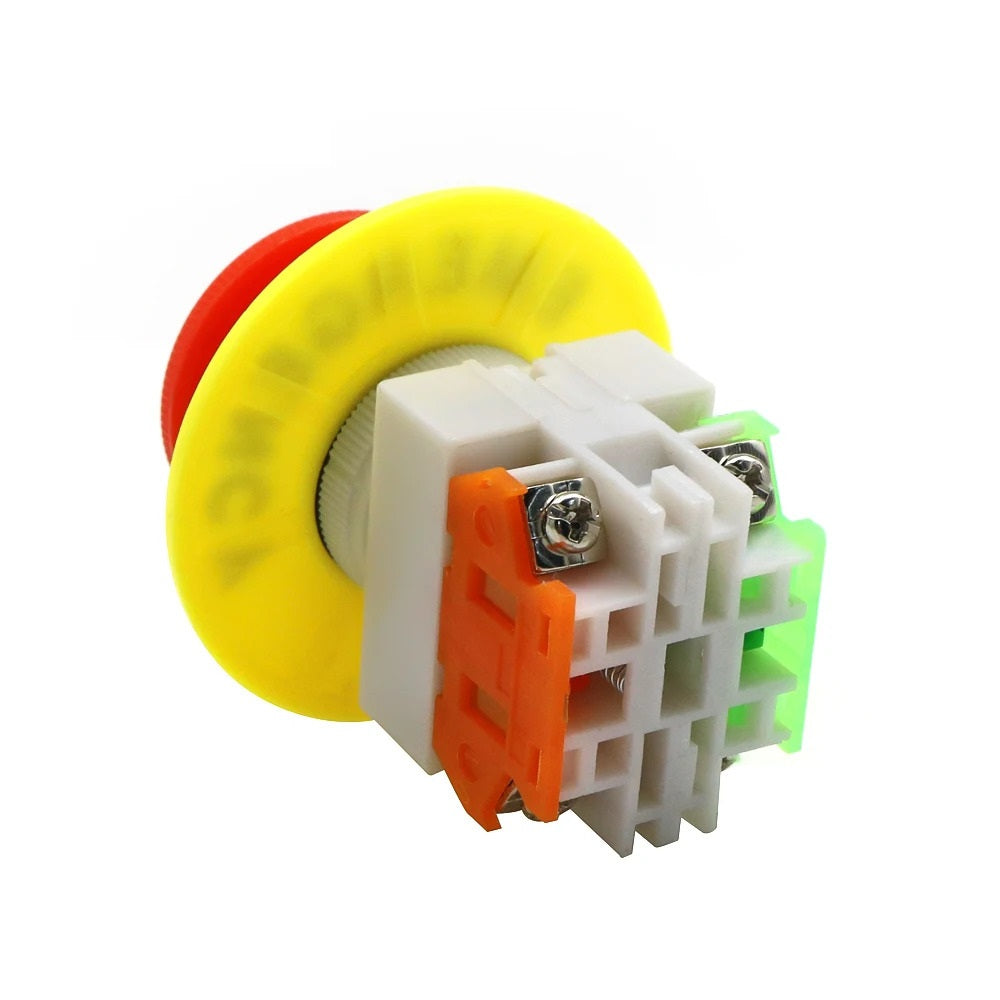

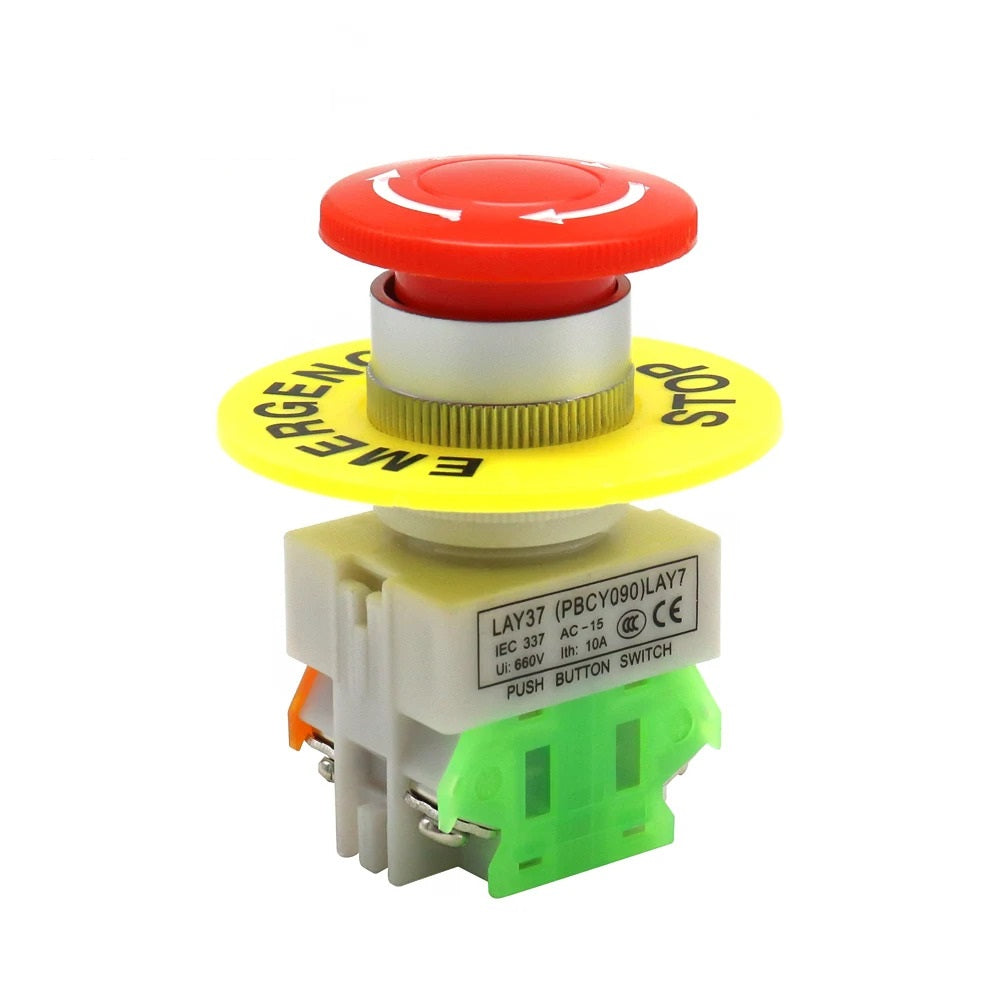

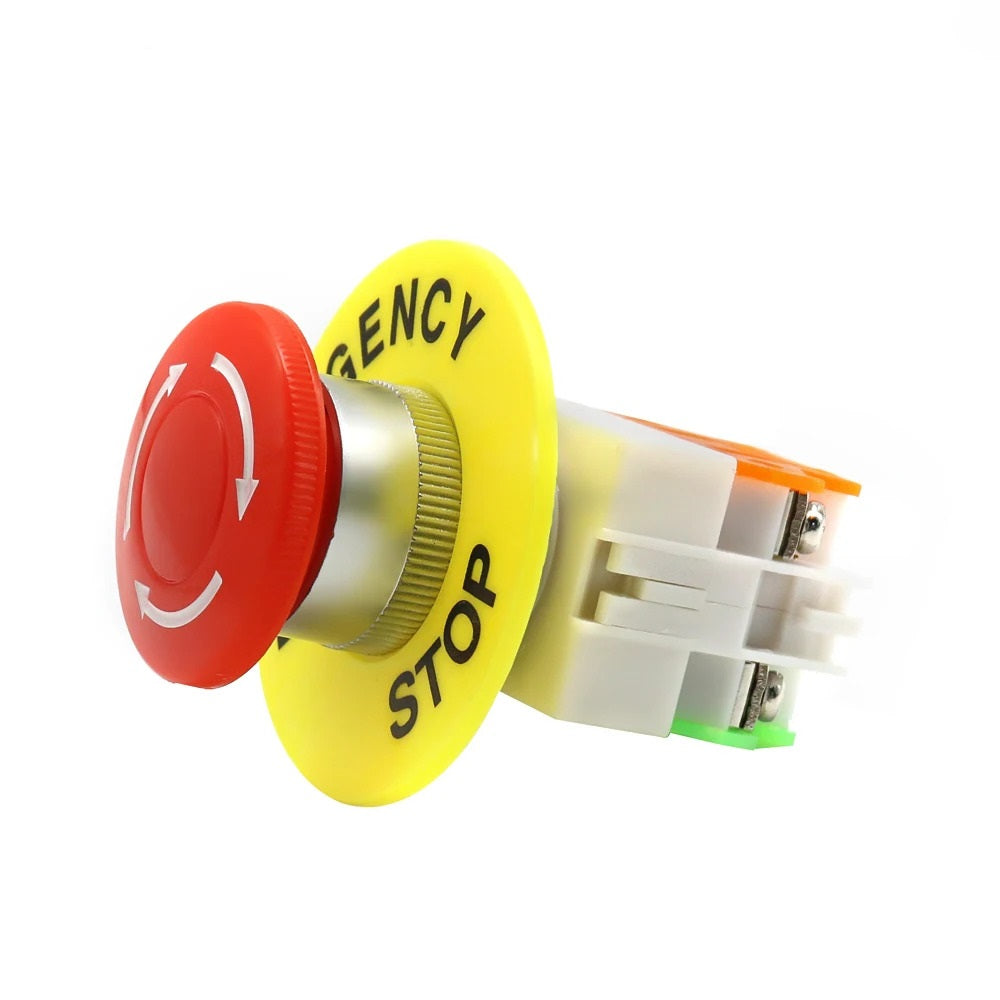

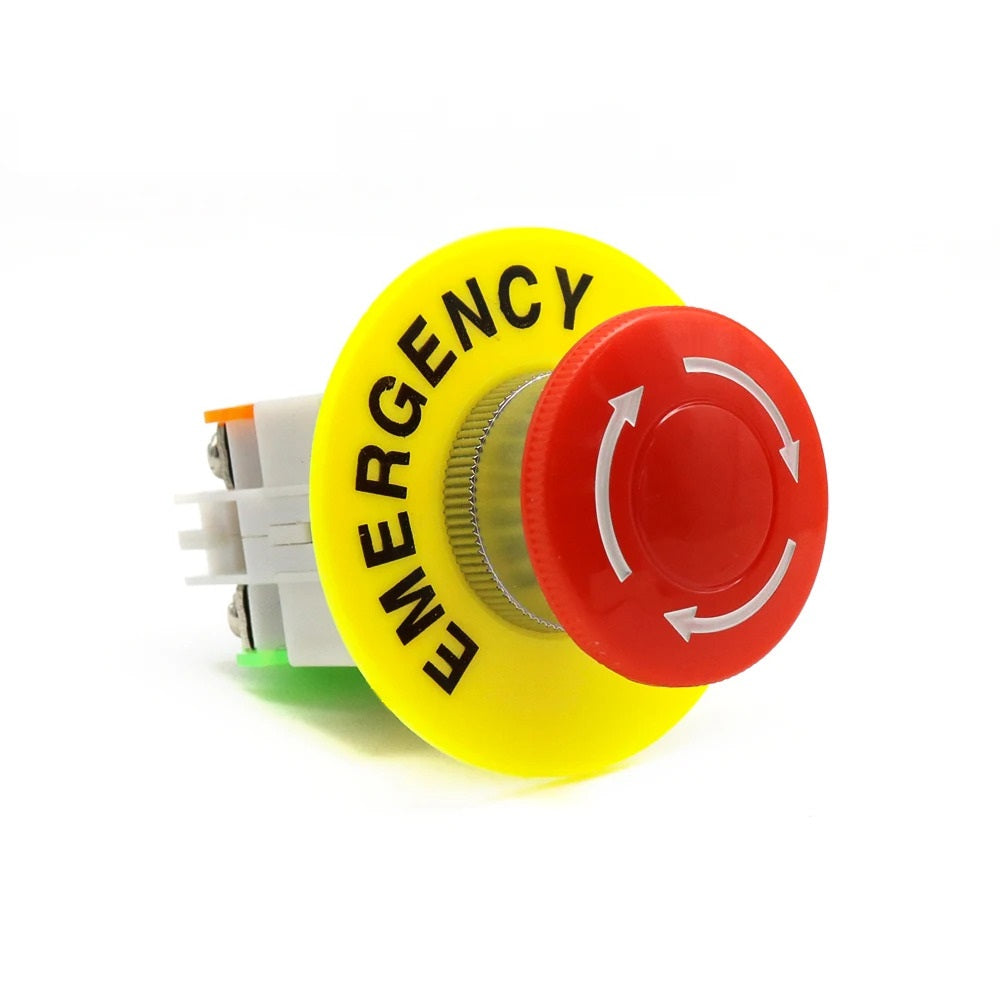

EMERGENCY STOP BUTTON

Product Name : Push Button Switch;

Action Type : Latching;

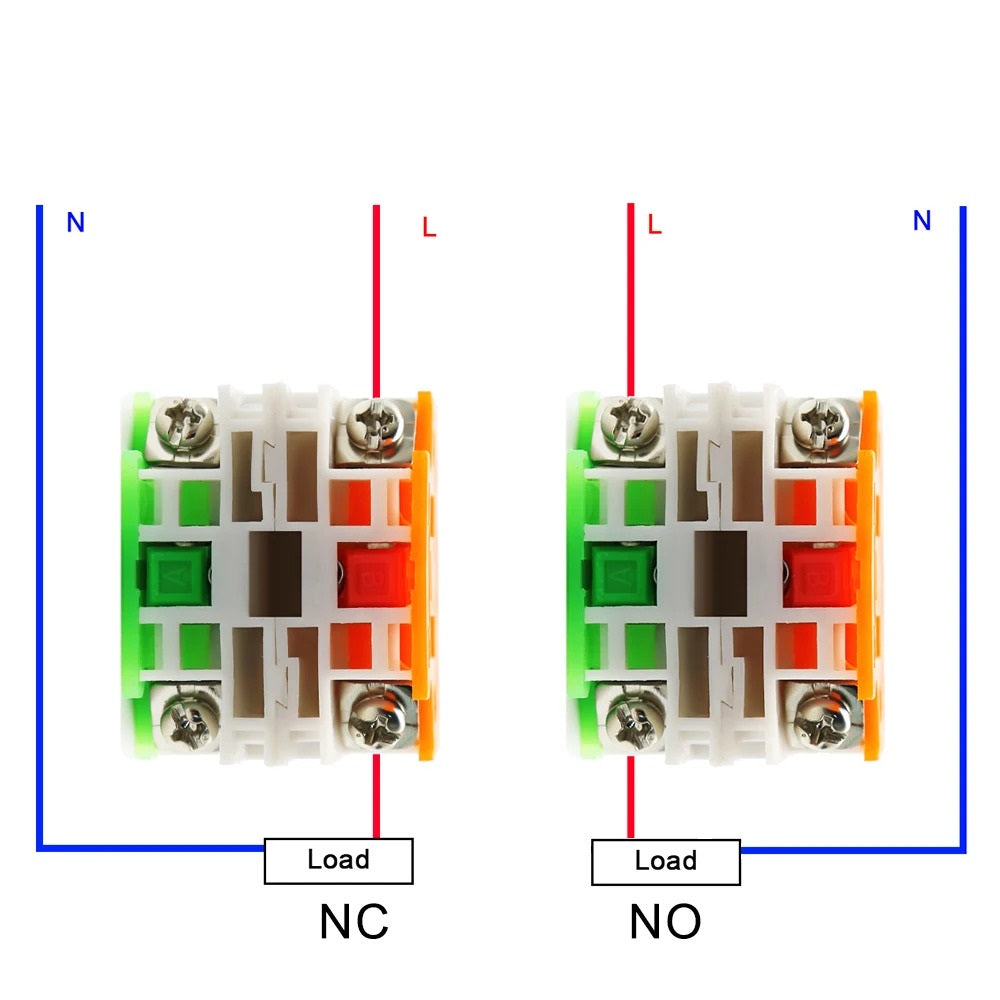

Contact Type : 1 NO + 1 NC;

Poles : DPST
Ui : 660V;Ith : 10A;Terminals : 4 Pins
Button Diameter : 40mm/ 1.6";

Mount Hole Diameter : 22mm / 7/8";

Fit Panel Thickness(adjustable) : 6mm / 15/64"(max.)

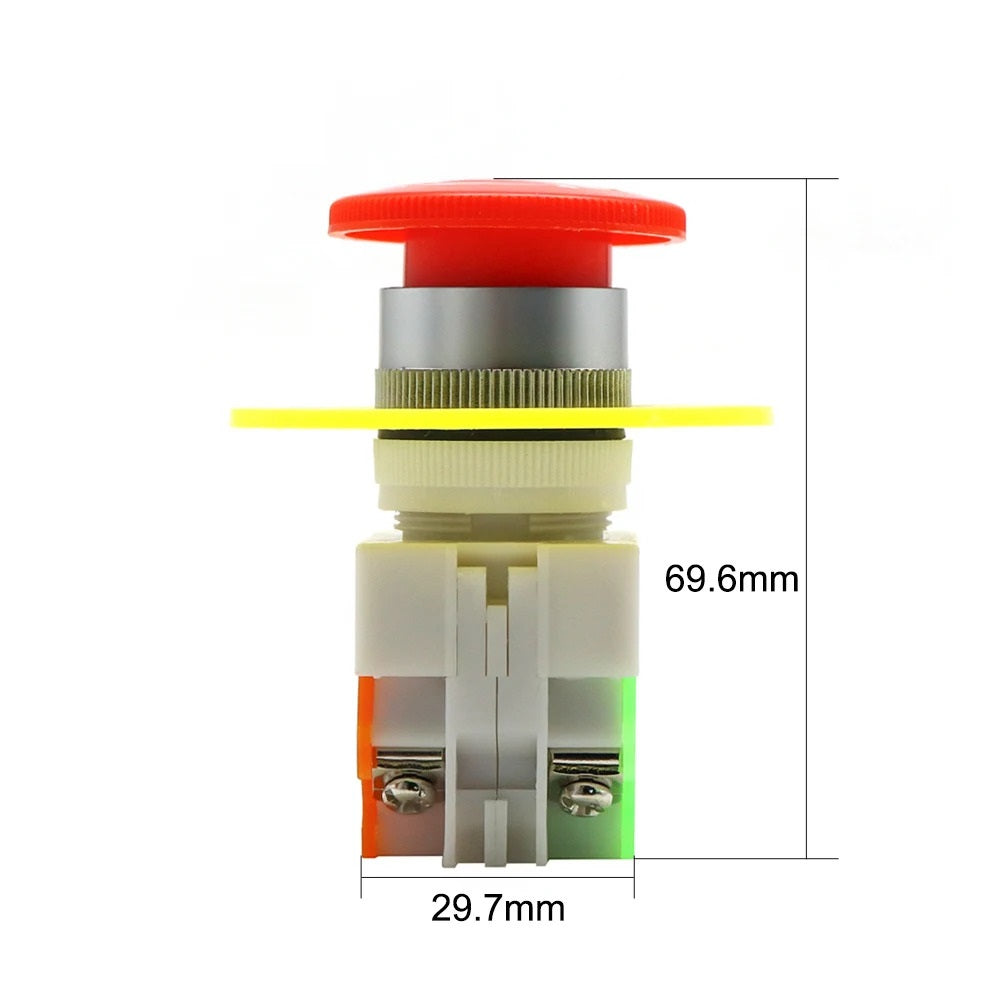

Size : 60 x 70mm/ 2.4" x 2.8" (Max.D*H);

Cap Lamp : Red;

Material : Plastic, Metal
Colour : As Picture Shown;

Weight : 46g;

Package Content : 1 x Push Button Switch Red Mushroom Cap 1NO 1NC DPST Emergency Stop Push Button Switch AC 660V 10A

* Features: 4 terminals, 22mm mounting hole, 1NO+1NC contact type, red mushroom emergency stop latching push button switch with yellow cap.

* Used widely to control the electromagnetic starter, contactor, relay and other automatic control electric circuits.
