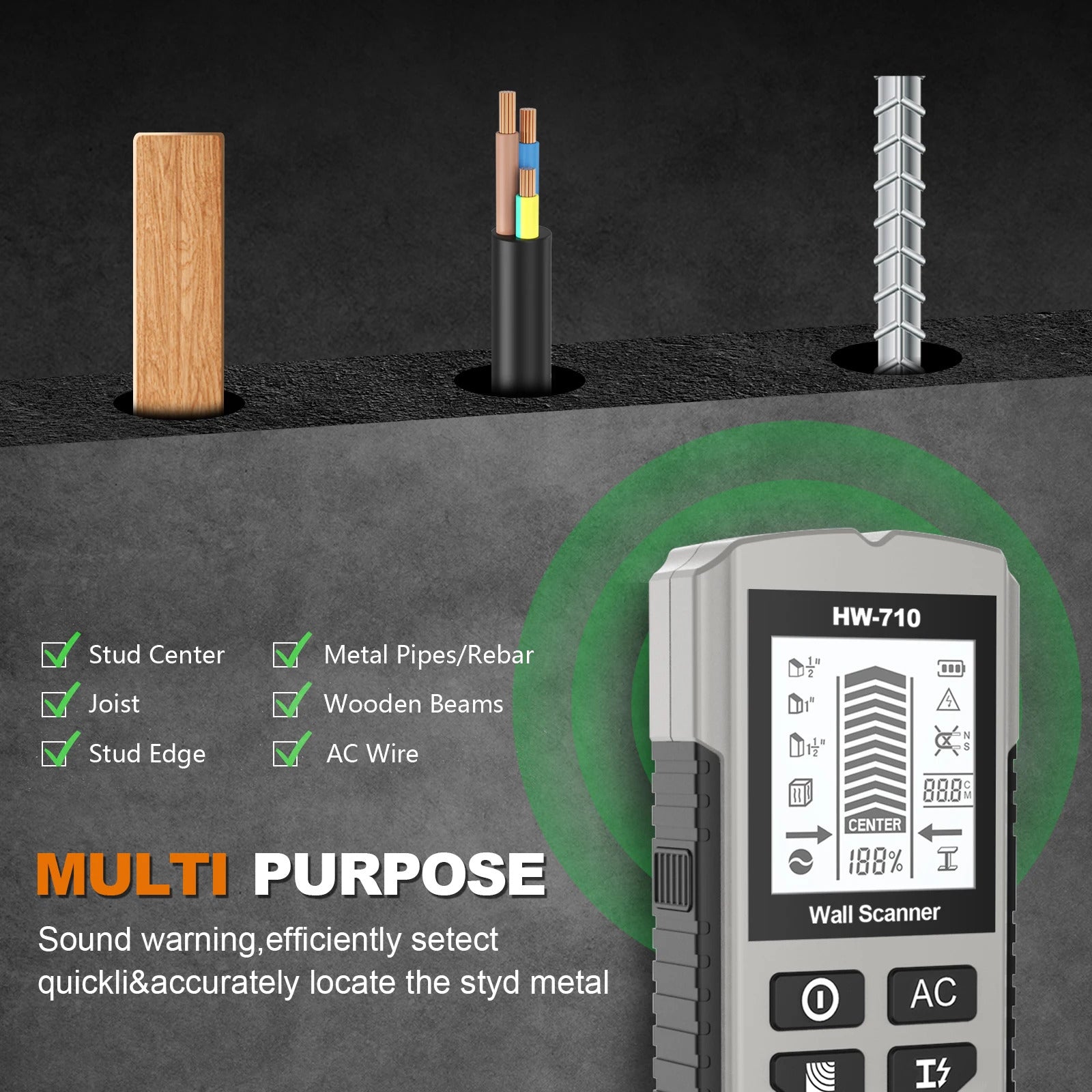

·1/2" Stud Scan Mode: Detects wood or metal studs up to 13mm deep
·1" Stud Scan Mode: Detects wood or metal studs up to 25mm deep
·1 1/2" Stud Scan Mode: Detects wood or metal studs up to 38mm deep
·Metal Mode: Detects metal up to 80mm for magnetic(60mm for non-magnetic)
deep
·AC Mode: Detects live unshielded AC wires up to 51mm deep

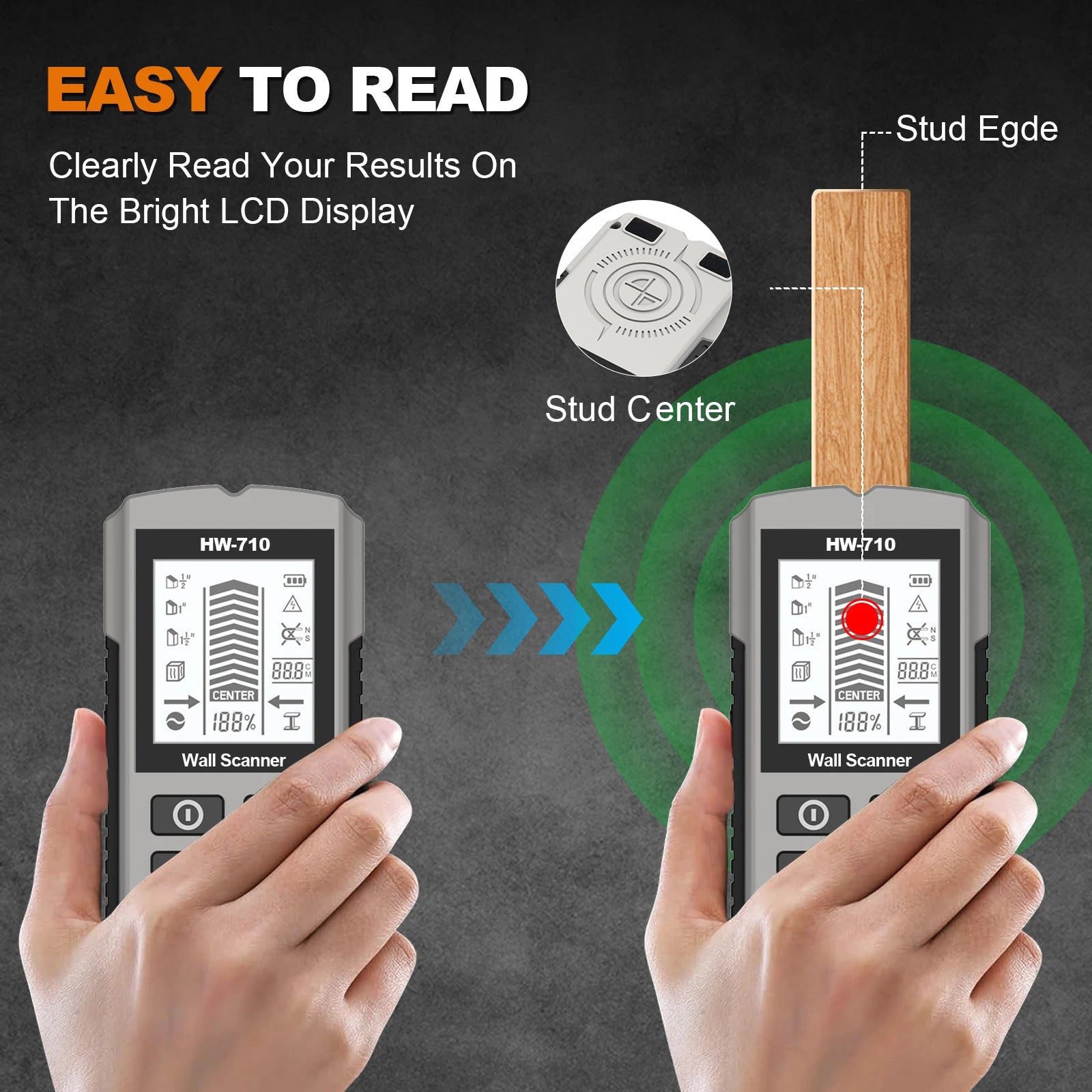

·Metal Depth Indicator
·Green Backlight
.Low Voltage Indicator
·Battery Type: 9V battery(6F22) (not included)
·Operating Current: <50ma
·Shutdown Current: <10UA
·Automatic Shutdown Time: 3 minutes

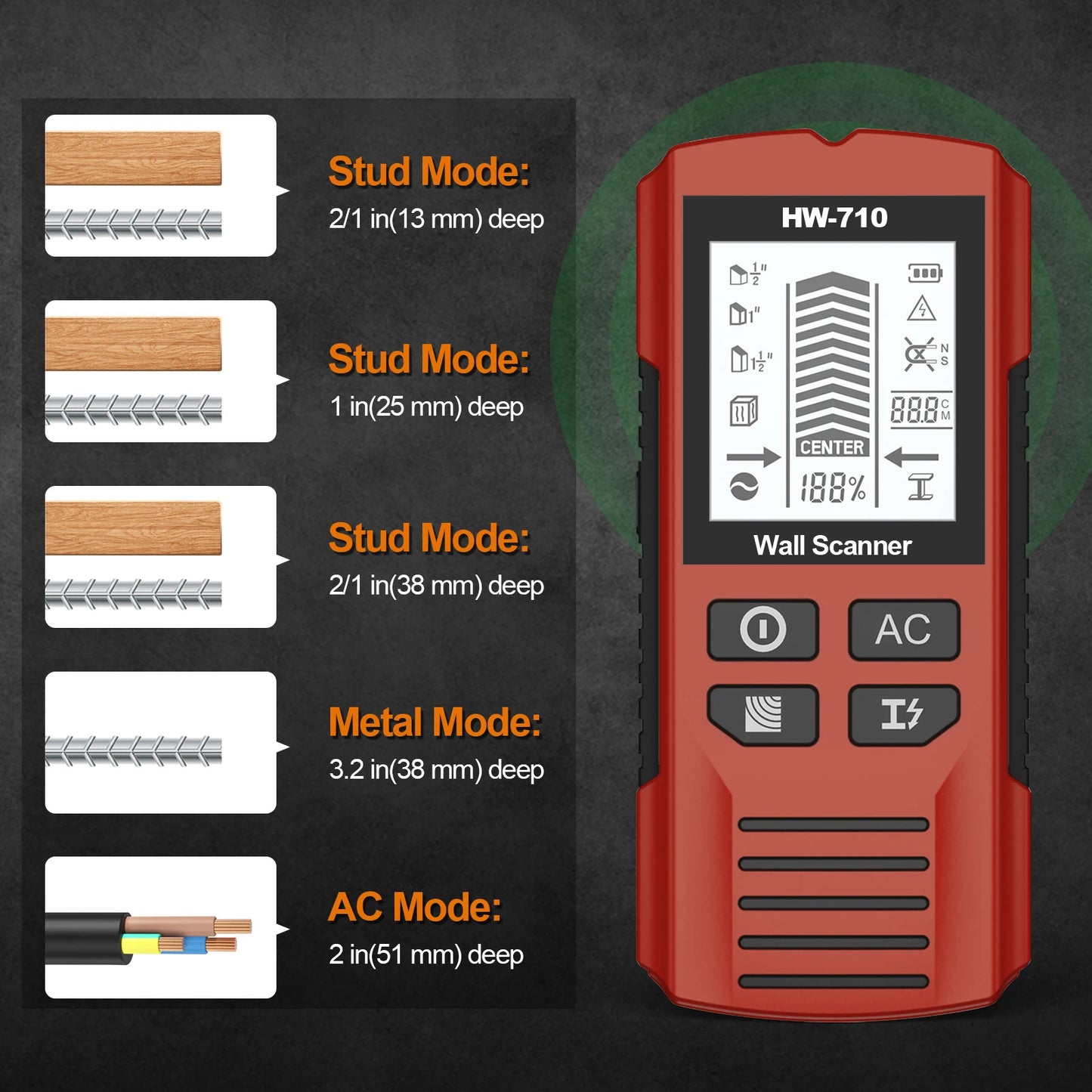

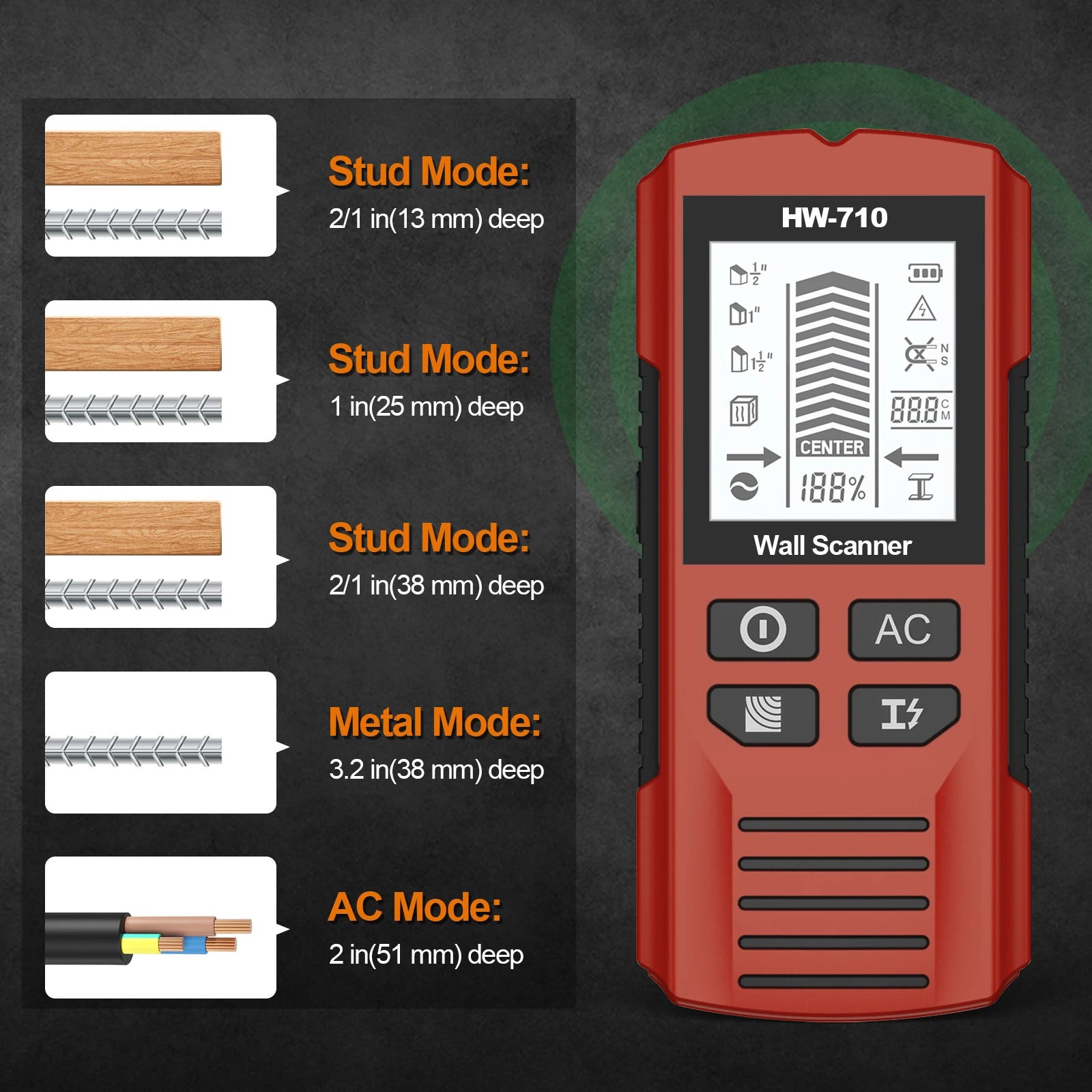

1.Detection Mode Selection
Stud Mode:
In stud mode, there are 3 scan modes o choose for properly thick of the
scanning surface:
1/2"Scan Mode can detect 1/2 in. (13mn) deep.
1"Scan Mode can detect 1 in. (25mm)deep.
1 1/2"Scan Mode can detect 1 1/2 in.(38mm) deep.
If you don't know the depth of the detection, it is recommended to use
1/2"scan mode first. When 1/2"scan mode is not detected, use 1"or 1
1/2"scan mode instead.
Metal Mode:
The detection of magnetic metal can be as deep as 3.2 in. (80mm)(diameter
15mm galvanised steel tube)
It can detect non-magnetic metals up tc 2.4 in. (60mm) (diameter 13mm
copper tube).
AC Mode:
Detect unshielded AC live wire up to 2 in. (51mm) deep.
Colour sent at random
