Input Voltage: DC 12V/DC 24V Max Load Current: 3A

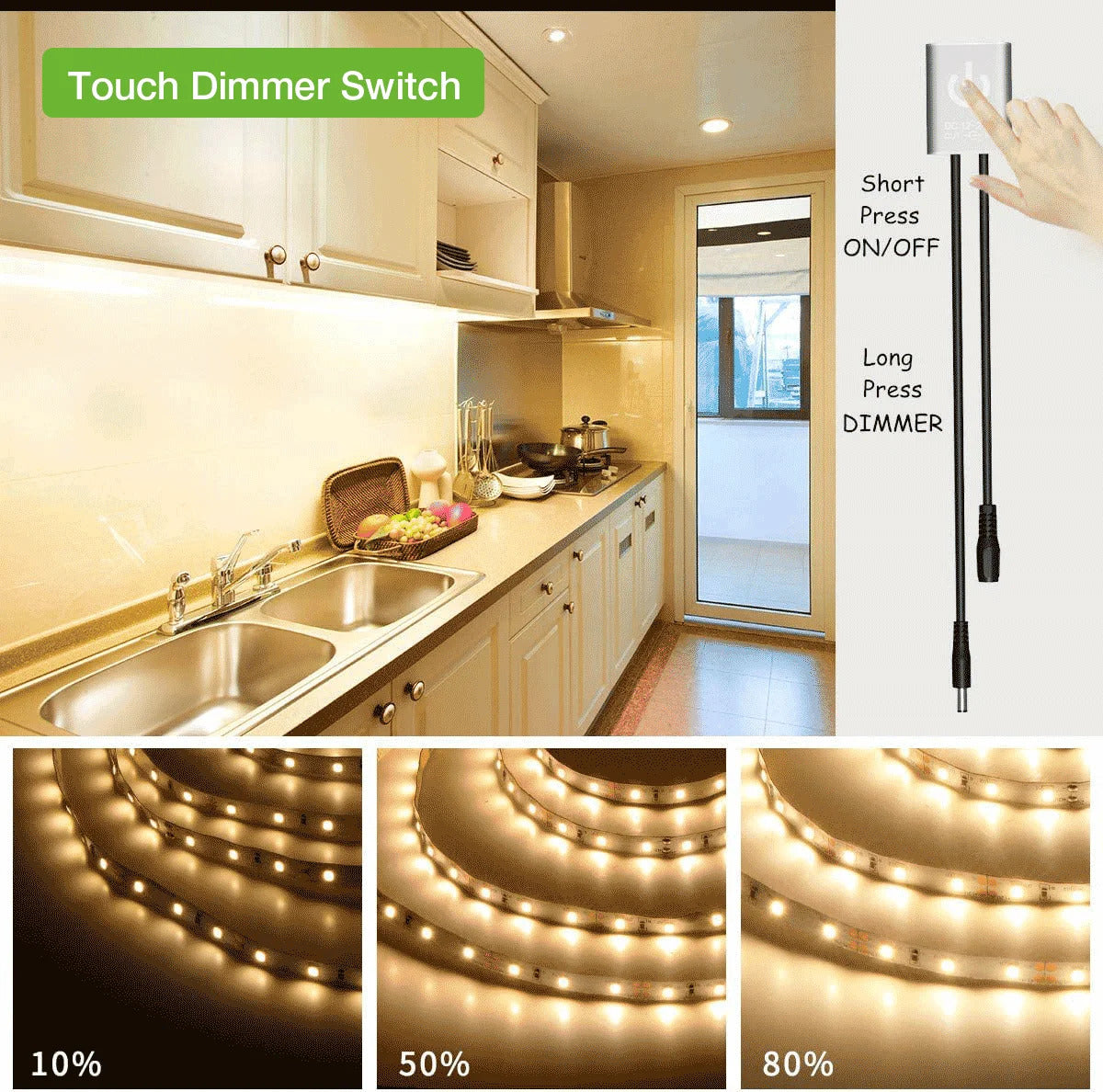

Touch Dimmer Switch: Long touch item, when the touch time is more than 5 seconds, it is
dimming function, the brightness will be raised to the highest or dropped to the lowest.
Touch Switch ON/OFF: Short touch items with fingers, touch time less than 5 seconds,
it is on/off switch function for led light.
Easy to Install: The touch dimmer switch comes with adhesive tape for mounting the switch to any clean, flat surface.(Please don't stick on the place with metal)

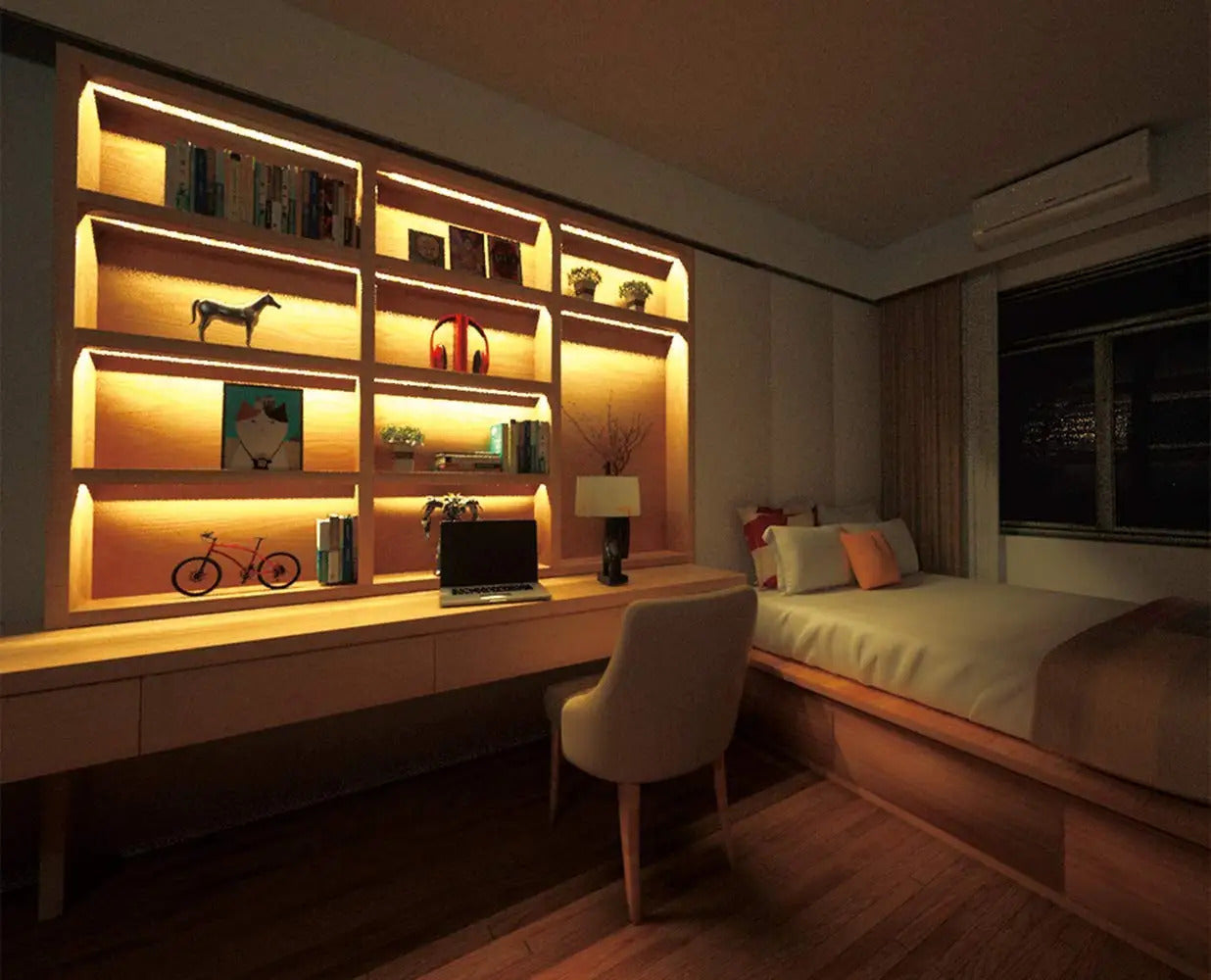

Widely Used: It directly can drive led lighting products, such as led cabinet lights, led rigid bar, led strips and led panel light.
Specifications:
Input Voltage: DC 12V /DC 24V
Output Voltage: DC 12V /DC 24V
Max Load Current: 3A
Connector: 5.5 x 2.1mm DC connector

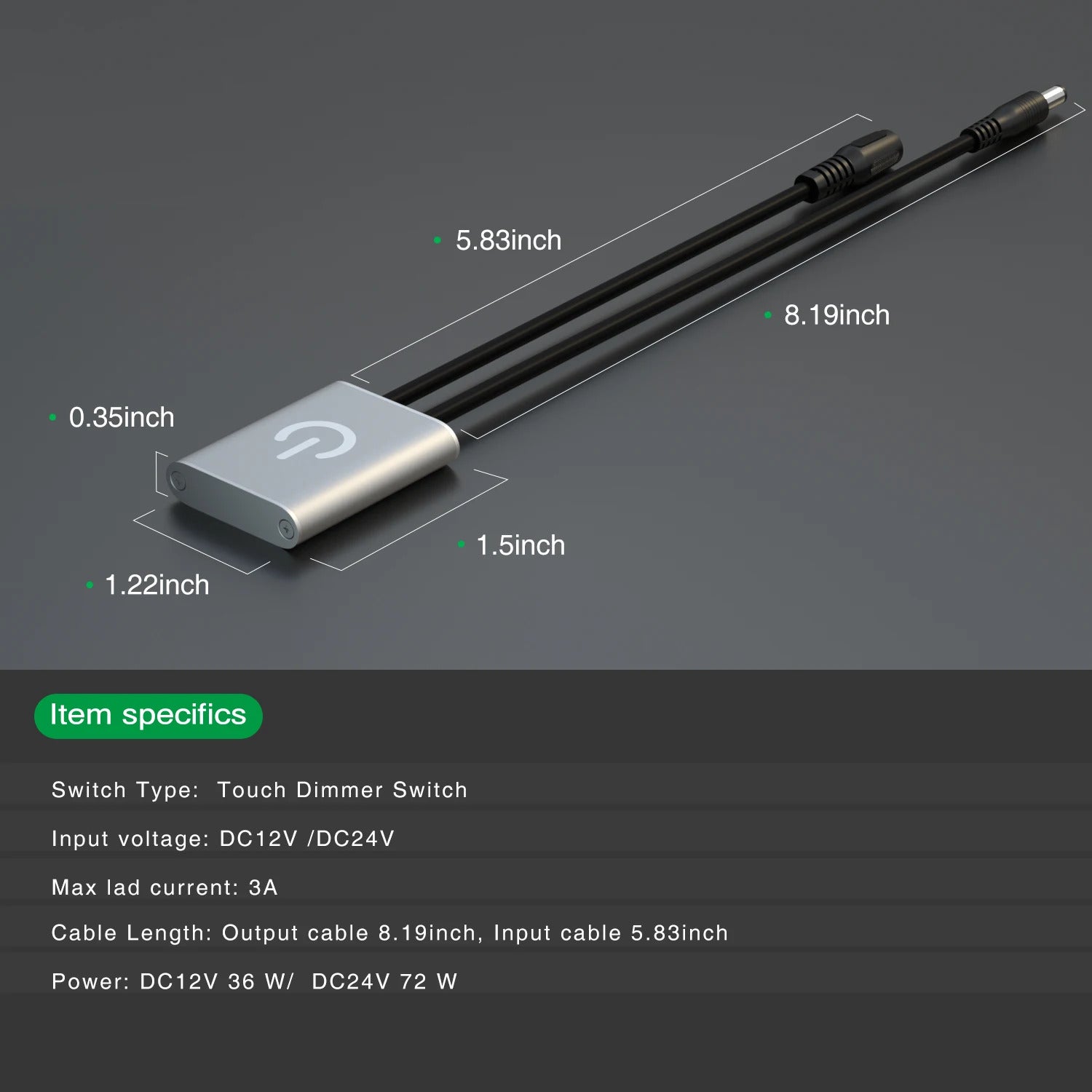

Cable Length: Input cable 5.83in, output cable 8.19in
Switch Type: Touch Dimmer Switch; Touch On/Off Switch
Features: Touch Switch
Material: Alloy
Instruction:
1. The finger touches dimmer metal body;
2. Short touch to turn on/off;
3. Keep touching to adjust the brightness, the brightness will be raise to the highest then fallen to the lowest.
Description:
Touch dimmer switch, It adopts capacitance touch technique; switch on/off and dimming
function can be realised by touching. It directly driven led lighting products, such as led
cabinet lights, led rigid bar, led strips and led panel light. It can also be used as on/off touch switch.
