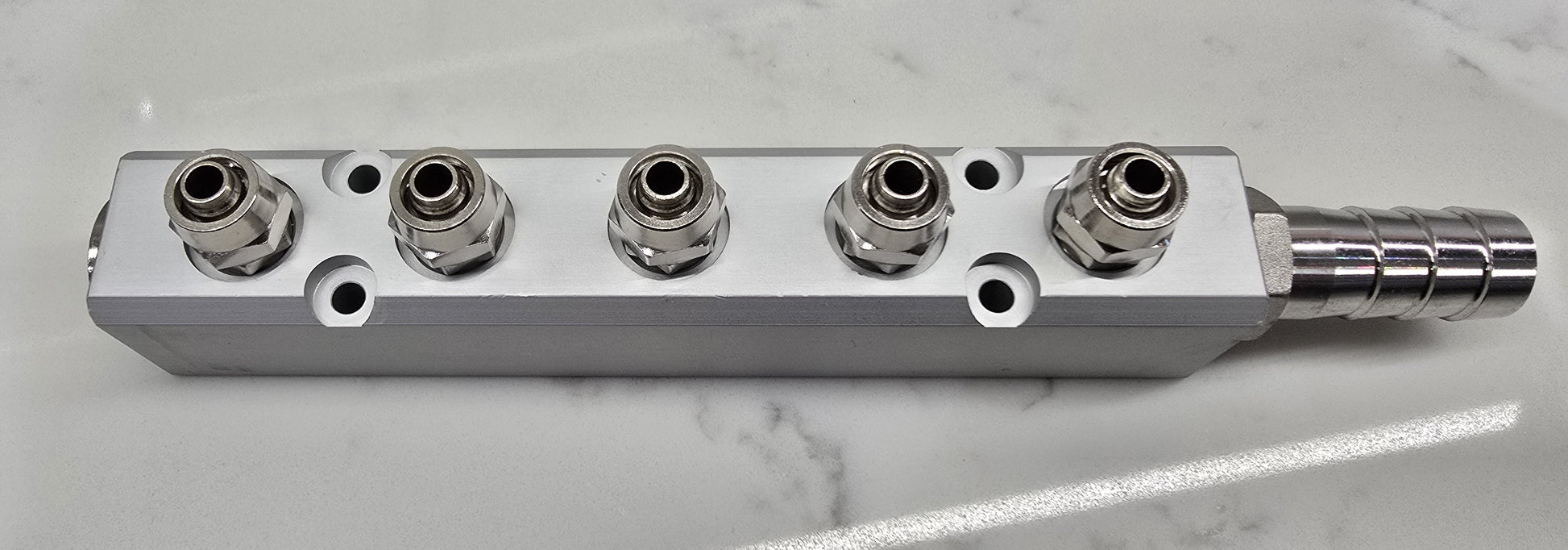

Manifold Air Distributor Block:-
Can be used for any pneumatic applications - We have built these for pond & aquarium use
For splitting air pumps or CO2
Can also be used for homebrew

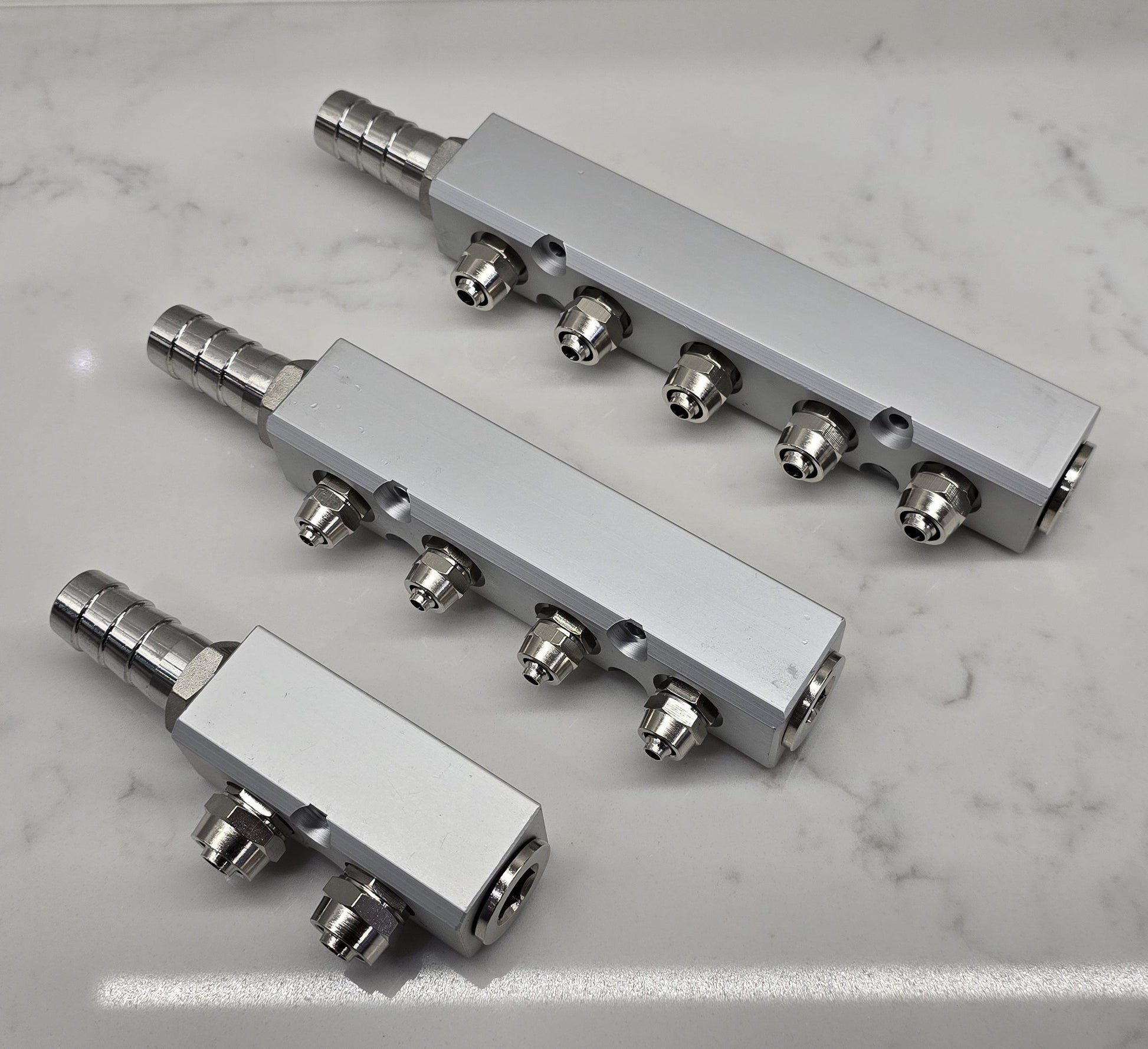

Available in:-

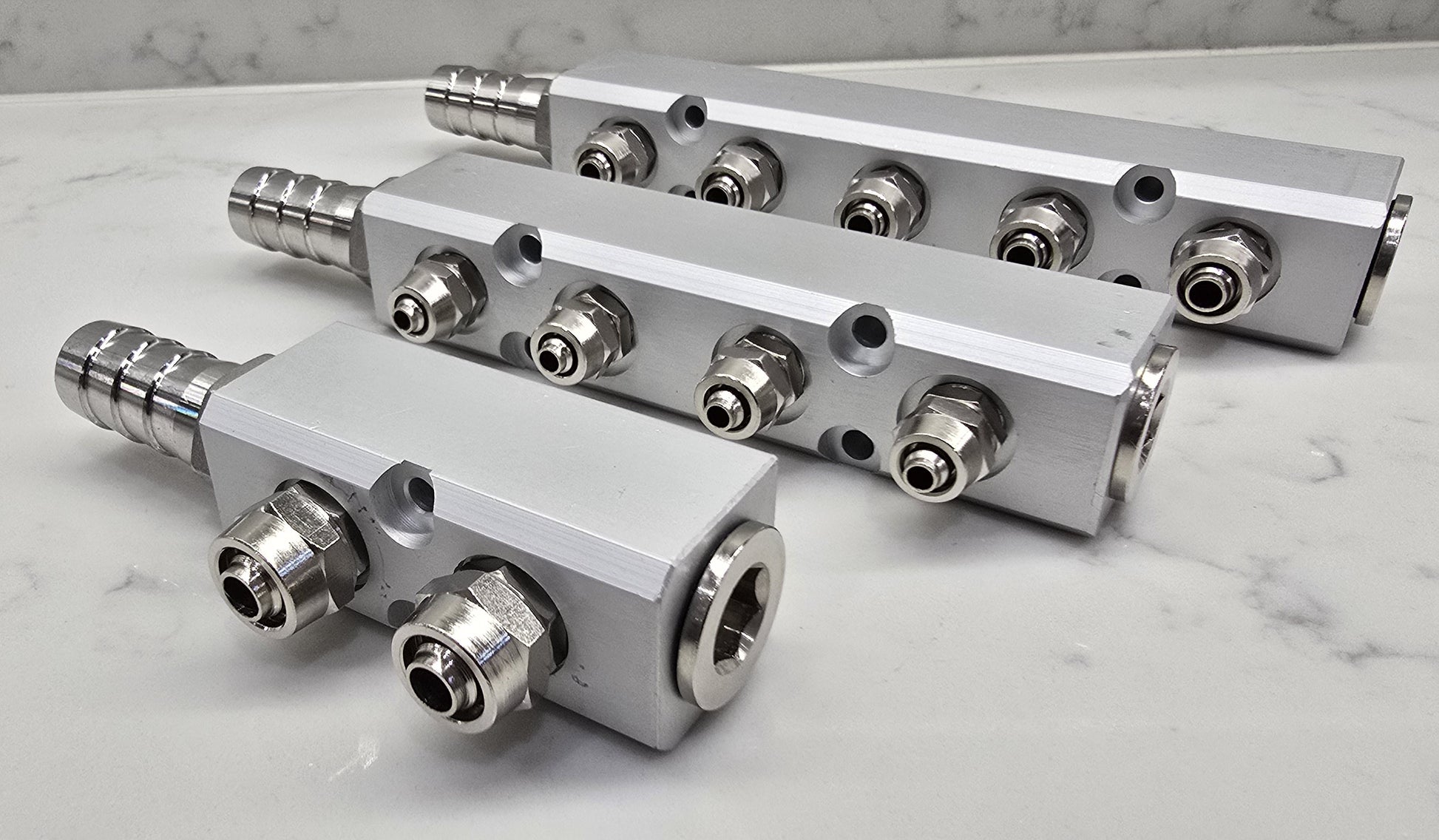

6 Way, 5 Way, 4 Way, 3 Way & 2 Way
Different Outlet options avaliable:- (To clamp hoses sizes O/D)
6mm, 8mm, 10mm & 12mm

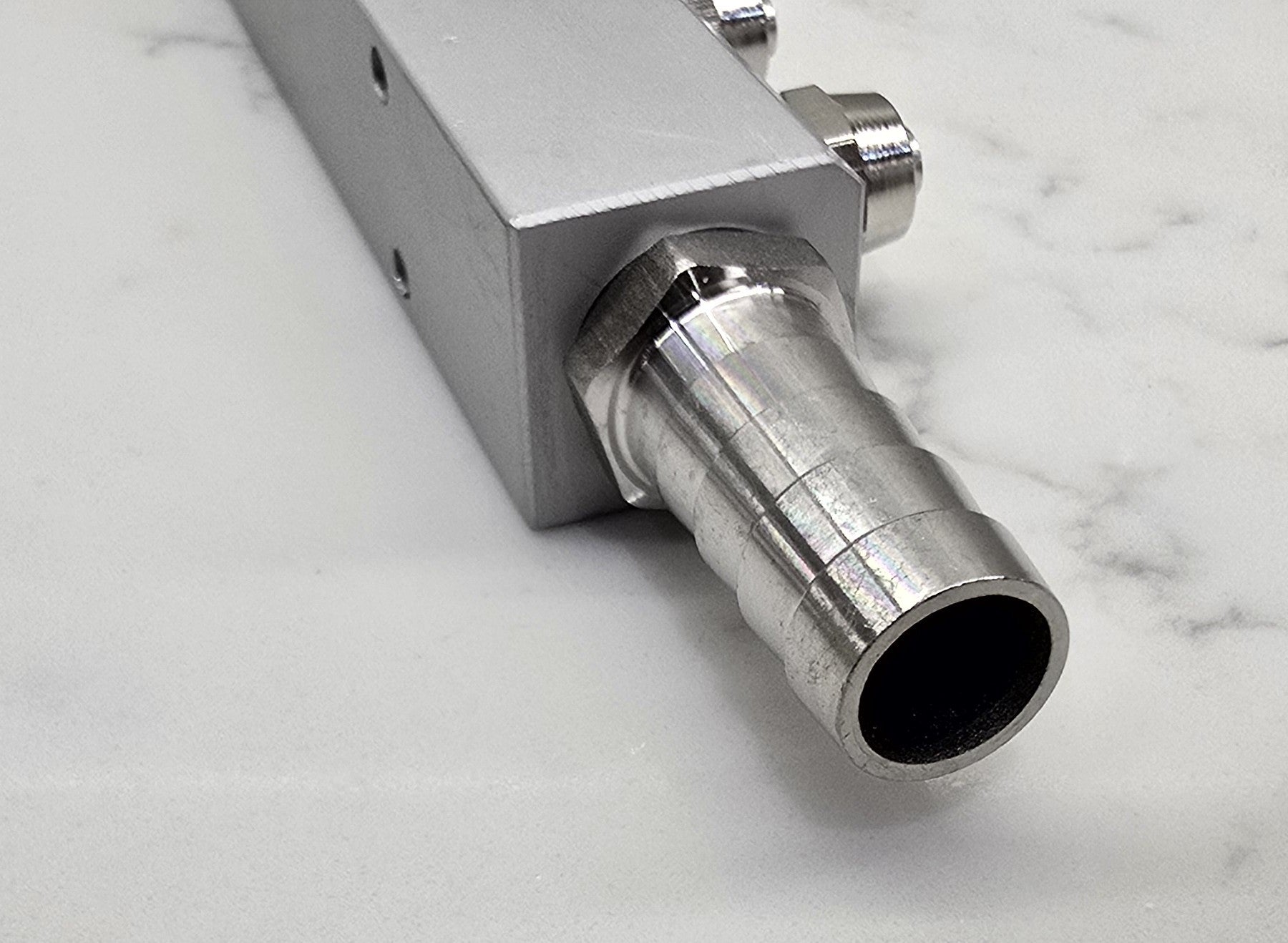

Inlet Spigot to fit 18mm I/D flexible hose

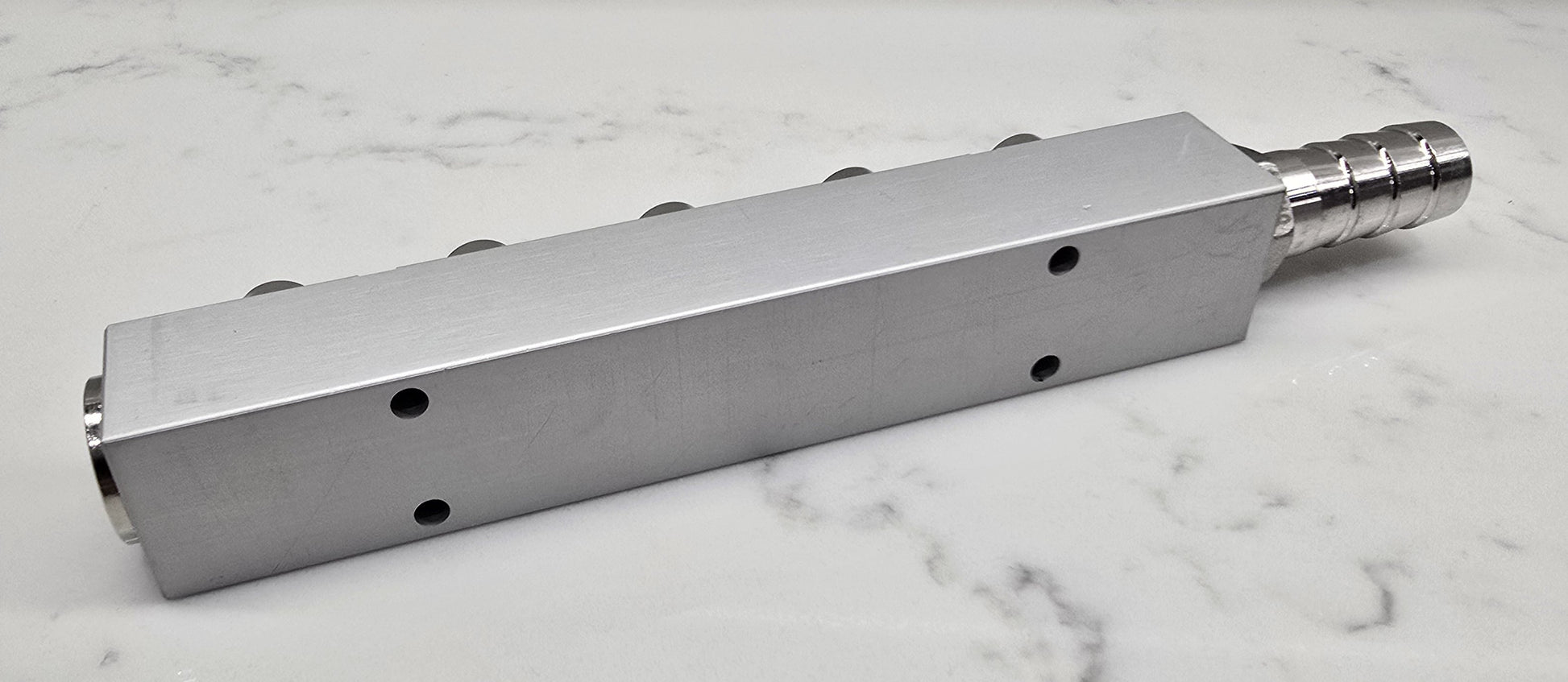

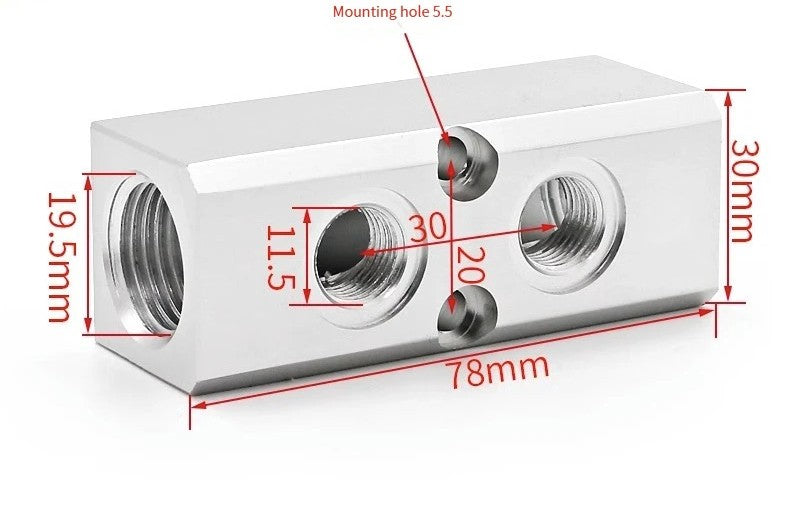

Mounting holes in manifold block

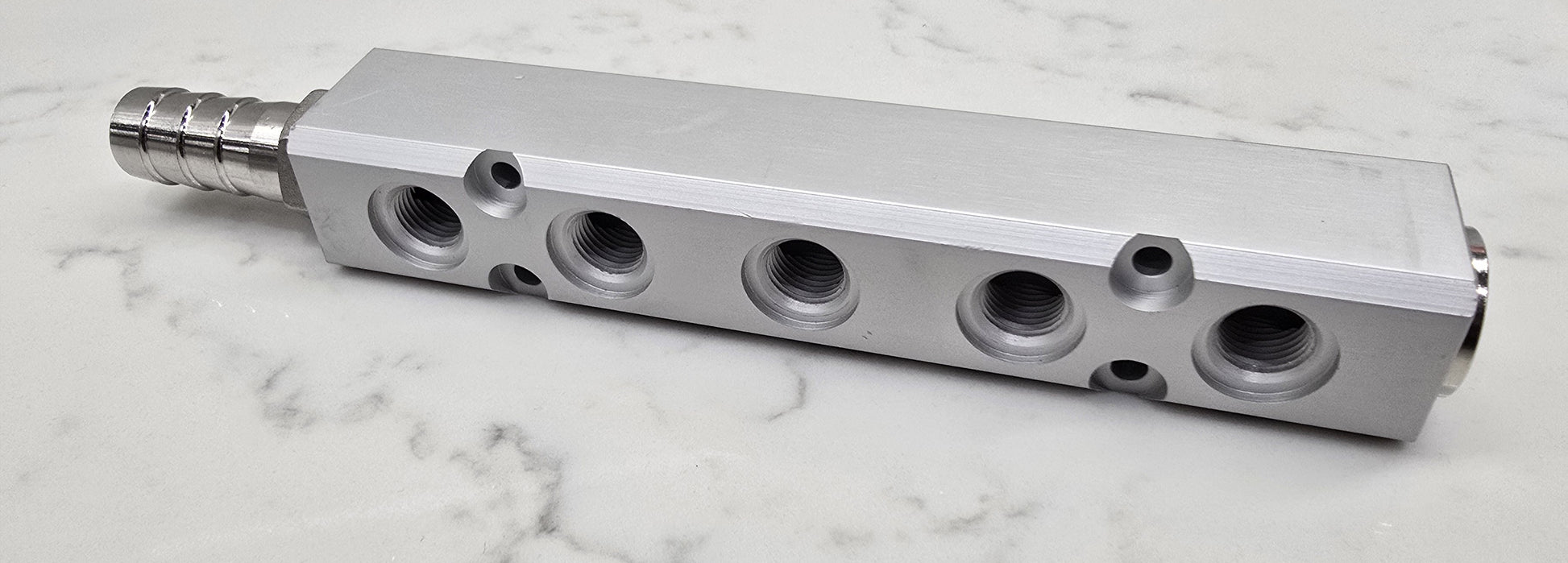

1/2" Side connections (Inlet and Blanked End) and 1/4" pipe connections
All hose barbs and side connections can be removed for cleaning if necessary

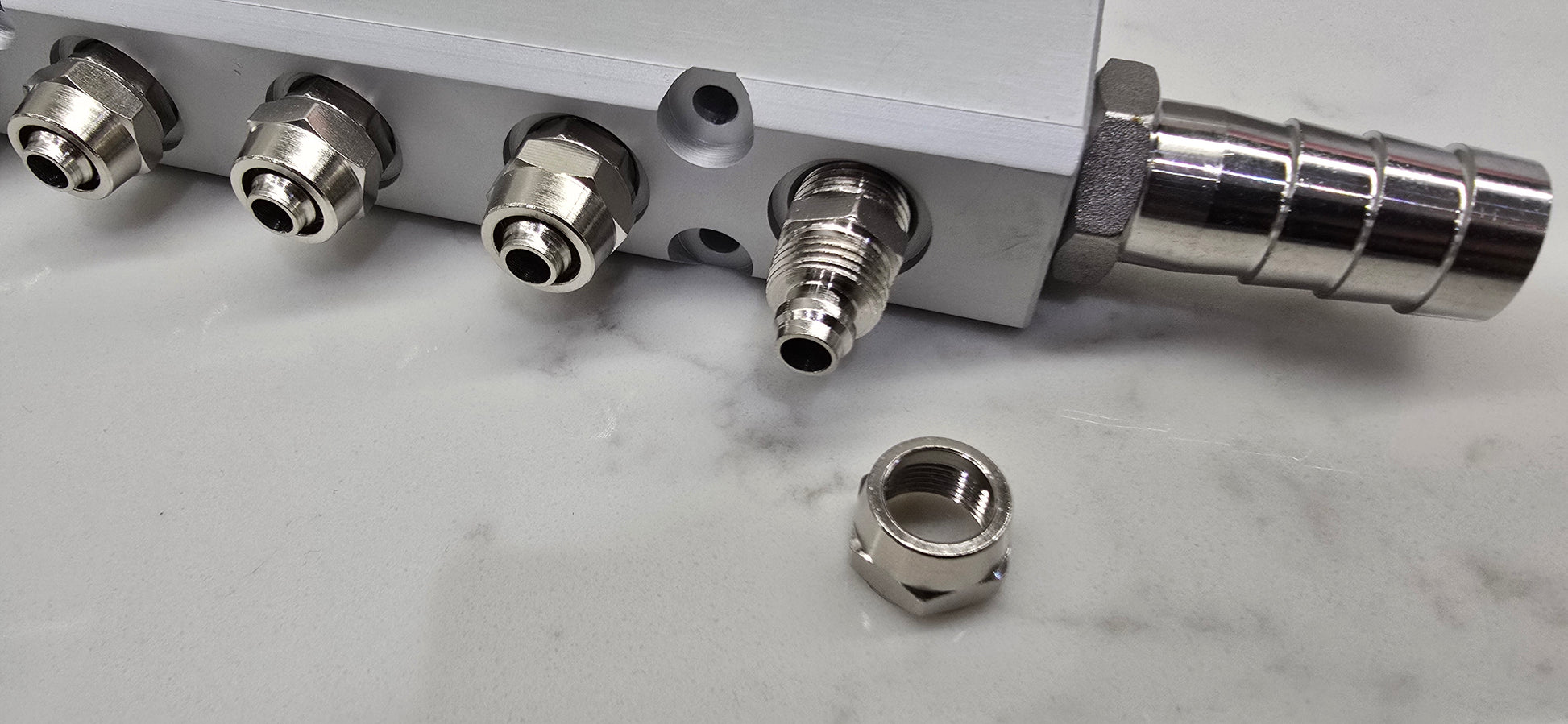

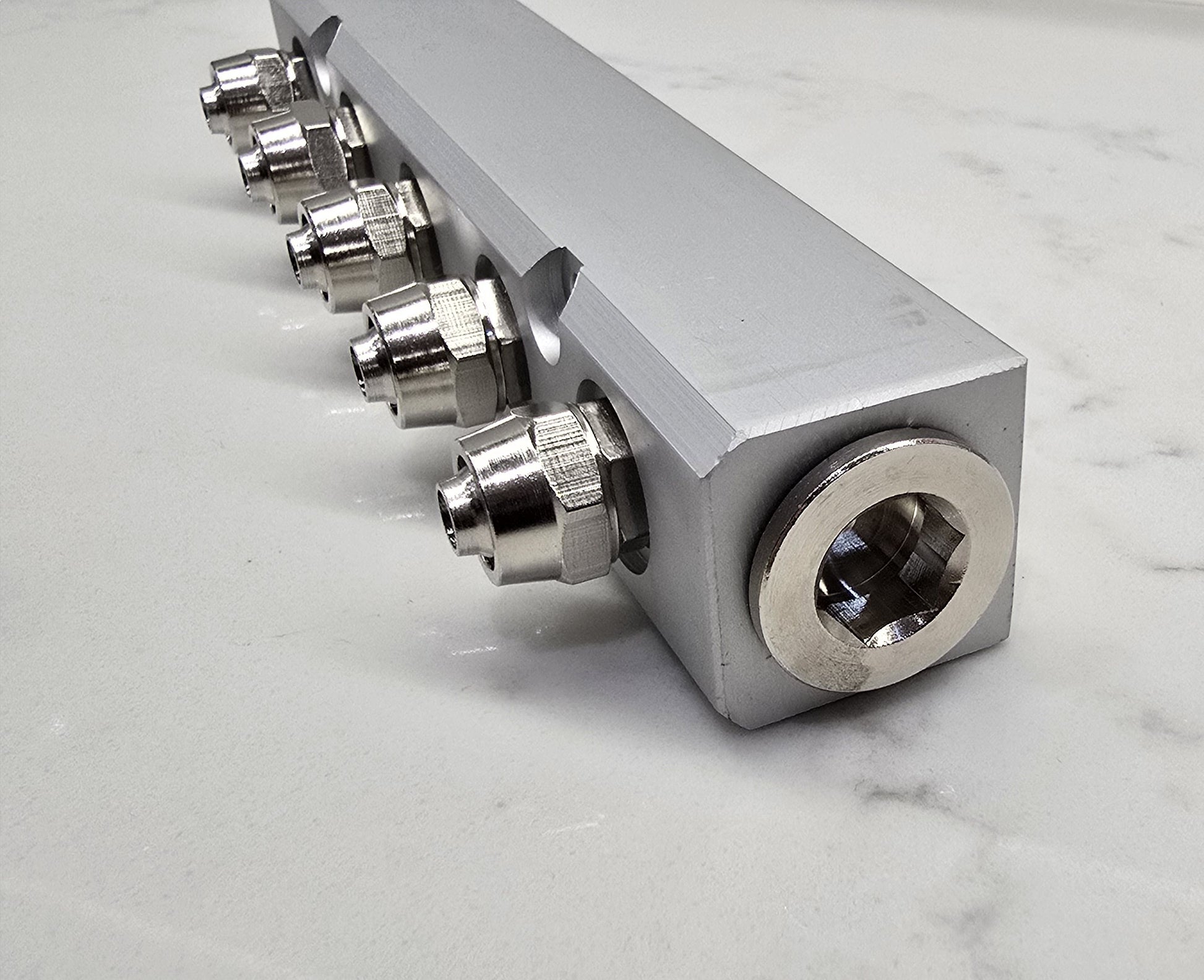

Barbs come with locking nuts for secure hose connections
Solid item and heavy duty.
All manifolds come complete and built. Extra PTFE tape may be required on the threaded fittings.
Sizes:

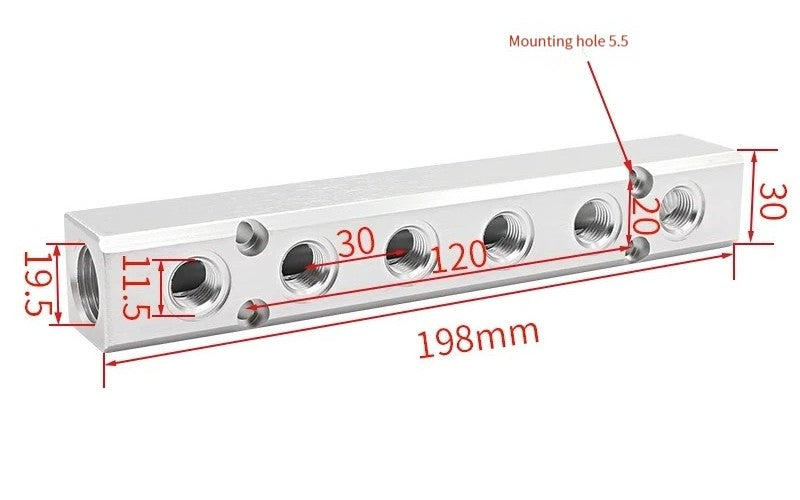

6 way - Total length with spigot 252mm x 30mm wide, hose connection sticks out 15mm

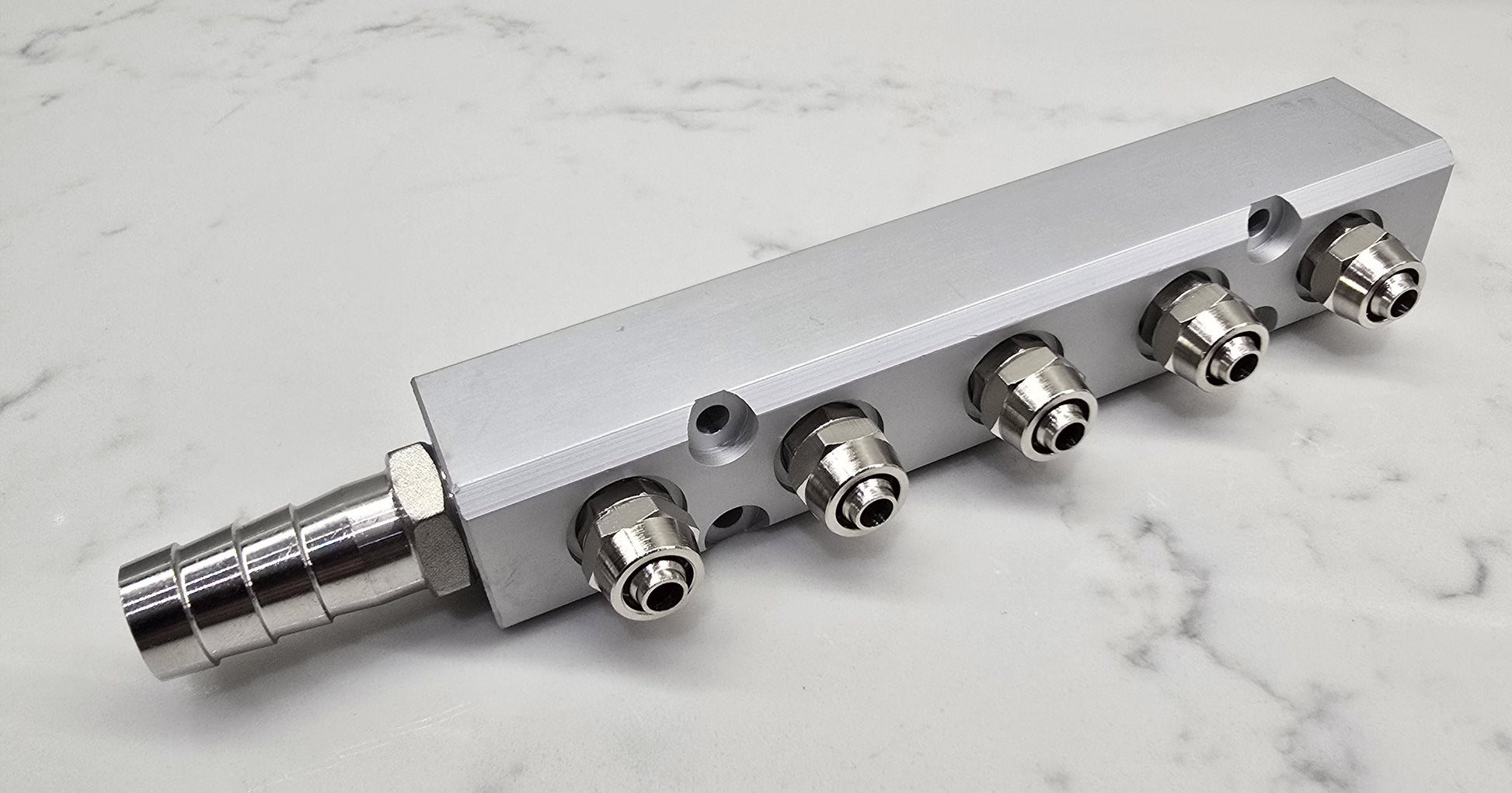

5 way - Total length with spigot 218mm x 30mm wide, hose connection sticks out 15mm
4 way - Total length with spigot 186mm x 30mm wide, hose connection sticks out 15mm
3 way - Total length with spigot 155mm x 30mm wide, hose connection sticks out 15mm
2 way - Total length with spigot 123mm x 30mm wide, hose connection sticks out 15mm
ALL SIZES ARE APPROX
