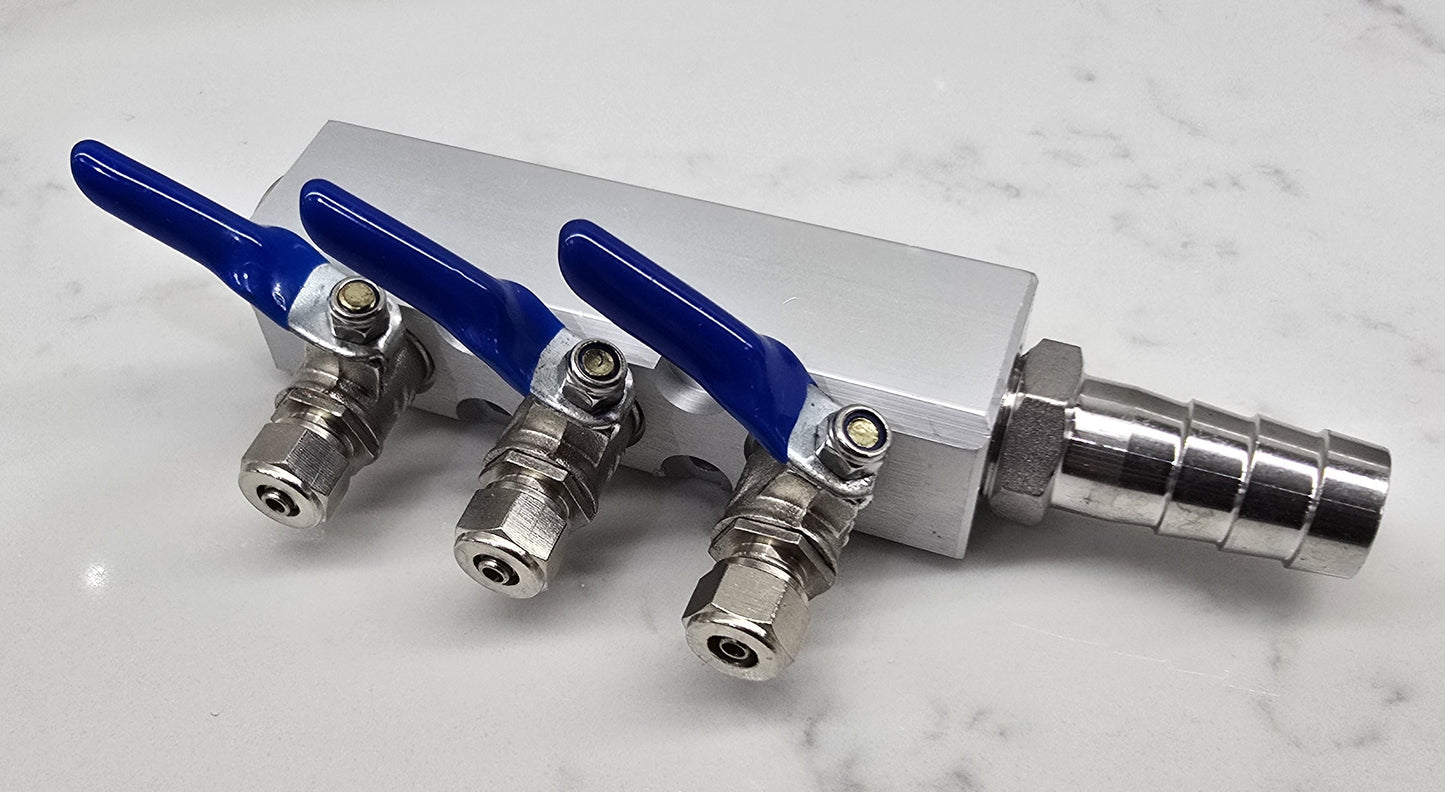

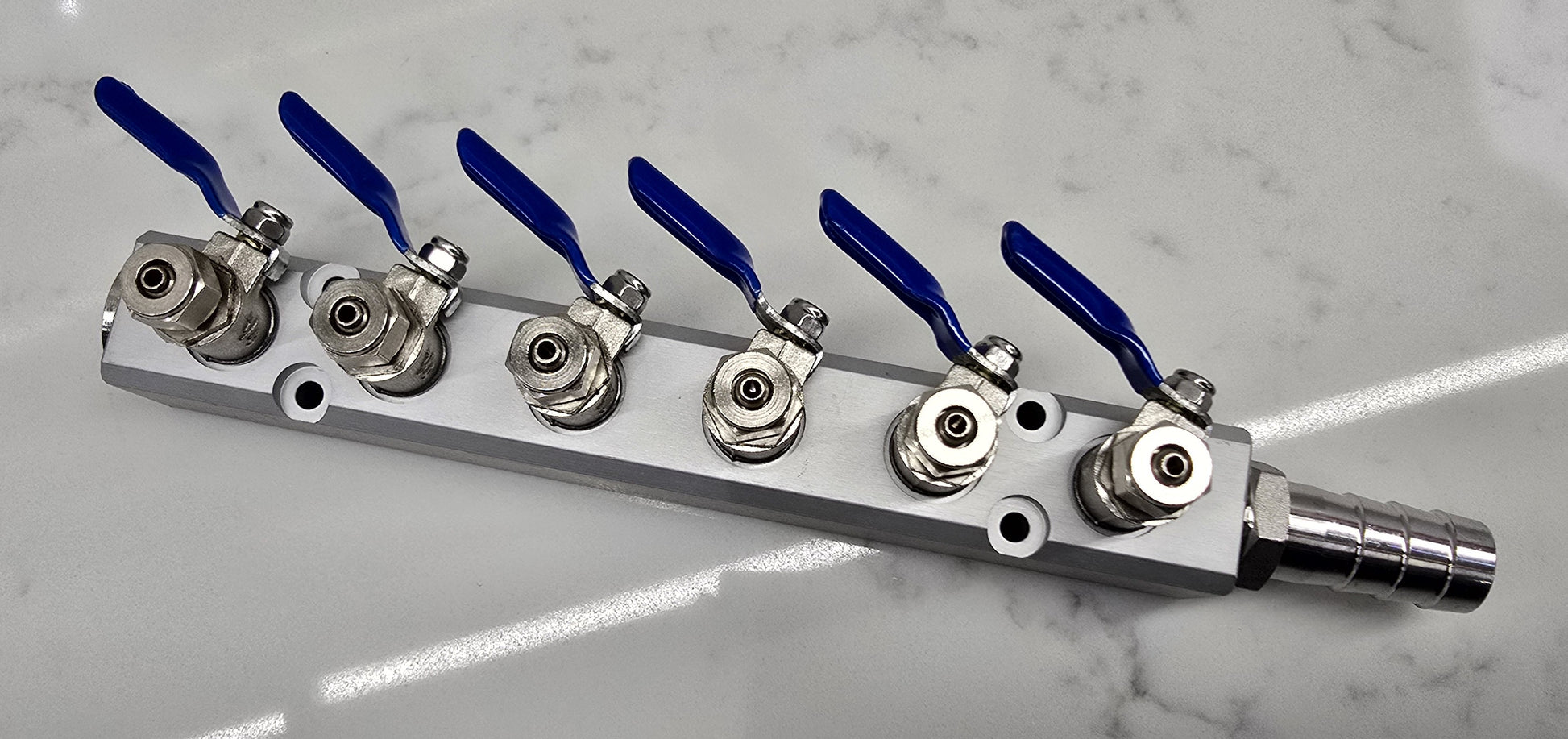

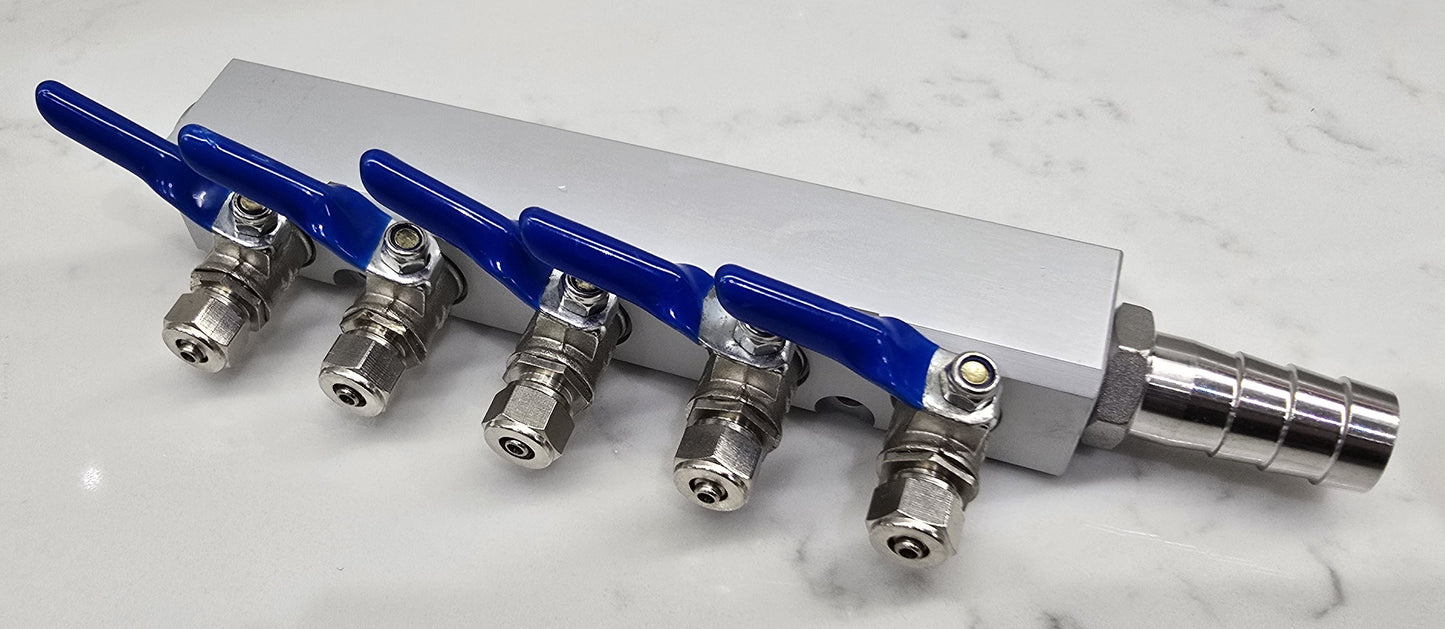

Manifold Air Distributor Block with Individual Taps:-
Can be used for any pneumatic applications - We have built these for pond & aquarium use
For splitting air pumps or CO2
Can also be used for homebrew

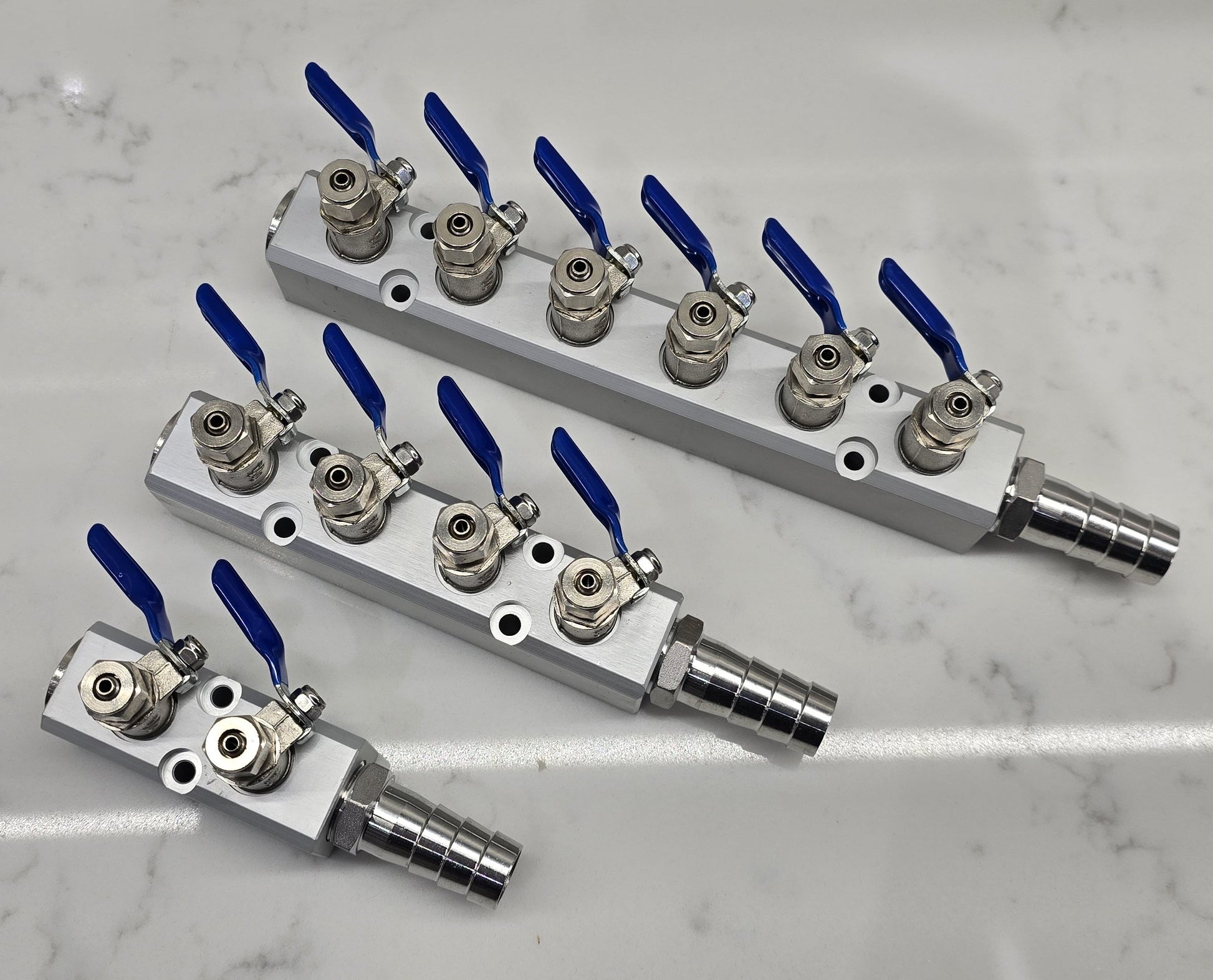

Available in:-

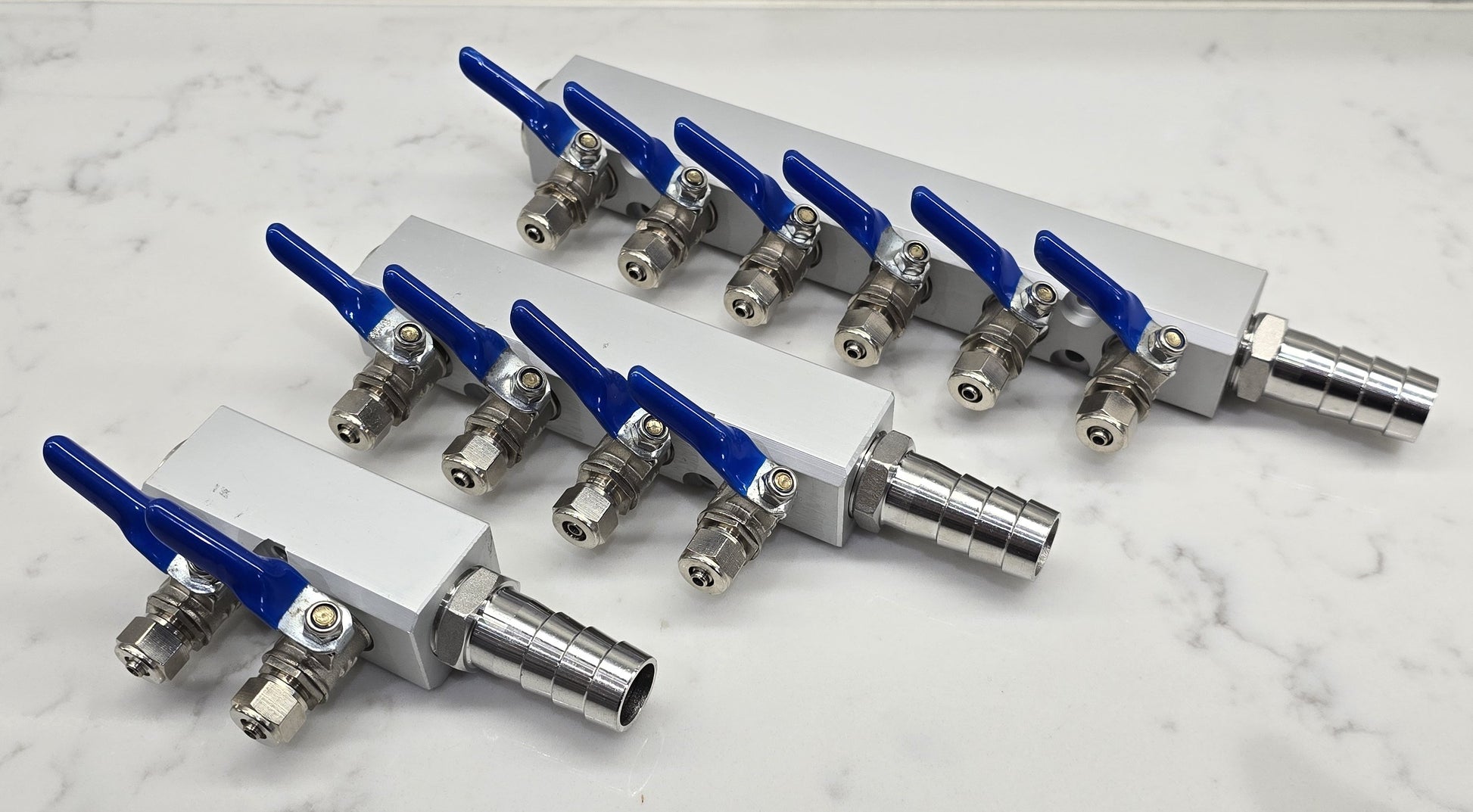

6 Way, 5 Way, 4 Way, 3 Way & 2 Way

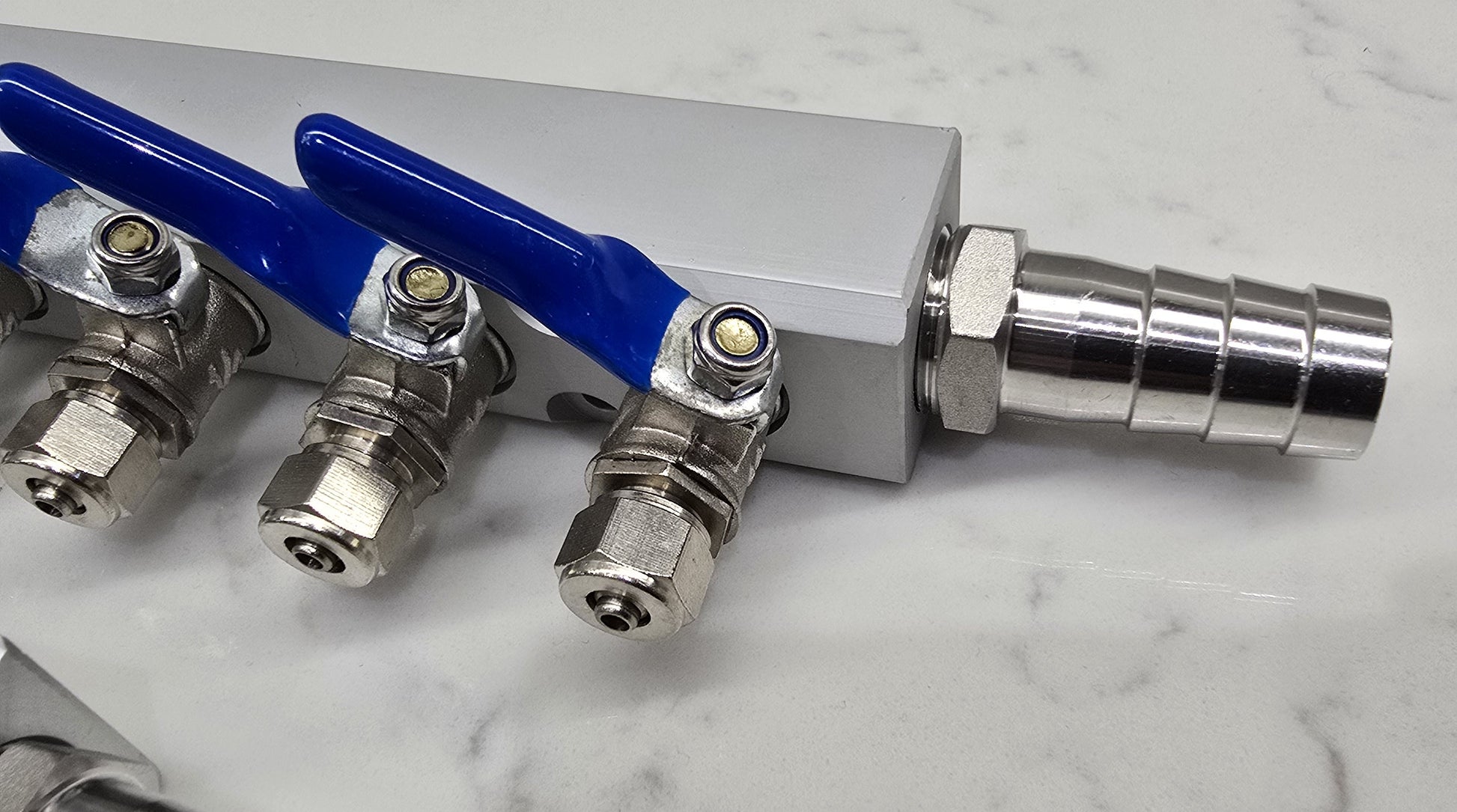

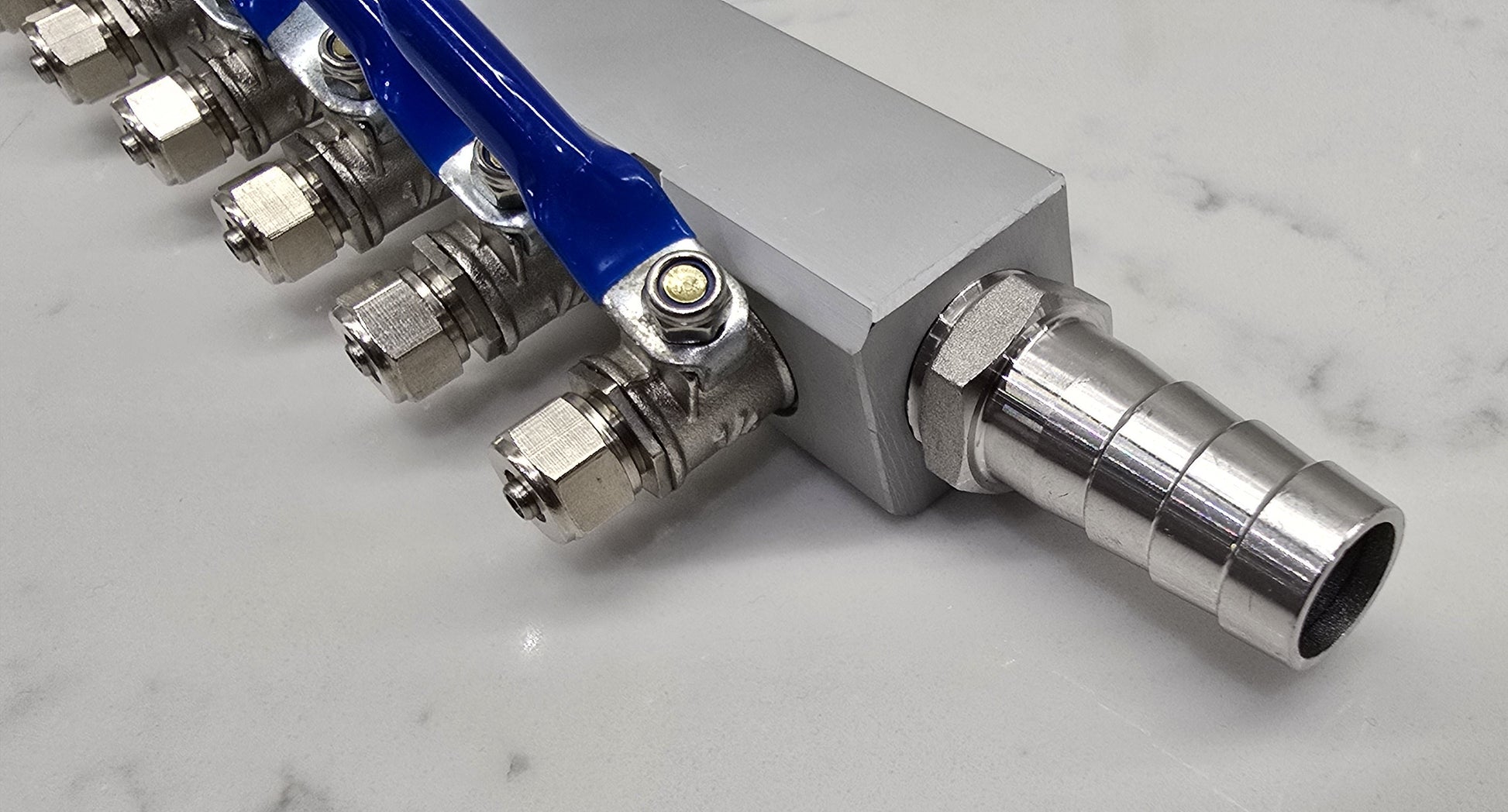

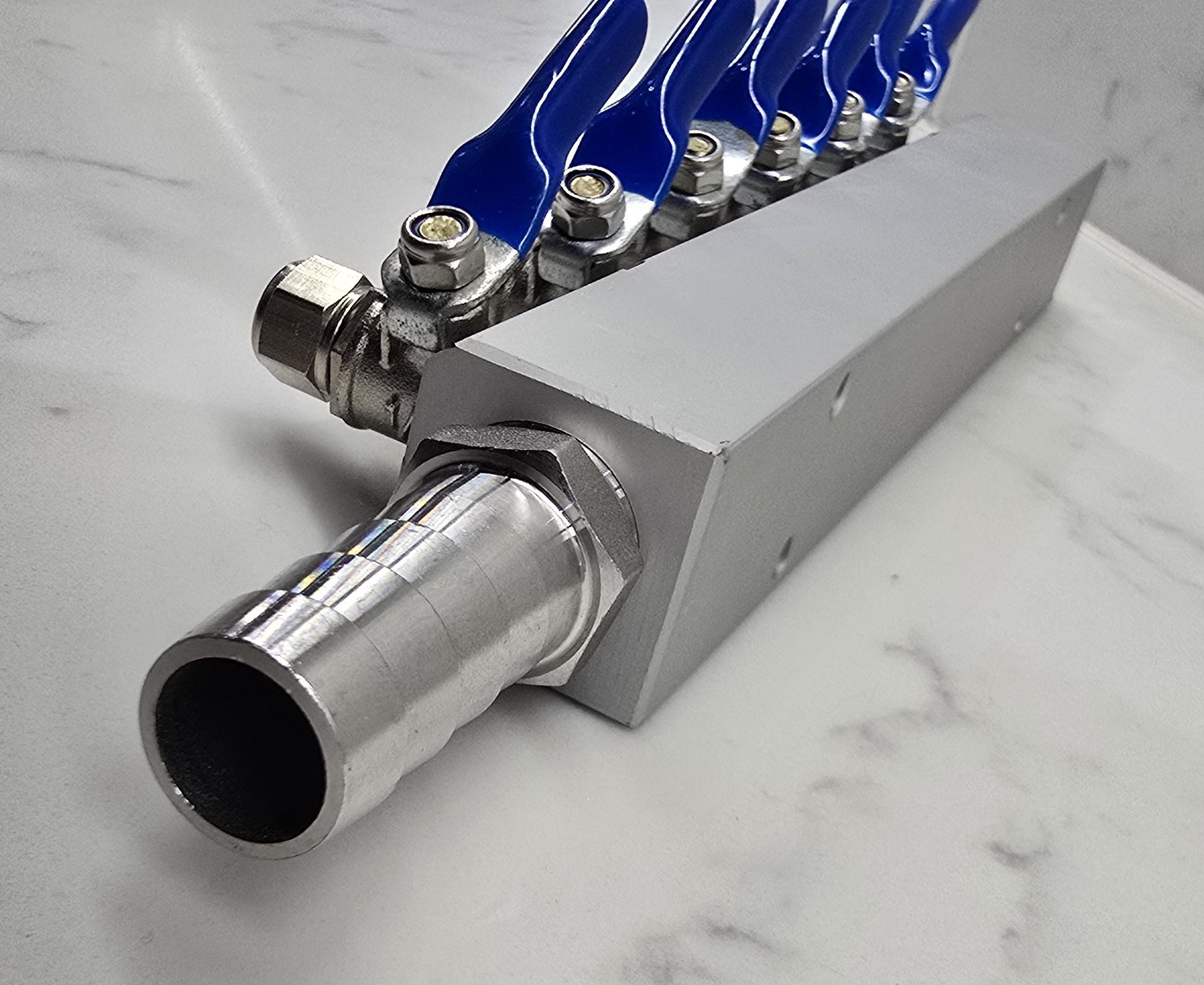

Inlet Spigot to fit 18mm I/D flexible hose
Tap Outlets are to fit standard 4mm x 6mm (I/D x O/D) airline hose

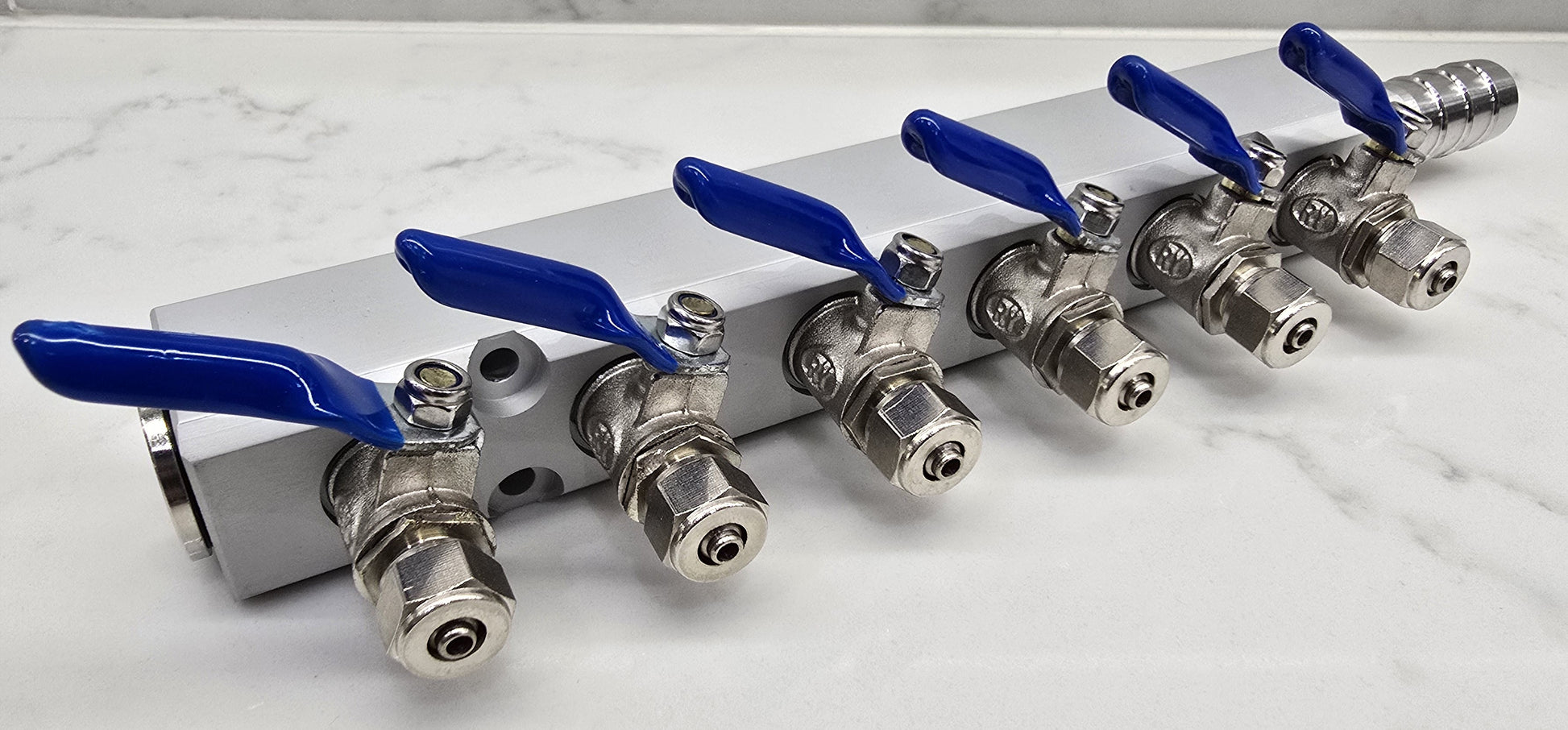

Easy to use quarter turn taps

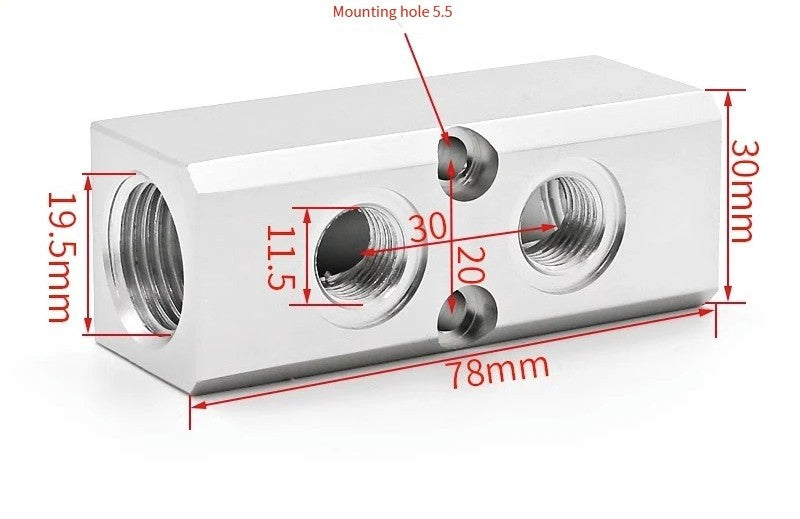

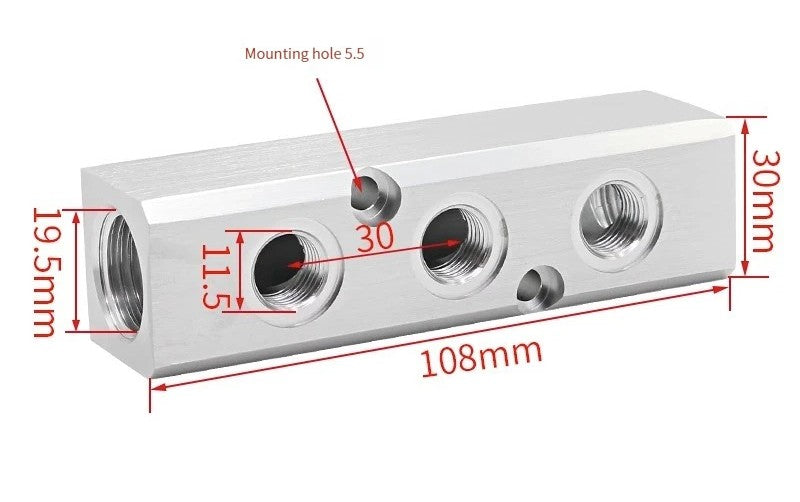

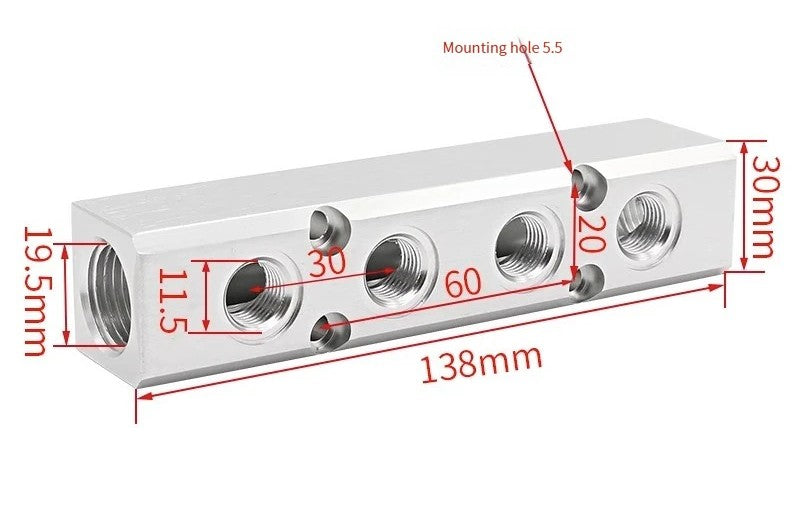

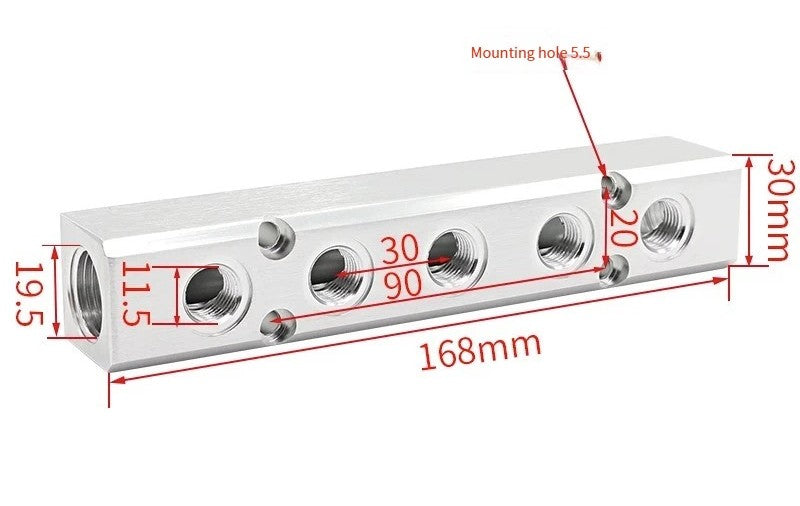

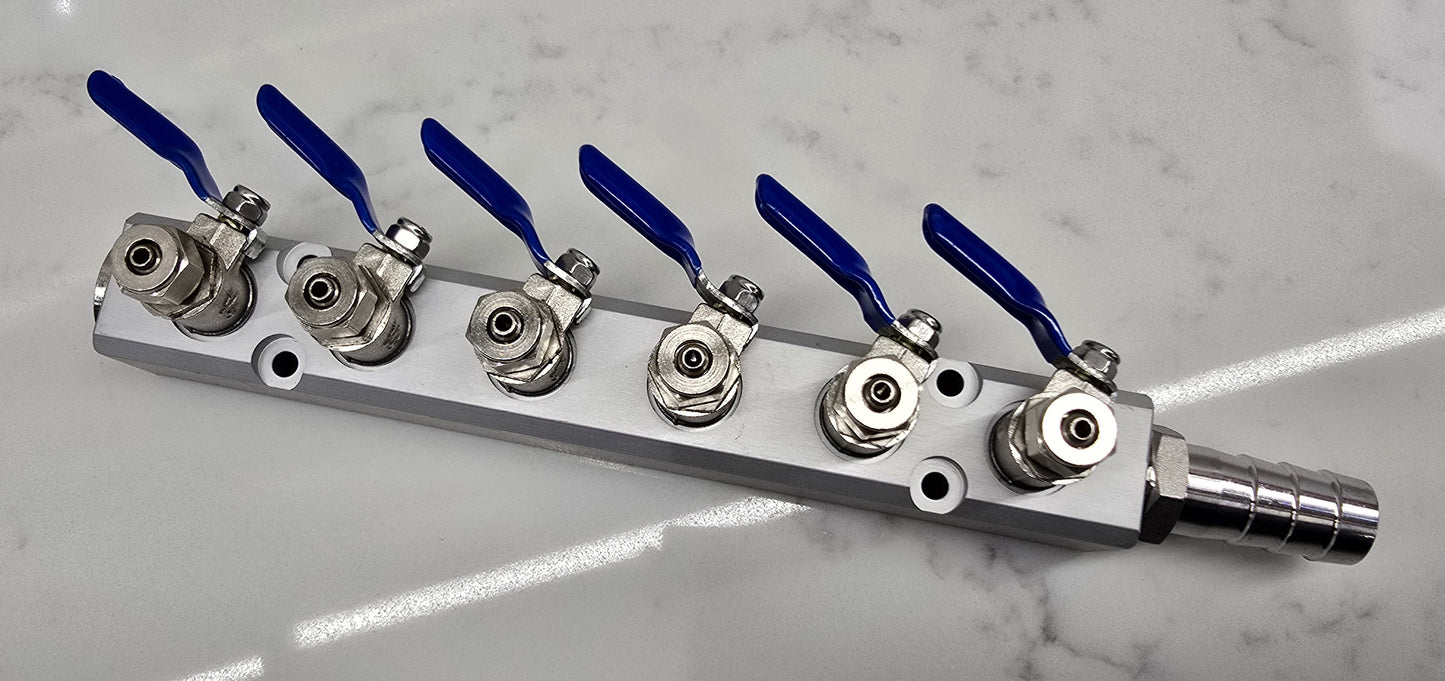

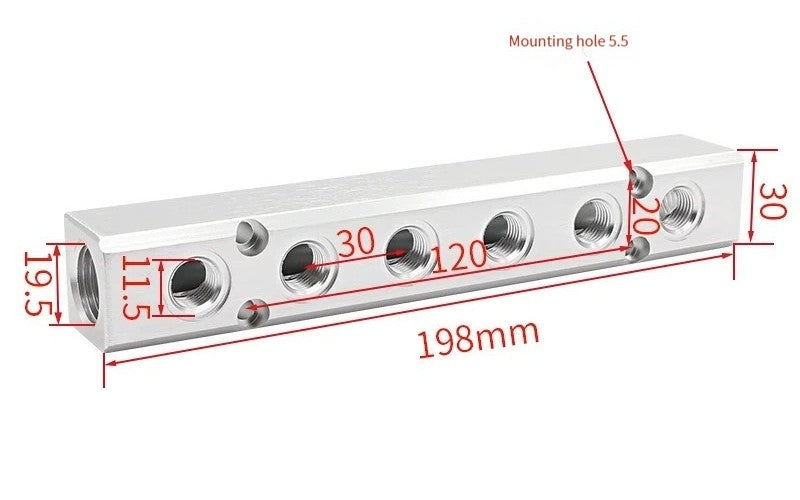

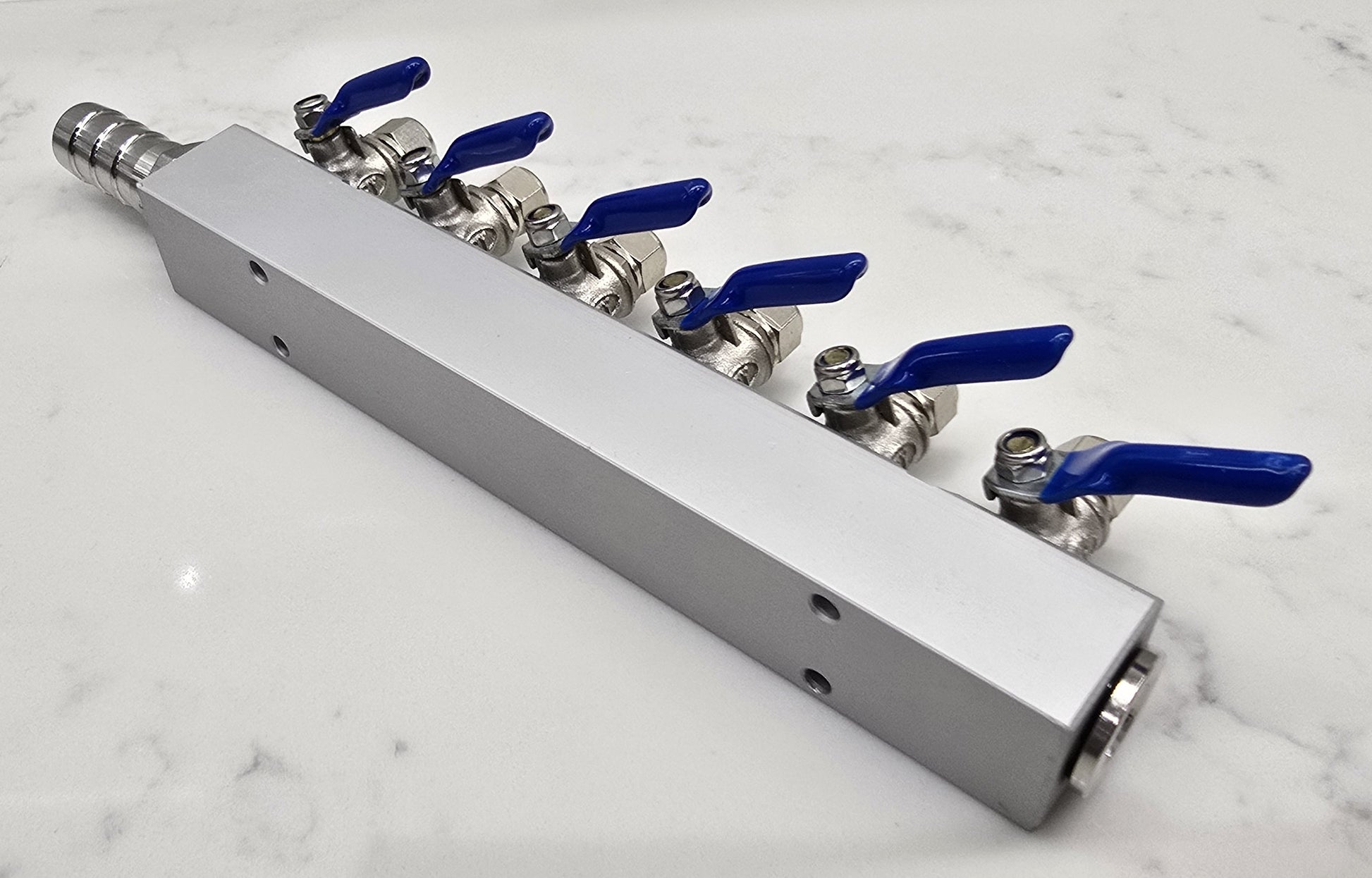

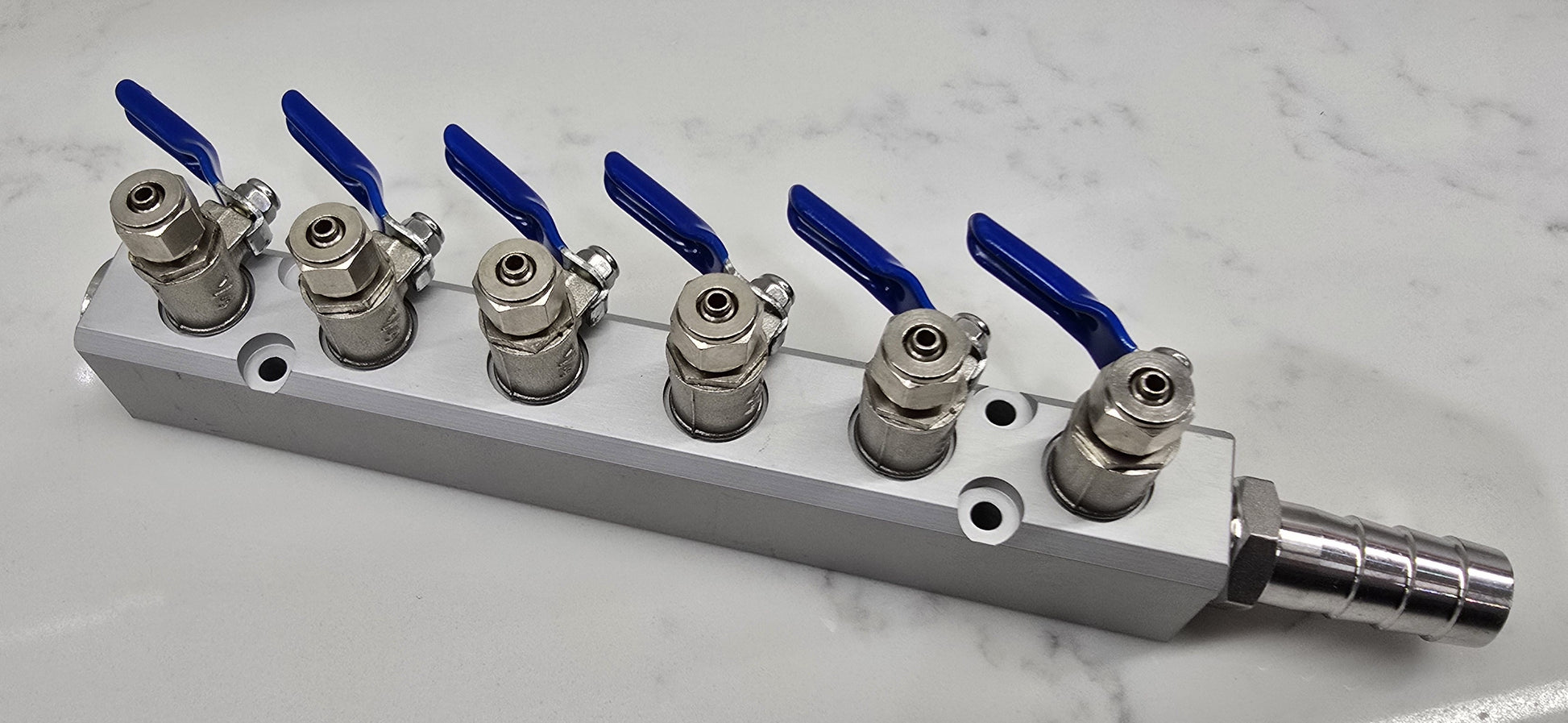

Mounting holes in manifold block
1/2" Side connections (Inlet and Blanked End) and 1/4" Tap Connections

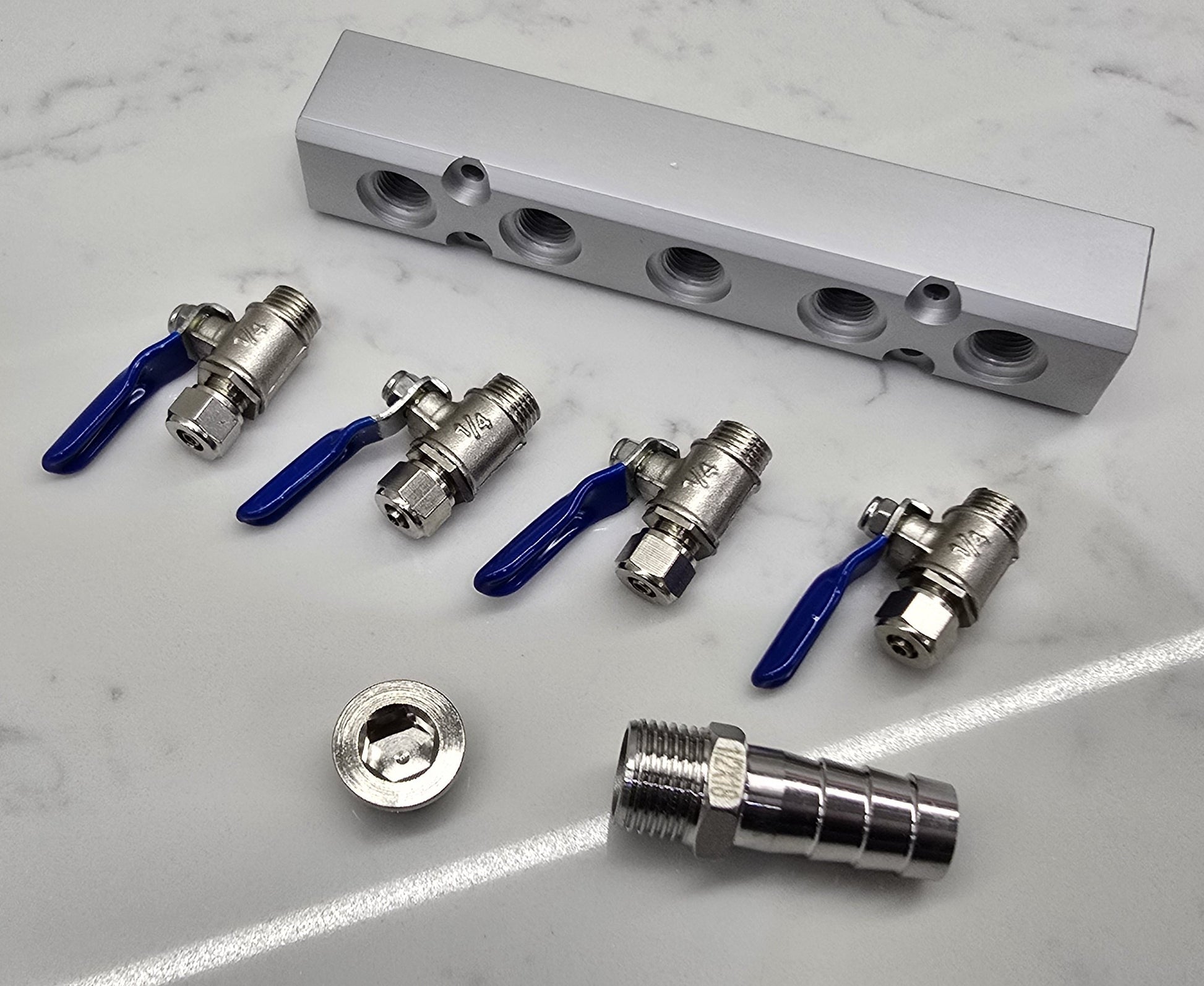

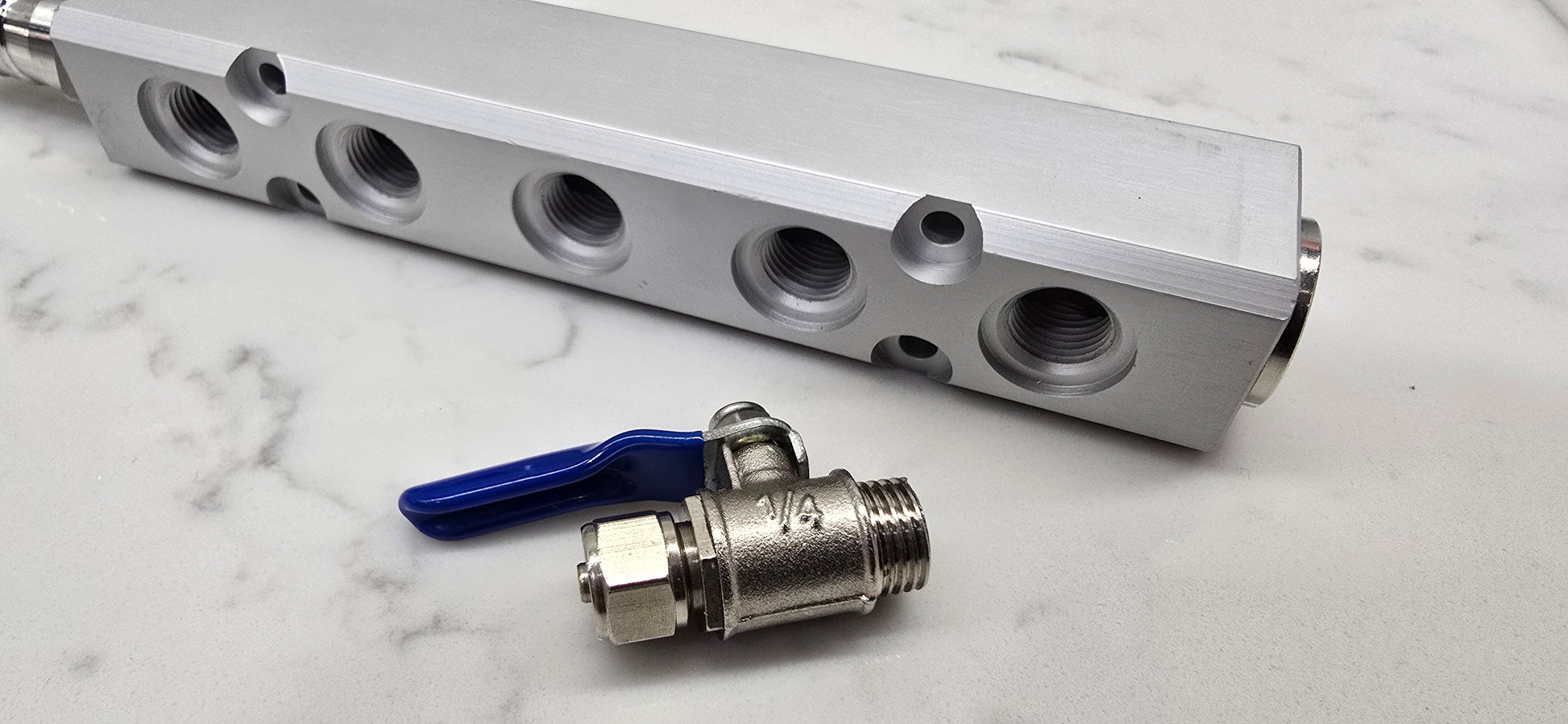

All taps and side connections can be removed for cleaning if necessary

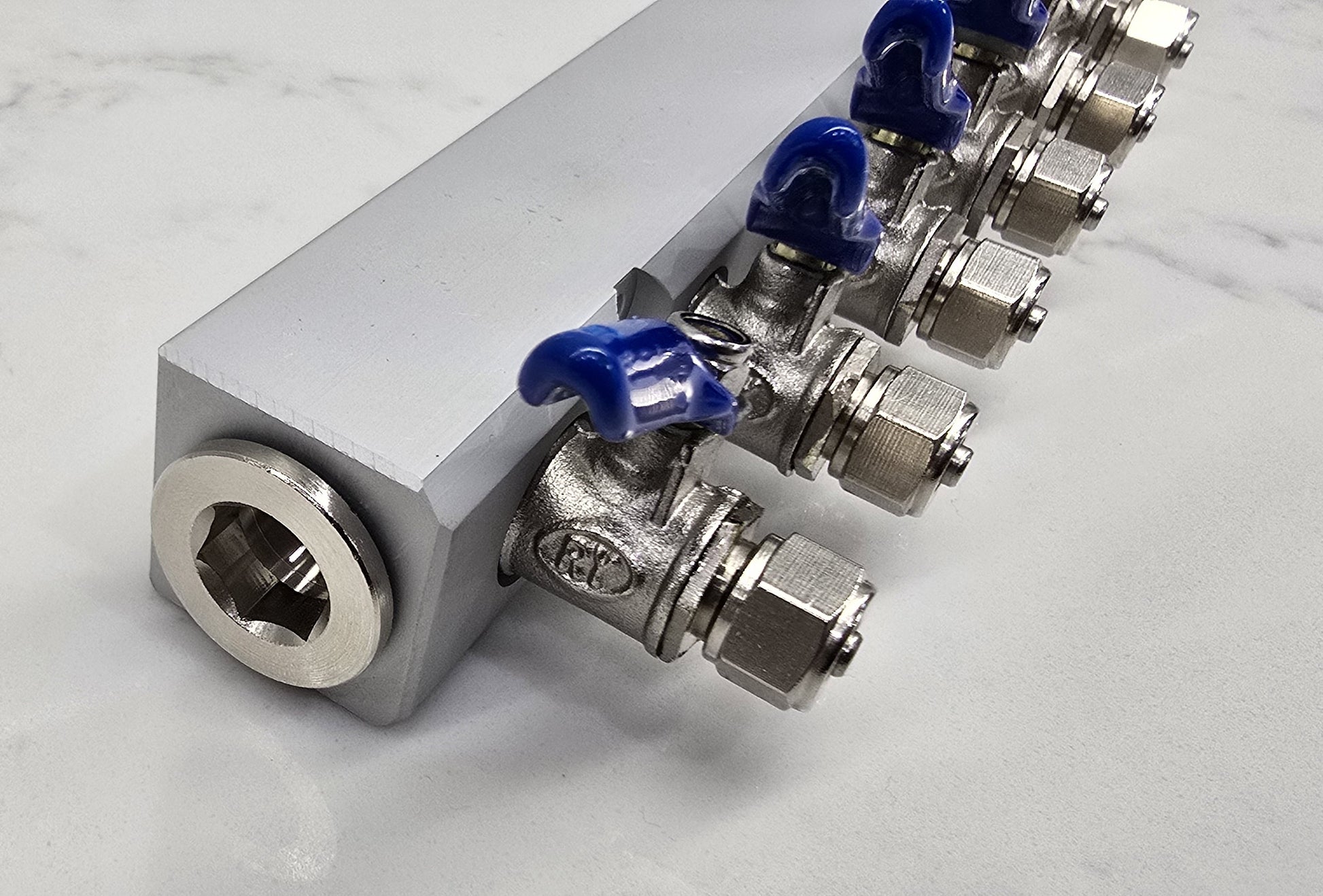

Taps have barbs with locking nuts for secure hose connections
Solid item and heavy duty.
All manifolds come complete and built. Extra PTFE tape may be required on the threaded fittings.
Sizes:

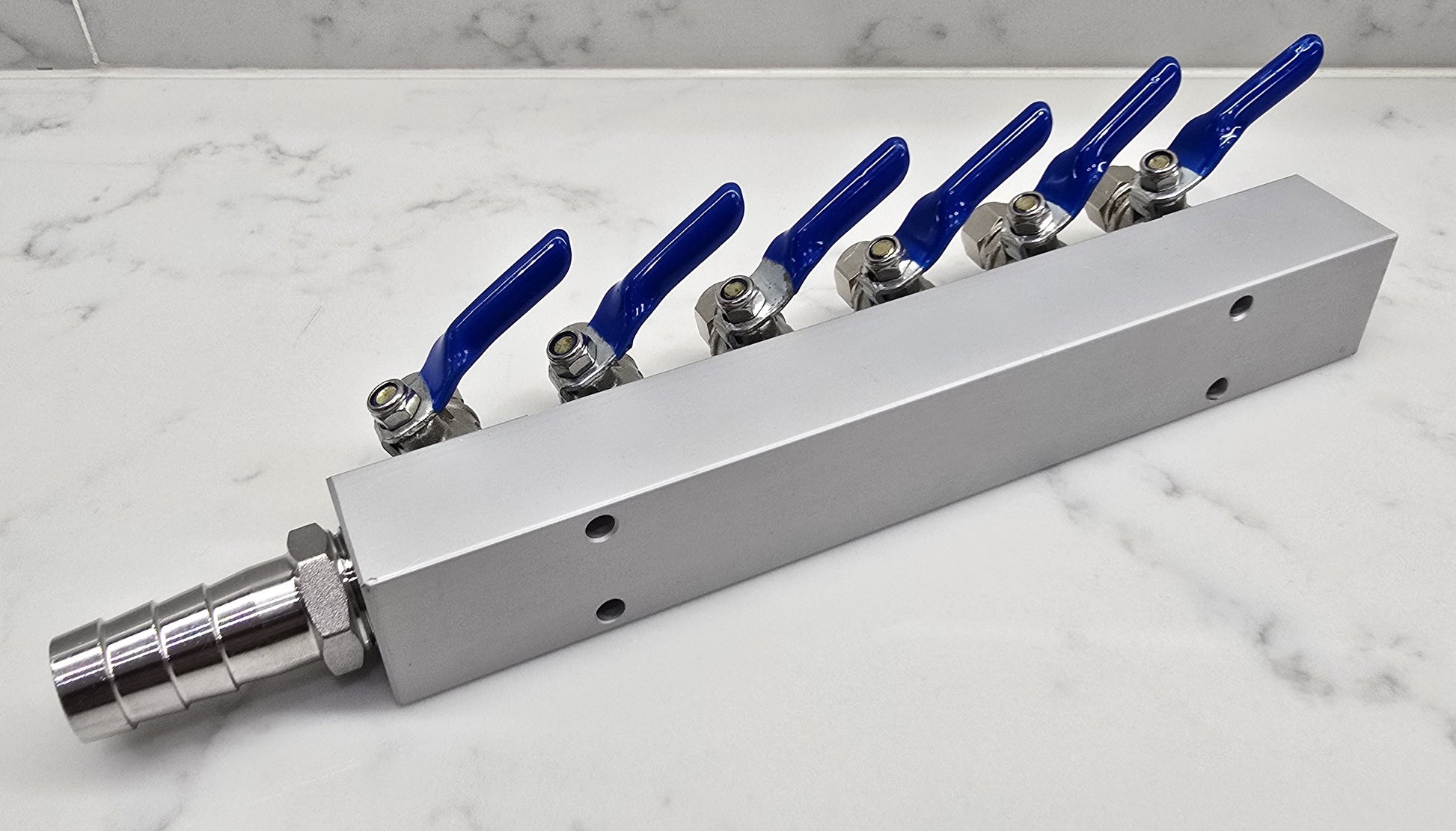

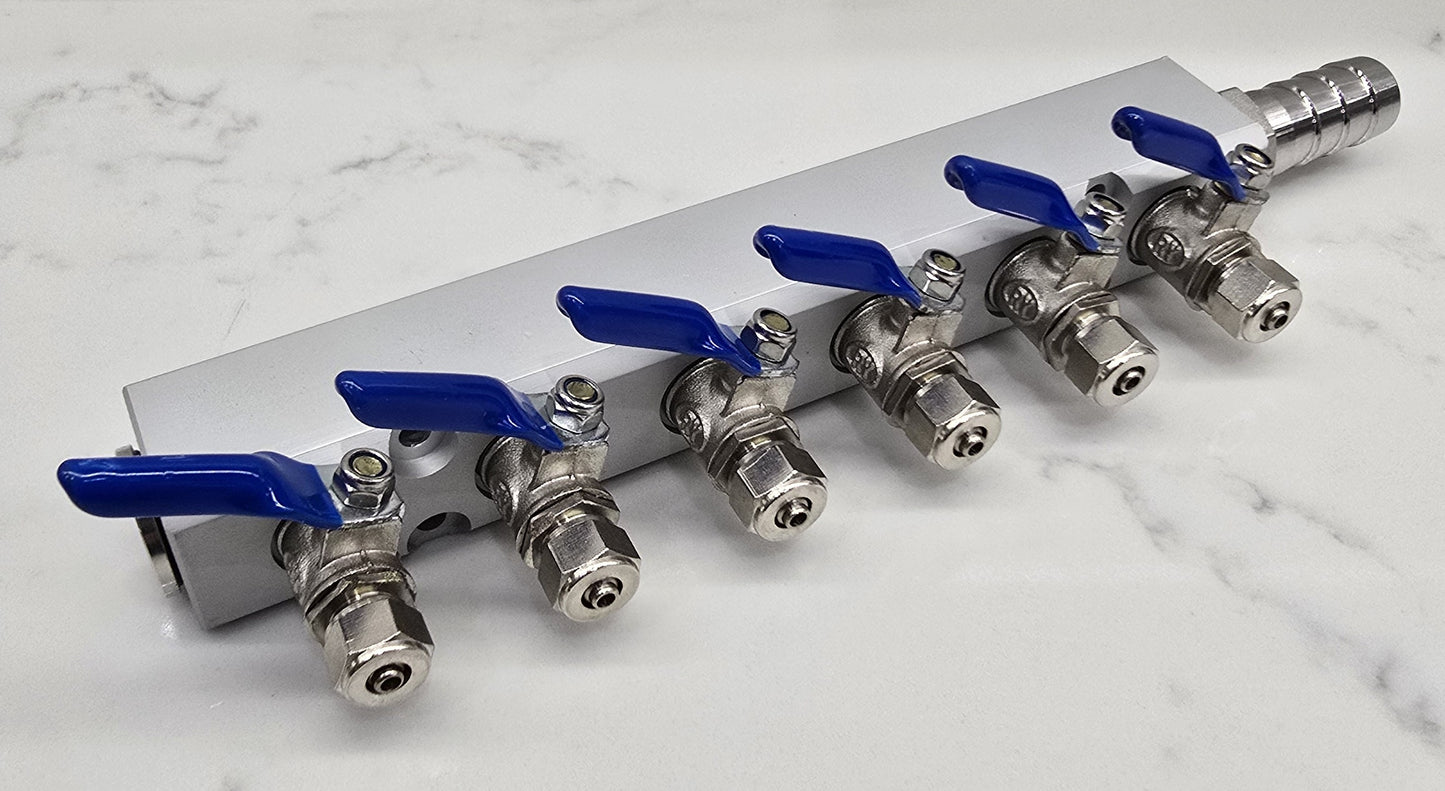

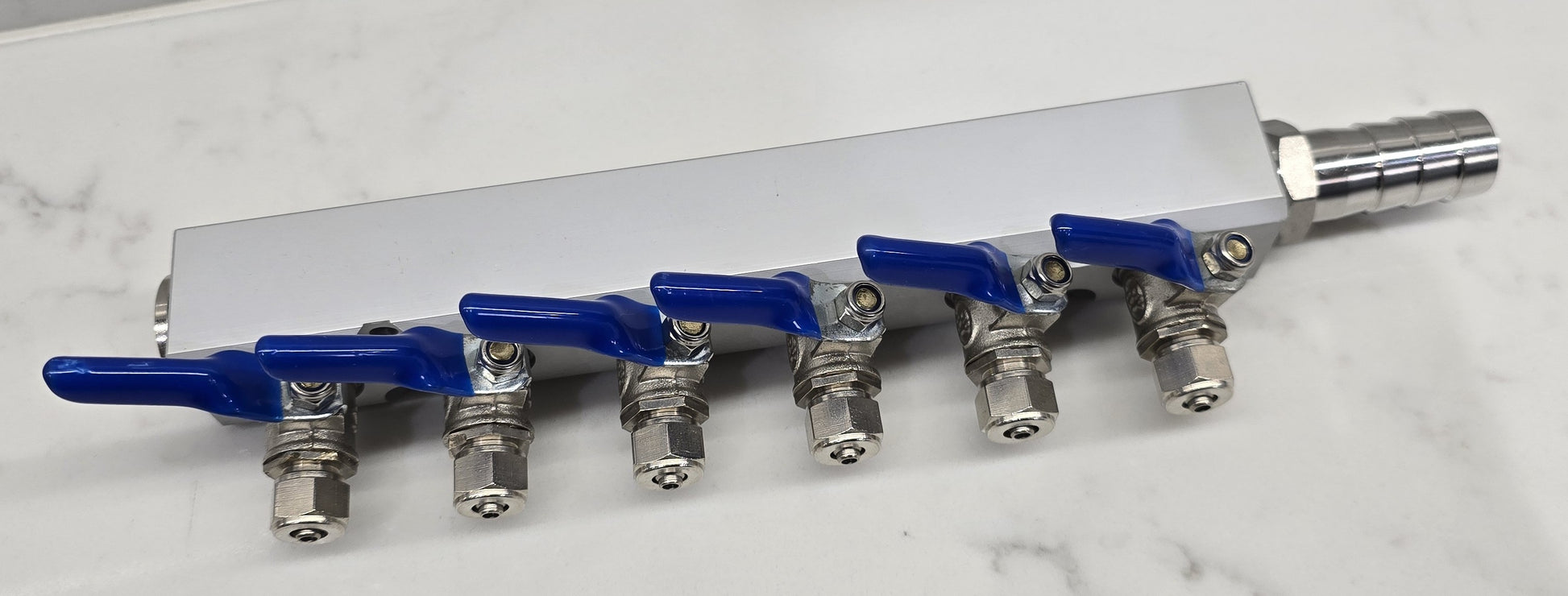

6 way - Total length with spigot 252mm x 30mm wide, tap sticks out 50mm with handle in the open position
5 way - Total length with spigot 218mm x 30mm wide, tap sticks out 50mm with handle in the open position

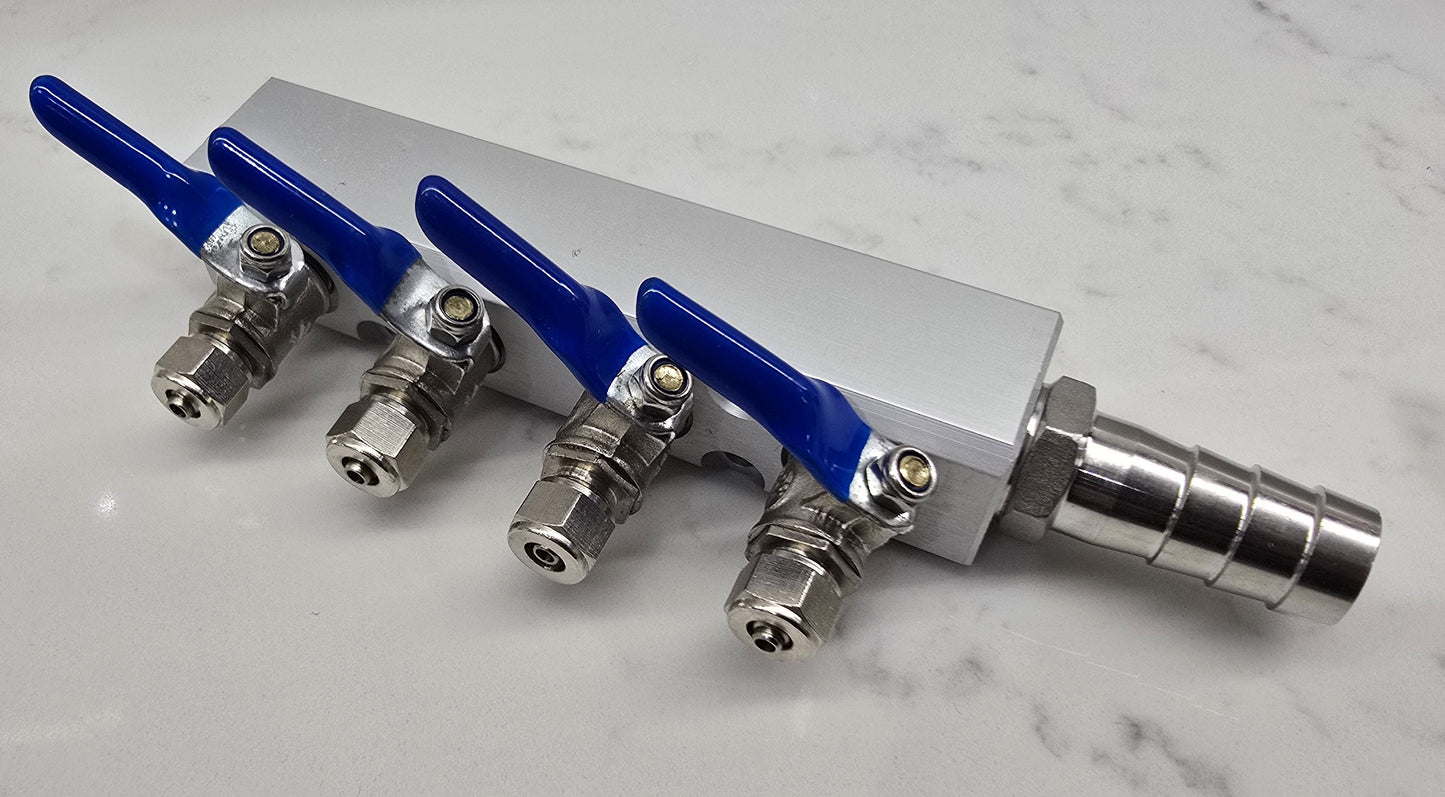

4 way - Total length with spigot 186mm x 30mm wide, tap sticks out 50mm with handle in the open position
3 way - Total length with spigot 155mm x 30mm wide, tap sticks out 50mm with handle in the open position

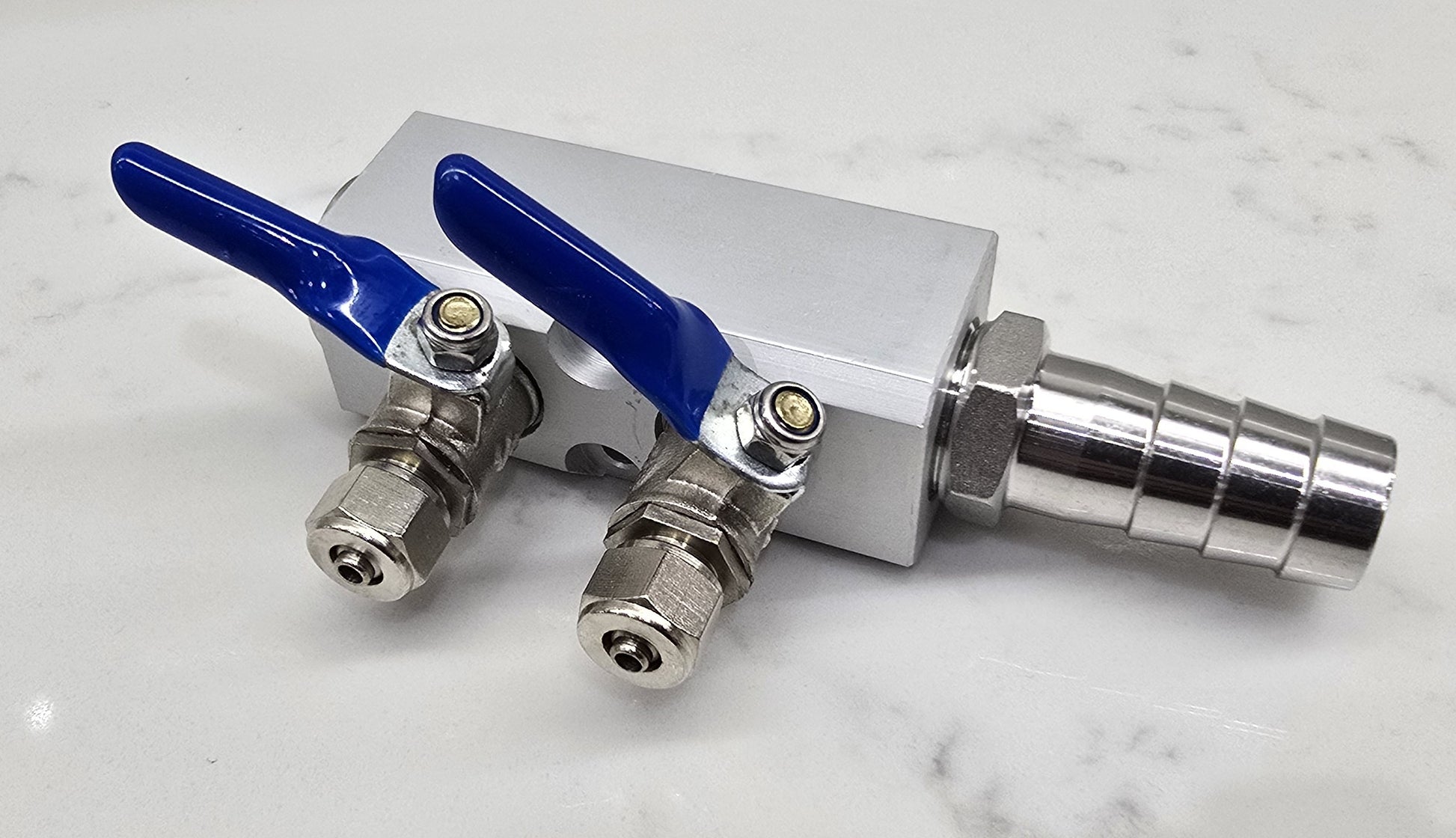

2 way - Total length with spigot 123mm x 30mm wide, tap sticks out 50mm with handle in the open position
ALL SIZES ARE APPROX
