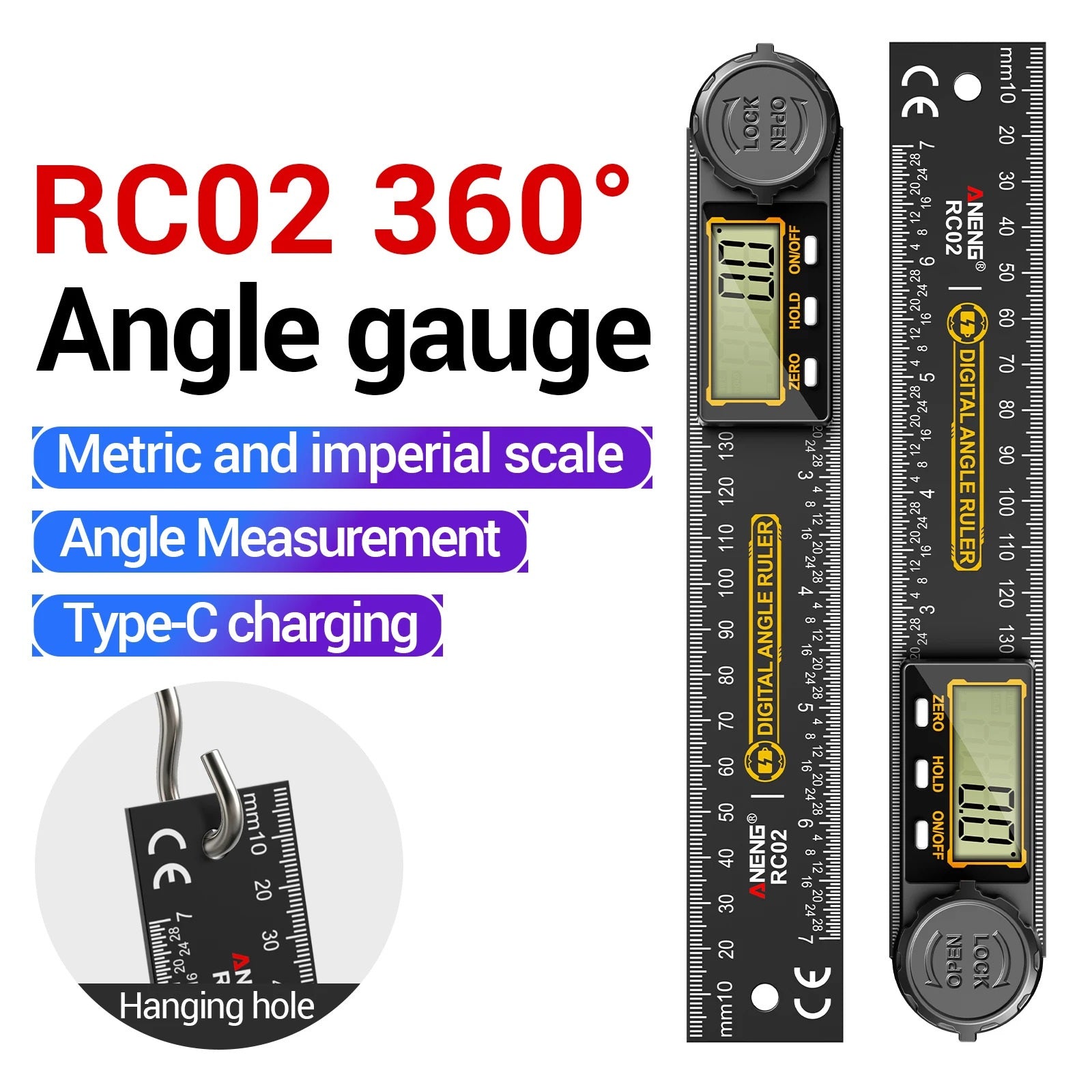

RECHARGABLE DIGITAL ANGLE GAUGE

Do carpenters, decorators, and craftsmen need to use two separate tools to measure angles and lengths?

This 2-in-1 digital angle measuring ruler, capable of measuring angles from 0 to 360 ° and lengths from 0 to 200mm simultaneously. It can switch between metric and imperial units, and does not require frequent battery changes as this is a rechargeable model. It is versatile and suitable for home decoration, woodworking, DIY, and auto repair positioning.

Product parameters

Angle measurement range: single circle 0~360 °, total display range 0.0~999.9 °

Angle resolution: 0.1 °

Measurement accuracy: ± 1%+0.5 °

Length measurement range: 0~200mm

Measurement units: millimetres (mm)/inches (in) metric/imperial system switching

Working temperature range: 0 ℃~+50 ℃

Working current: ≤ 30 μ A

Power supply specification: 3.7V 90mAh rechargeable lithium battery, supporting direct charging

Whole machine weight: 62 grams

Standard features: direct charging of lithium battery, adjustment knob, parallel flat bottom, data retention, one click data reset, automatic shutdown after 6 minutes without operation

Note: The parameters are for reference only, and the actual measured values of the equipment shall prevail

Core product advantages

● Two in one measurement design, supporting both angle measurement and length distance measurement. One tool replaces the protractor and ruler, reducing the number of tools carried

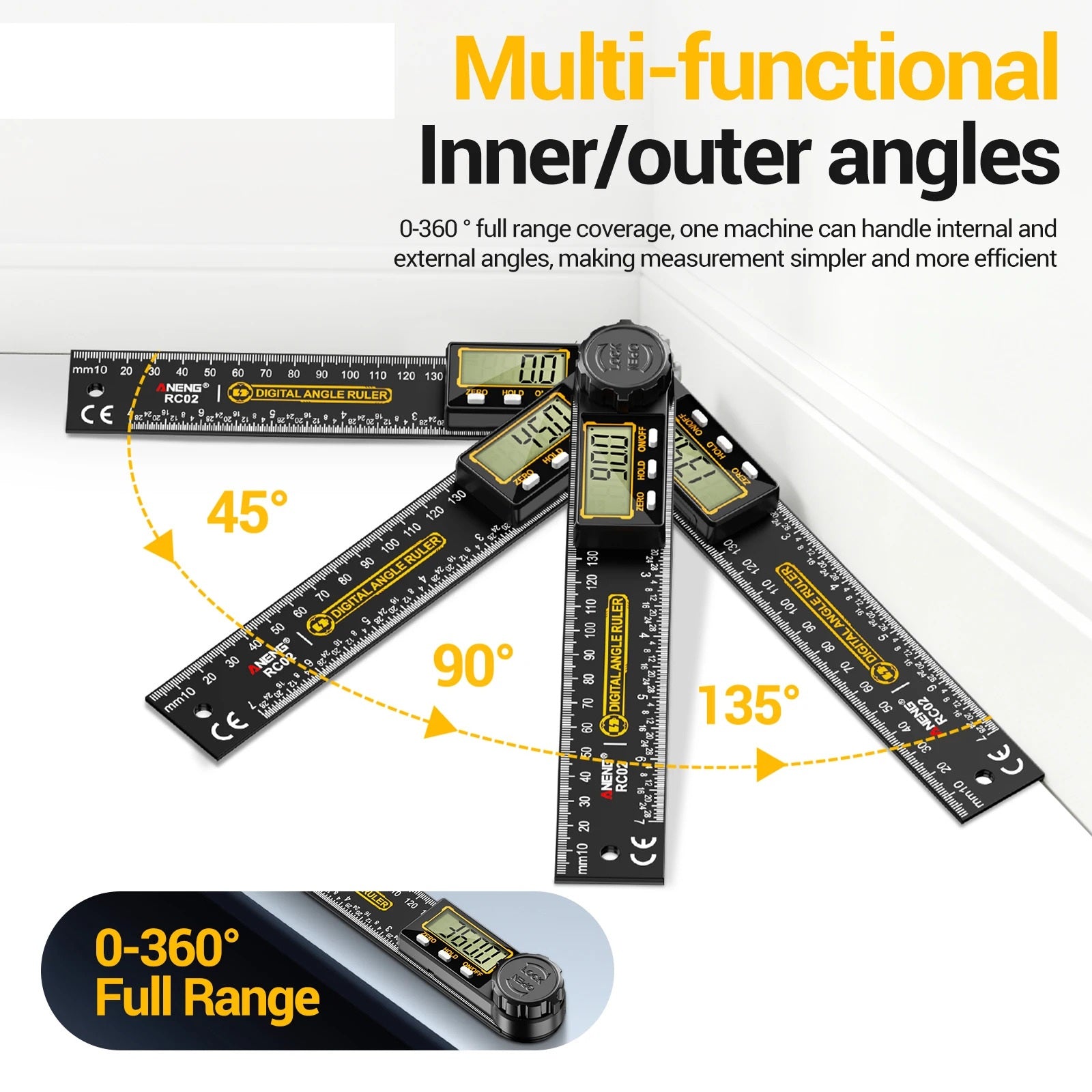

Angle measurement: single circle 0~360 °, total display range 0.0~999.9 °, resolution 0.1 °, measurement accuracy ± 1%+0.5 °, clear capture of small angle changes

● Length ranging range from 0 to 200mm, with free switching between millimetre and inch metric and imperial scales, suitable for local measurement habits in Latin America

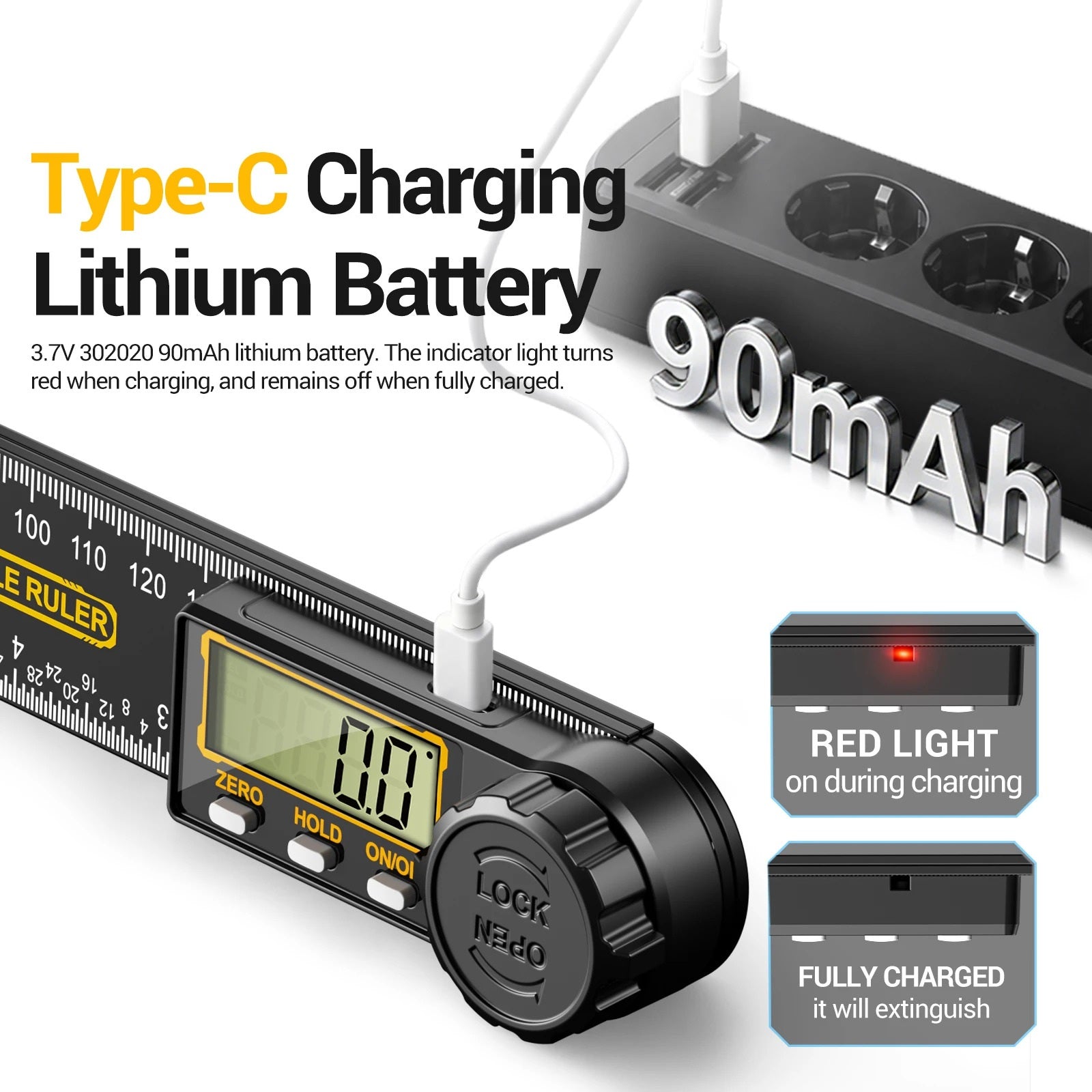

Built in 3.7V 90mAh lithium battery, supports Type-C direct charging cycle use, low working current ≤ 30 μ A, energy-saving and long-lasting battery life

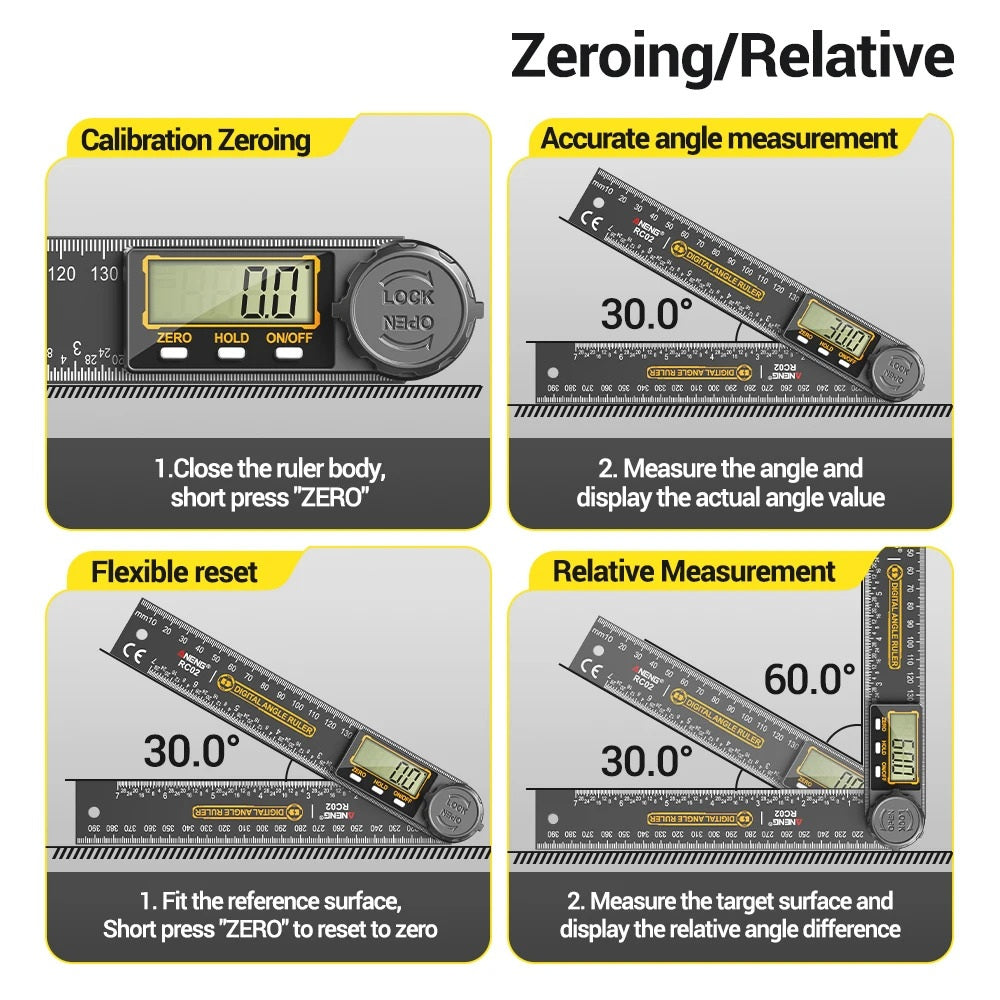

● Fully functional practical configuration: adjustable knob, parallel flat bottom fitting design, data lock, one click zero reset, 6-minute idle automatic shutdown

Parallel flat bottom structure, tightly fitting the board and workpiece during measurement to avoid measurement errors caused by gaps

The whole machine has a lightweight body of only 62g, with easy storage in pockets and toolboxes, making it effortless to hold and measure for long periods of time

The working temperature ranges from 0 ℃ to+50 ℃, and it can be used stably in both indoor workshops and outdoor construction environments at room temperature

High definition digital display screen, with intuitive and clear numerical values, making woodworking cutting, furniture installation, and mechanical positioning readings easy to read at a glance
