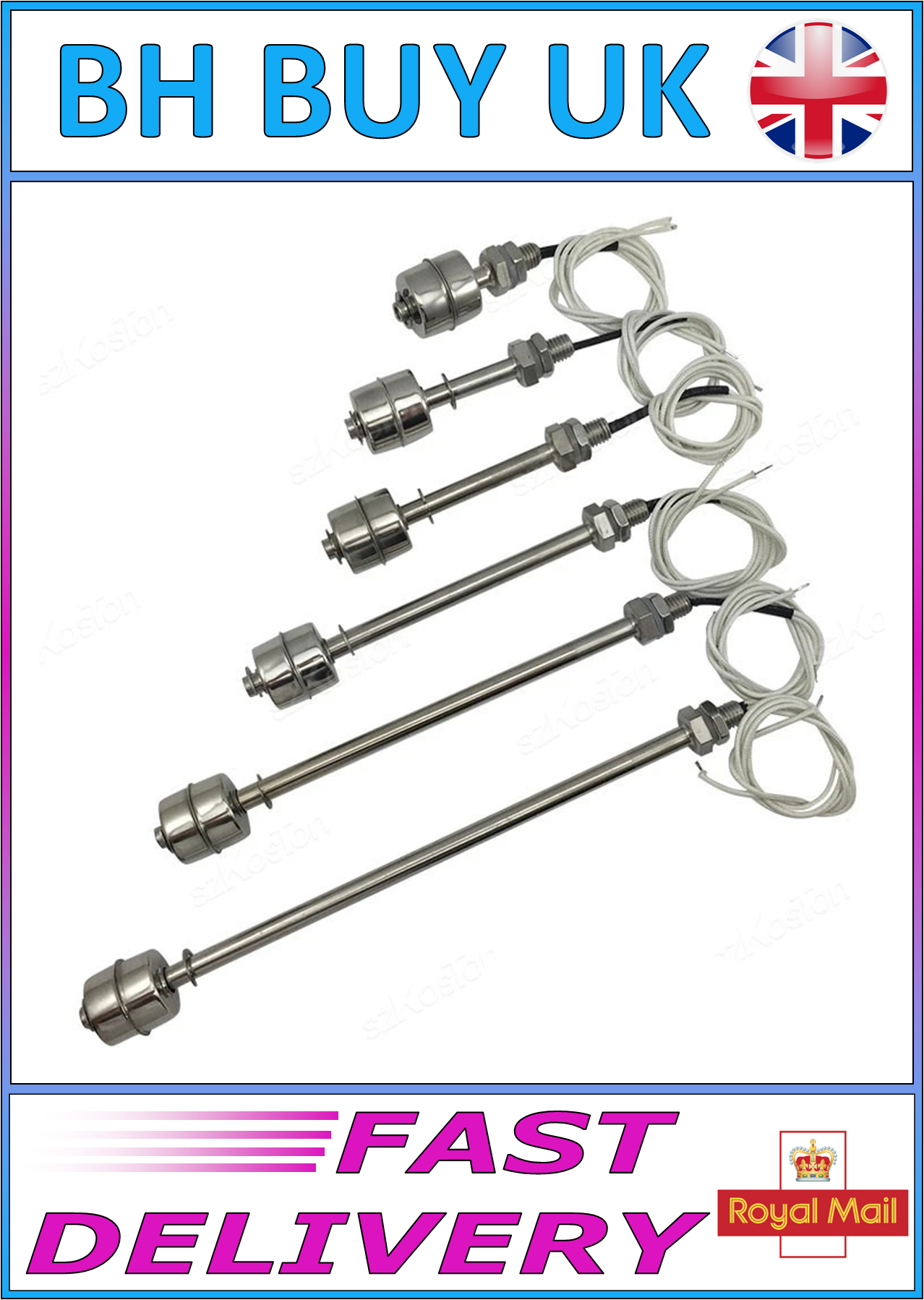

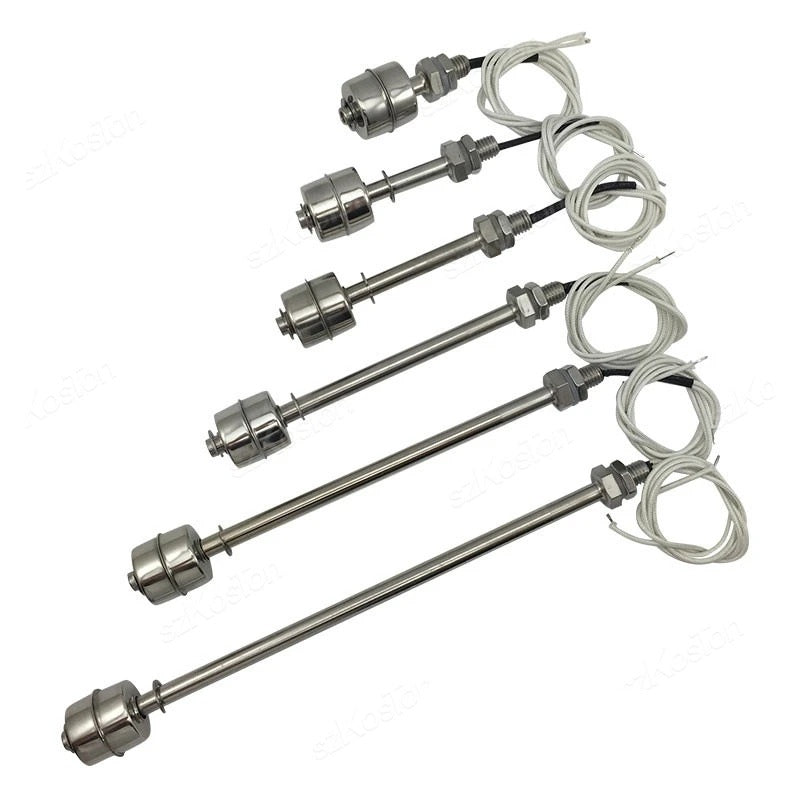

STAINLESS STEEL FLOAT SWITCH 45mm 75mm 100mm 150mm 200mm

This is a mini stainless steel float switch, contains no for mercury.
Light weight and simple working principle, high reliability.

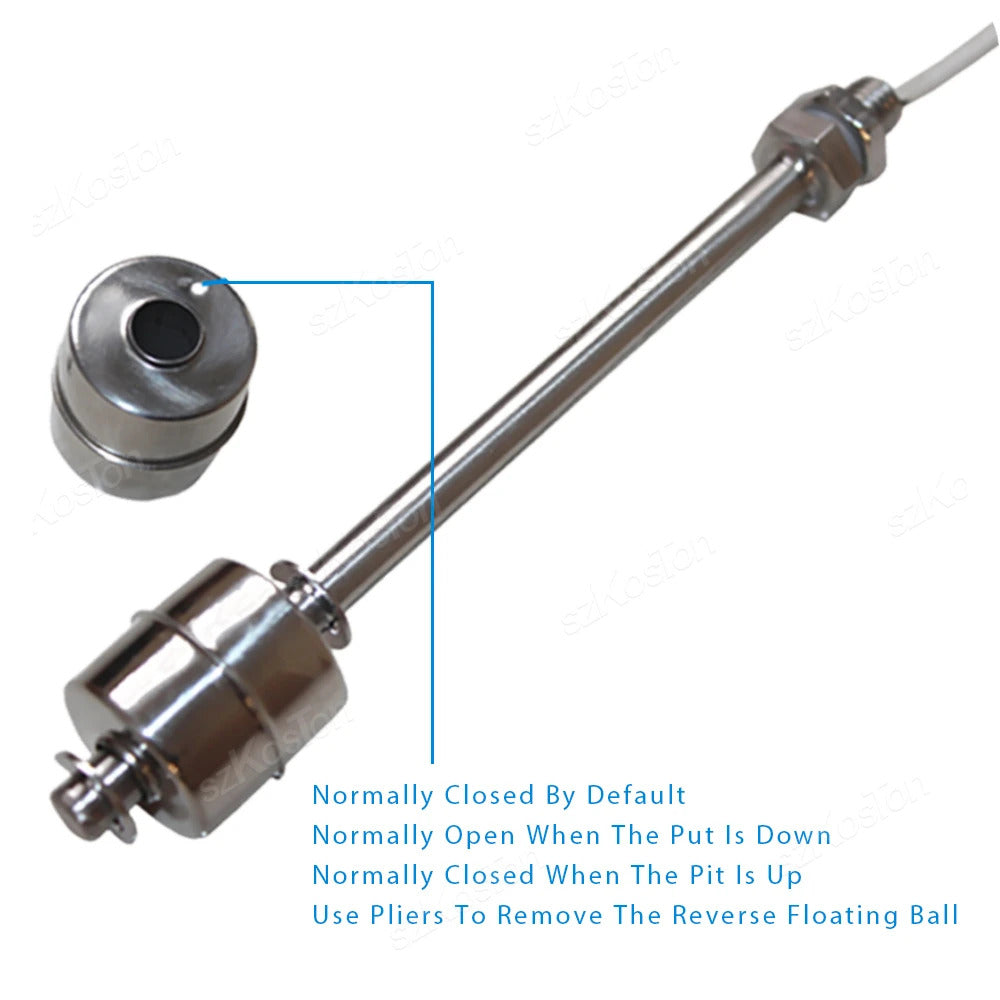

This float switch is a device used to sense the level of liquid within a tank,
the switch may activate a pump, an indicator, an alarm, or other device.
This float switch is a simple structure, easy installation liquid level controller.
It does not have a complex circuit, will not be disturbed, as long as the material selection,
liquid, pressure or temperature can be used in any environment.
The versatility of this vertically mounted sensor means that it can be installed either at the top
or base of your tank,depending on whether you for wish to detect the water's rise or fall.
The float level switch is widely used in electronic, electrical, chemical, water treatment,
drainage and other walks of life level control and alarm

Specification:

Material: Stainless Steel
Colour: Silver
Max Contact Rating: 10W
Max switching voltage: 110V DC
Max switching current: 0.5A
Max breakdown voltage: 220V DC
Max carry current: 1A
Max contact resistance: 100mΩ
Max temperature: -30~+125°

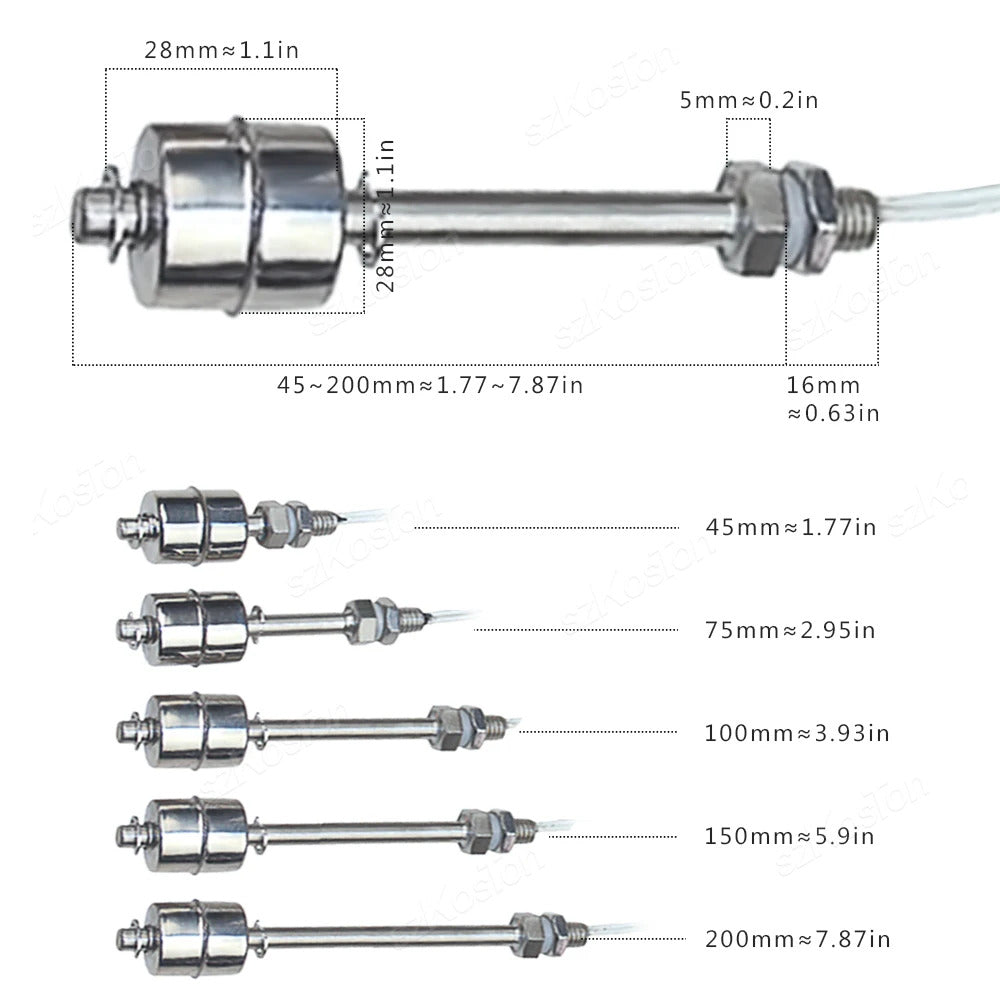

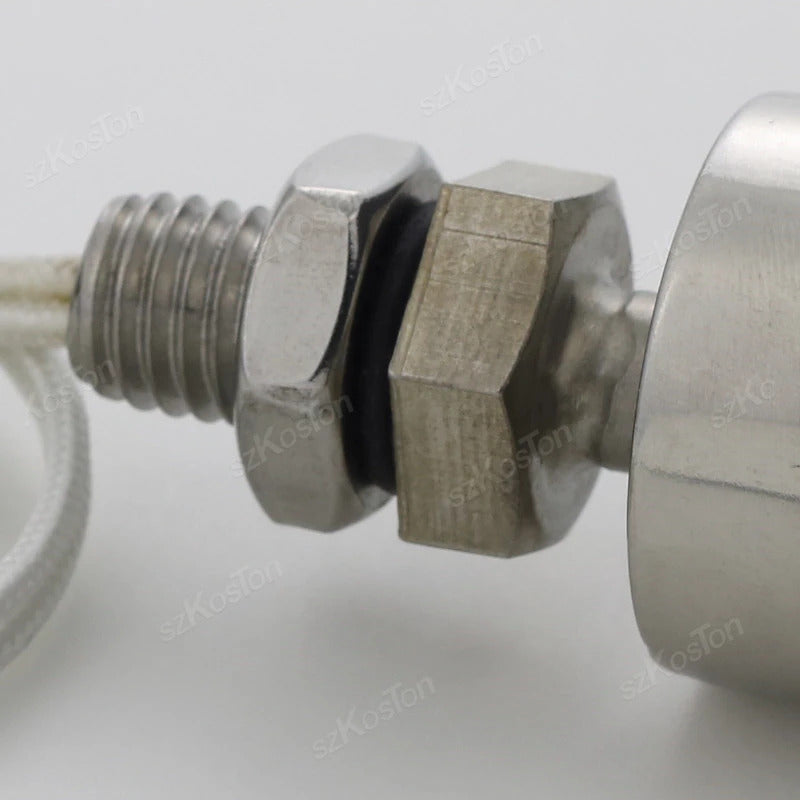

Thread Dia(Approx.): 10mm

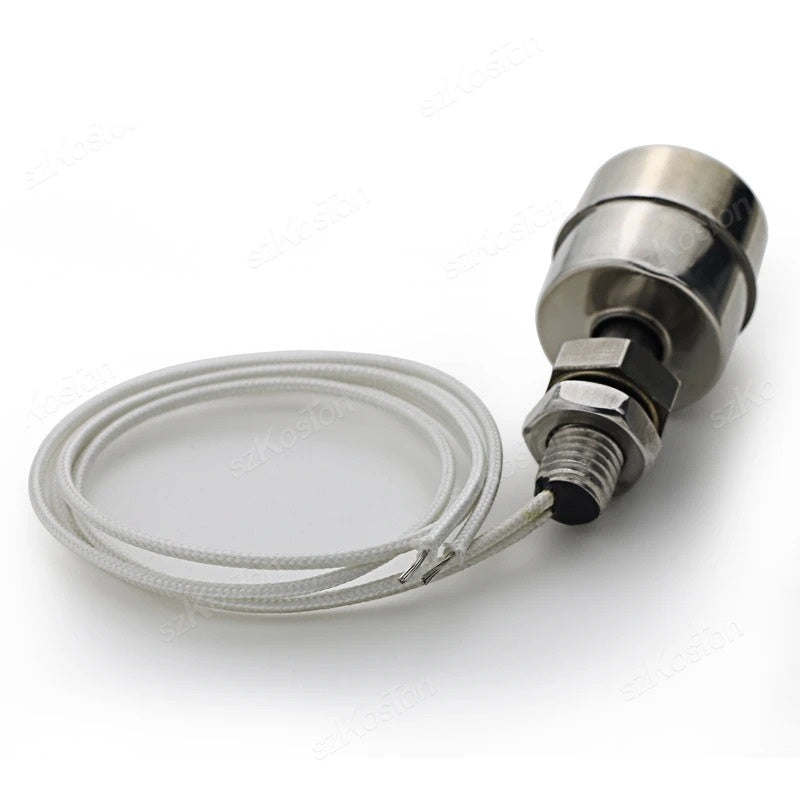

Cable Length: Approx. 350mm/13.78"

Quantity: 1 Pcs

Note:
Reminder: Must be connected in series with small relays or use plc to directly control the motor/pump/light bulb, although sometimes it seems that the current is very small, but there is a momentary current when the appliance starts, it may burn out the switch contacts inside.

Package Contents:
1x Floating Switch
