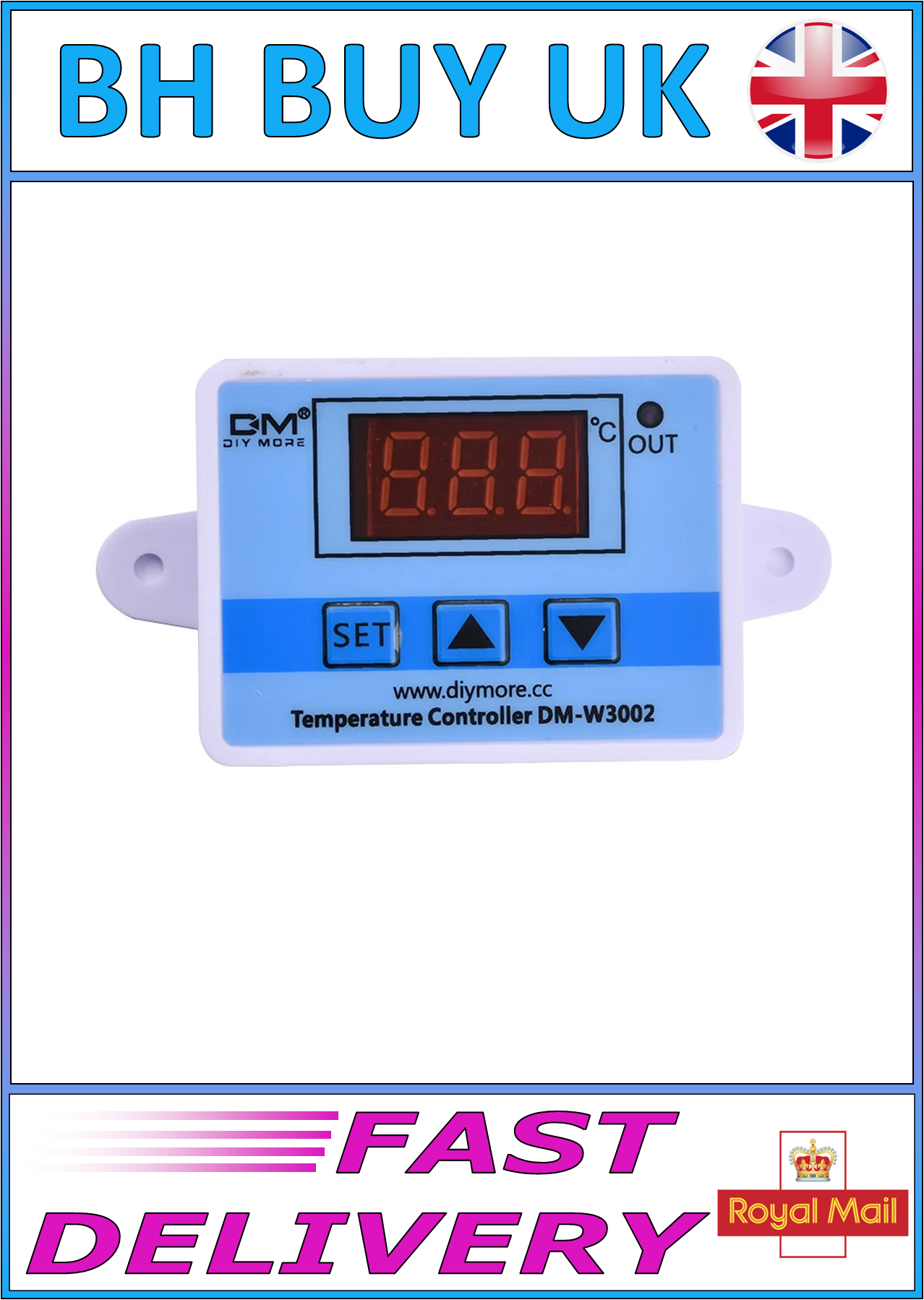

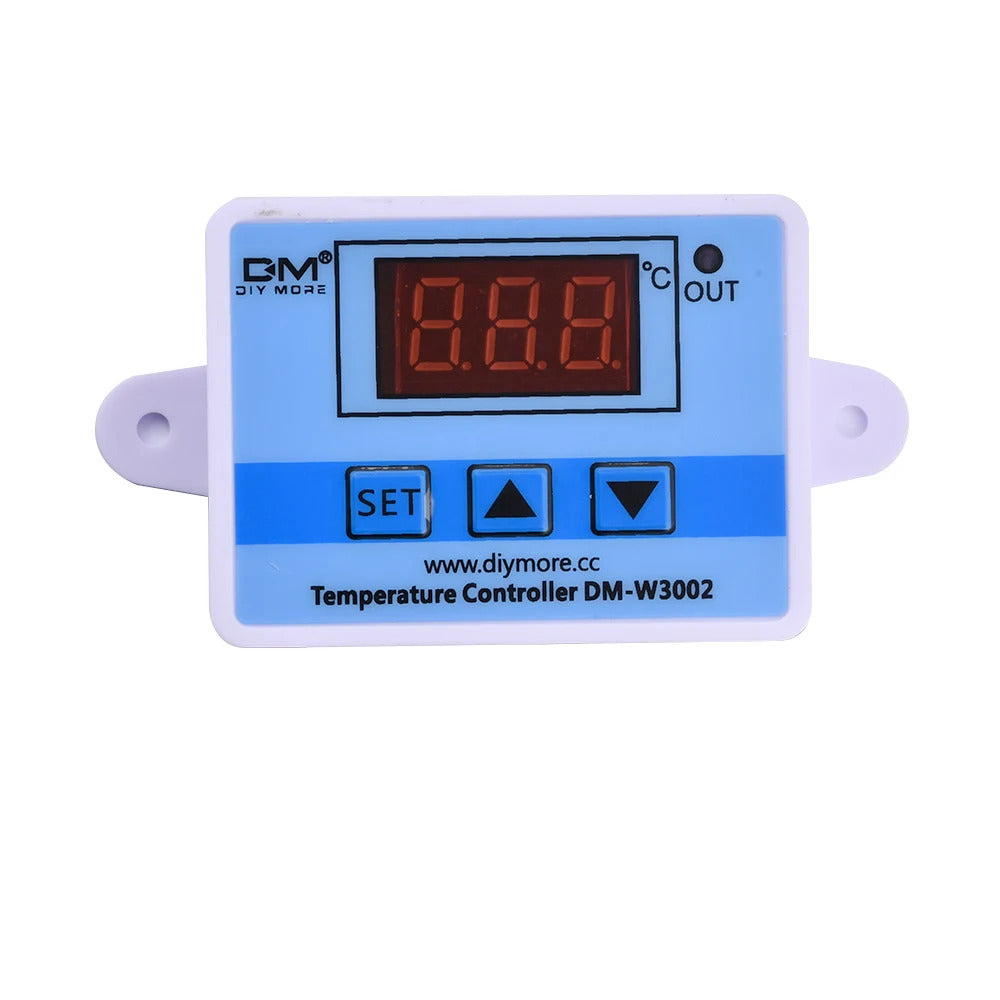

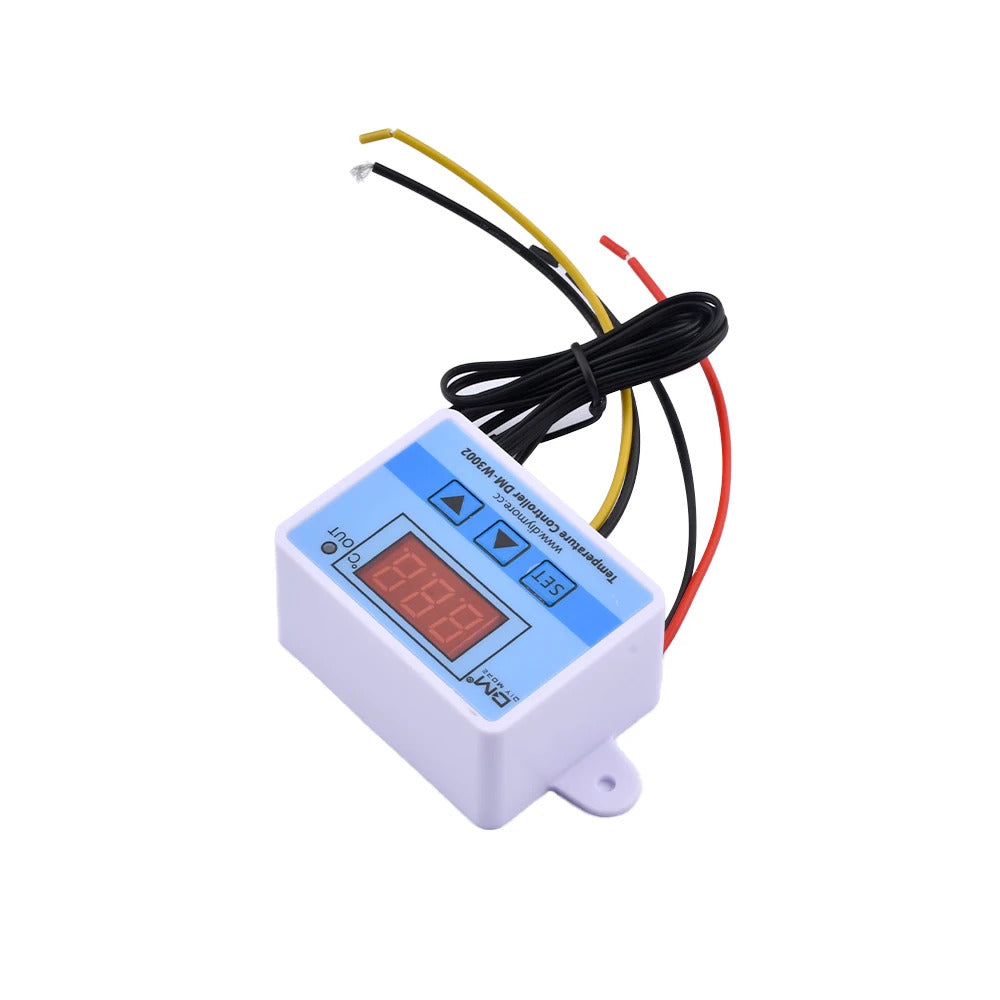

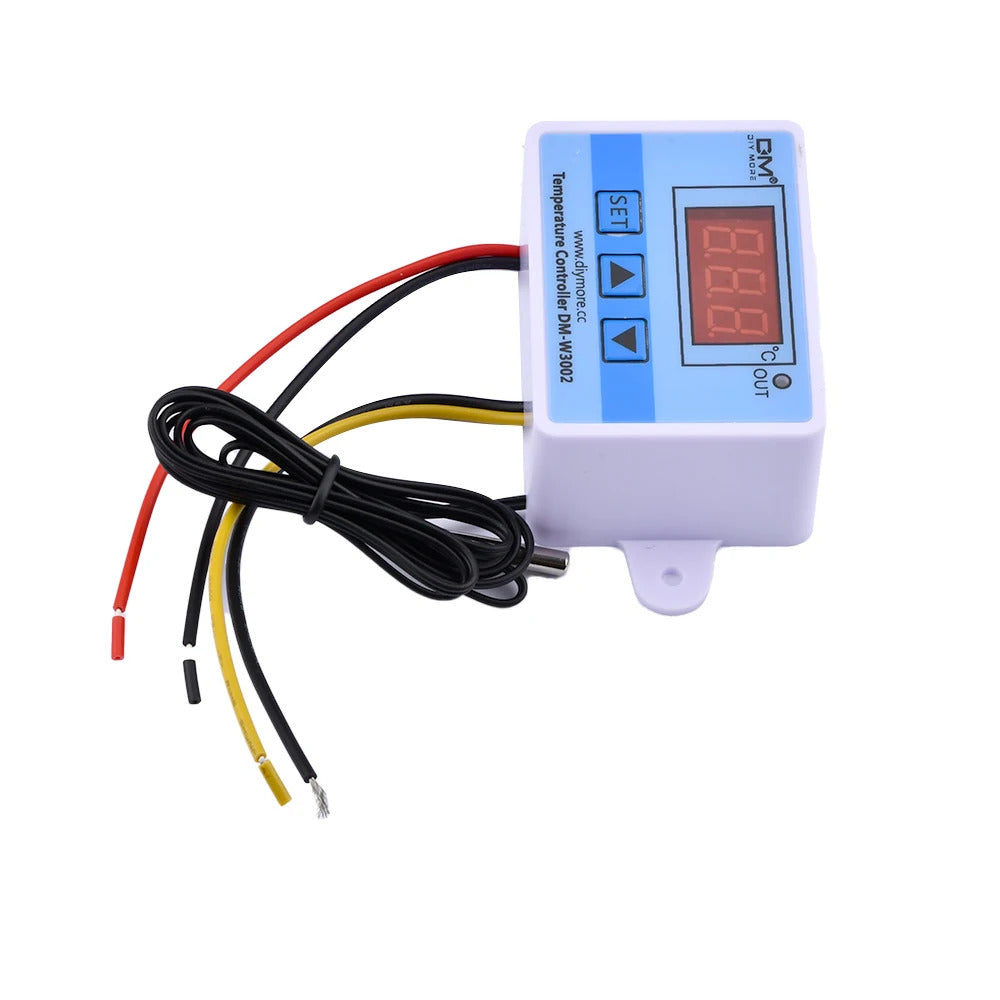

Package including: 1 Pack of W3002 intelligent thermostat module, which is equipped with 1pcs NTC 10K temperature probe.
The NTC probe is waterproof and allows you to control the temperature even of fluids, allowing the controlled heating or cooling.
W3002 Digital Thermostat specification: Temperature control range: -50-110°C. Control accuracy of 0.1 degrees Celsius. Input power: DC 12V. Output Power: 120W(MAX). Easy operation, to set start temperature, stop temperature, temperature correction, delay start.
High Power High Efficiency: Two Work Mode: Heating ( start temperature is less than stop temperature), Cooling ( start temperature is above than stop temperature) It is precise and reliable with good long-term stability.
With fixing screw hole,
A wide range of applications: Widely used in hvac, dehumidifier, test and test equipment, auto mobile, automatic control, weather station, humidity regulator and other related temperature detection and control.

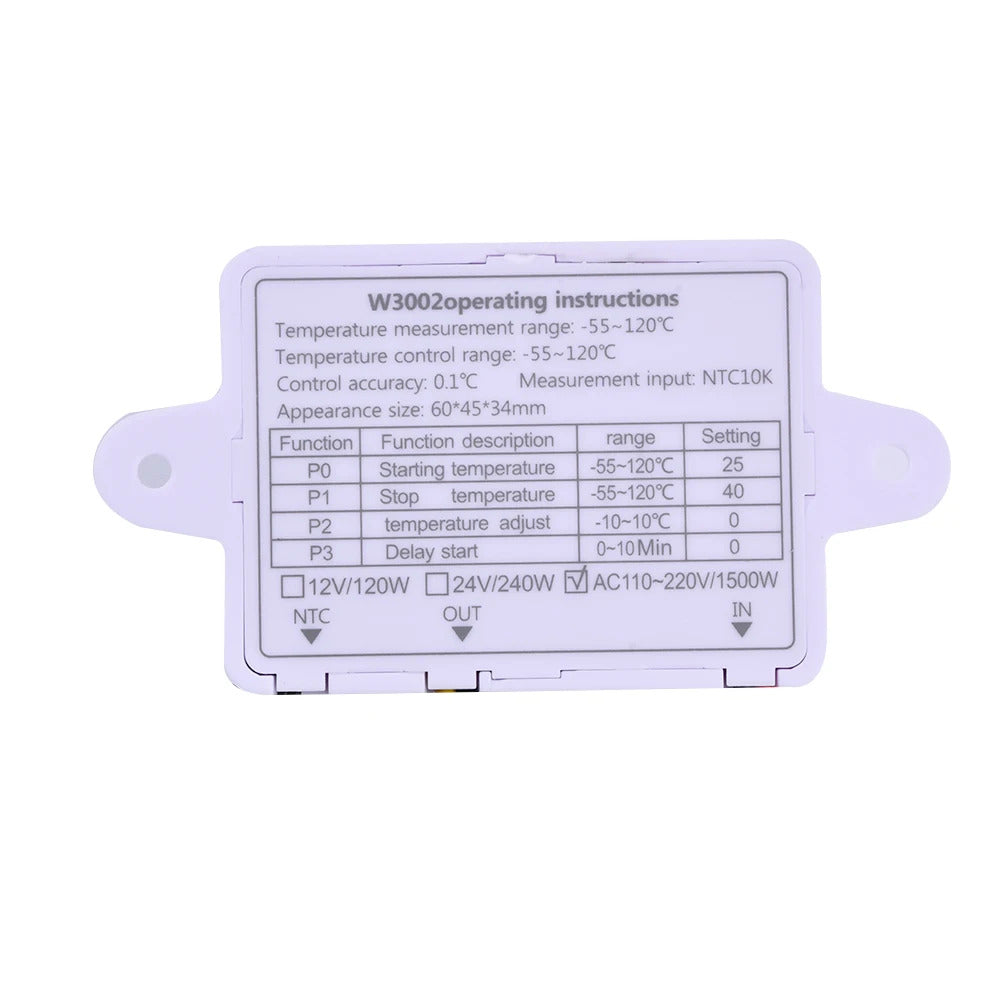

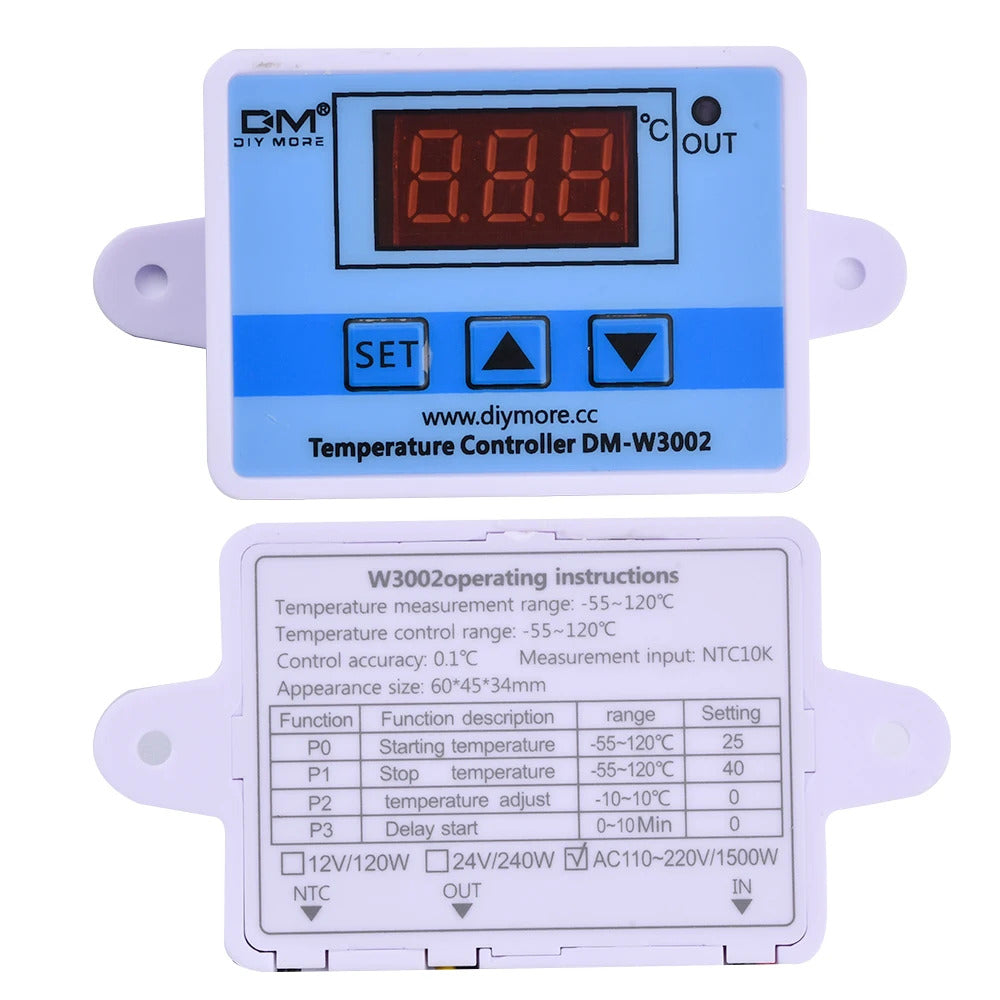

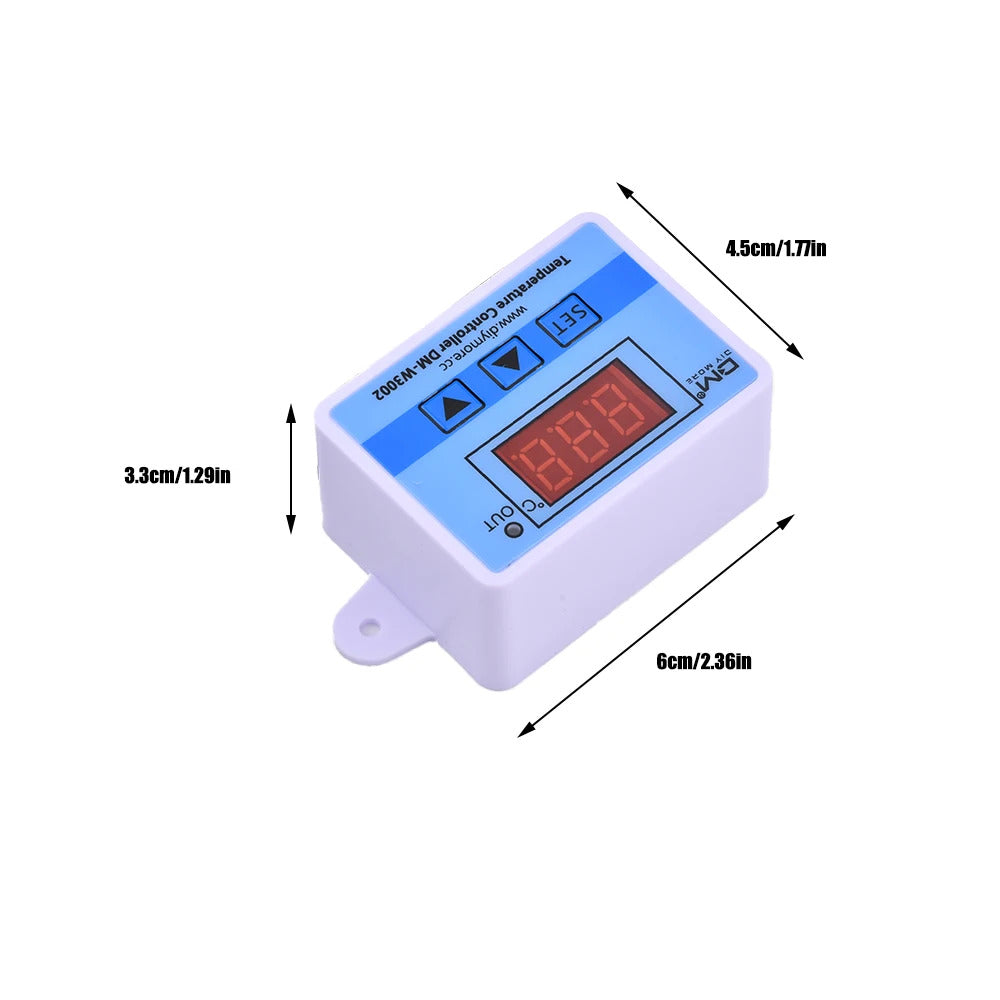

Parameters: Product name: Microcomputer temperature controller Product model: XH-W3002 Temperature measurement range: -50-110 ℃ Temperature control range: -50-110 ℃ Temperature measurement accuracy: ± 0.2 ℃ Temperature control accuracy: ± 0.1 ℃ Measurement input: NTC10K L=1 meter waterproof probe Input power supply: 12/24/220V Output power: 120/240/1500W Output type: direct output Output capacity: up to 10A Installation hole spacing: 73mm (aperture 4mm) Appearance size: 60 x 45 x 31mm
