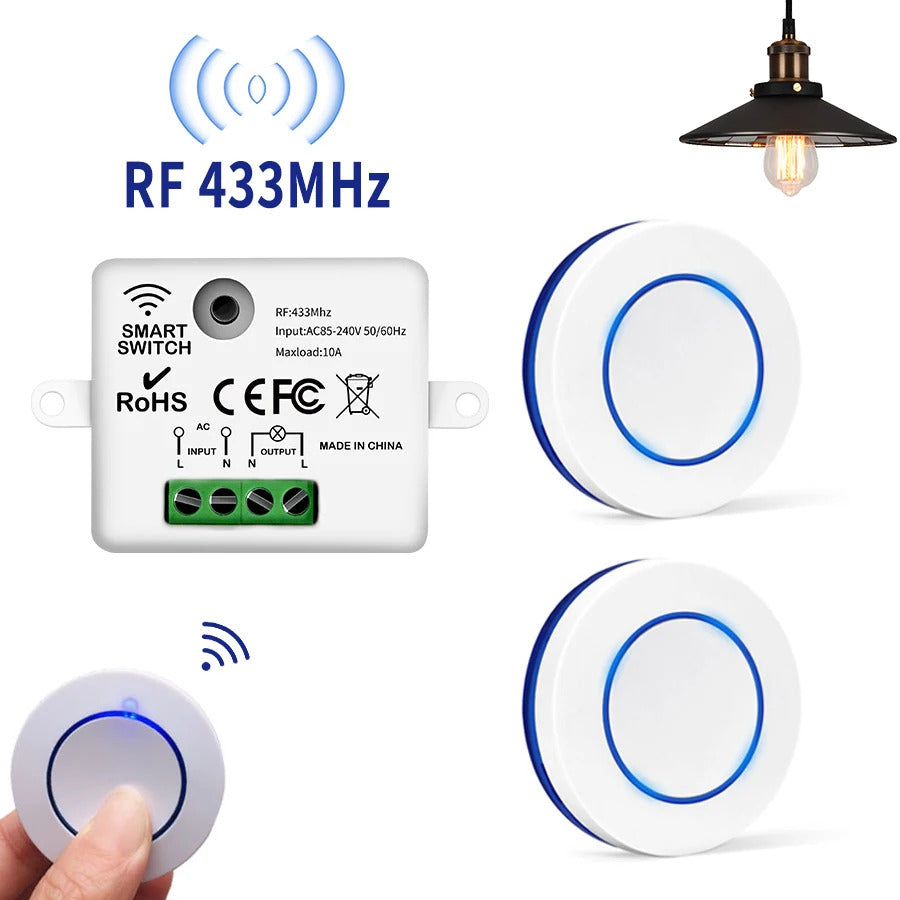

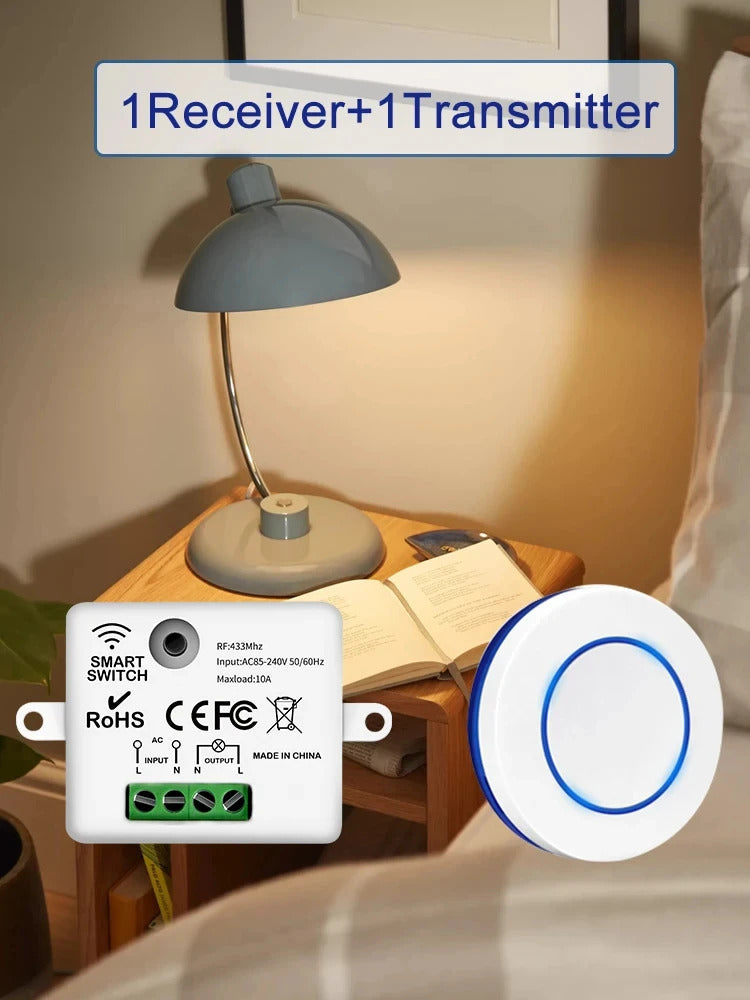

WIRELESS REMOTE CONTROL LIGHT SWITCH 22V 10A 433MHz

1. New mini round wireless panel switch (50mm x 50mm x 15mm)

2. 10A power: suitable for most equipment.

3. Mini body: can be directly installed in the switch bottom box, maintenance and installation are more convenient

4. Up to 50 meters remote range. The more obstacles, the shorter the distance.

Specification:

Transmitter (Remote) :
Operating frequency: 433MHz
Power by 2 Pcs 3V CR2016 Battery  (Battery  included )
Material: PVC;
Button: 2 buttons;
Size: 60mm x 30mm;
Operating voltage: 3V ;
Operating Current: 12mA;
Transmitting power: 10mw;
Modulation mode: ASK (AM).
Encoding type: Learning.
Transfers distance: 20~50m

Controller (Receiver) :
Input Power: AC85-240V 60HZ/50HZ
Max current: 10 A
RF Frequency: 433Mhz
Working temperature:-30~+80
RF working mode: superheterodyne
Receive sensitivity: >97dbm
Transmitting distance: more than 50 m ( open space)
Remote storage:10pcs

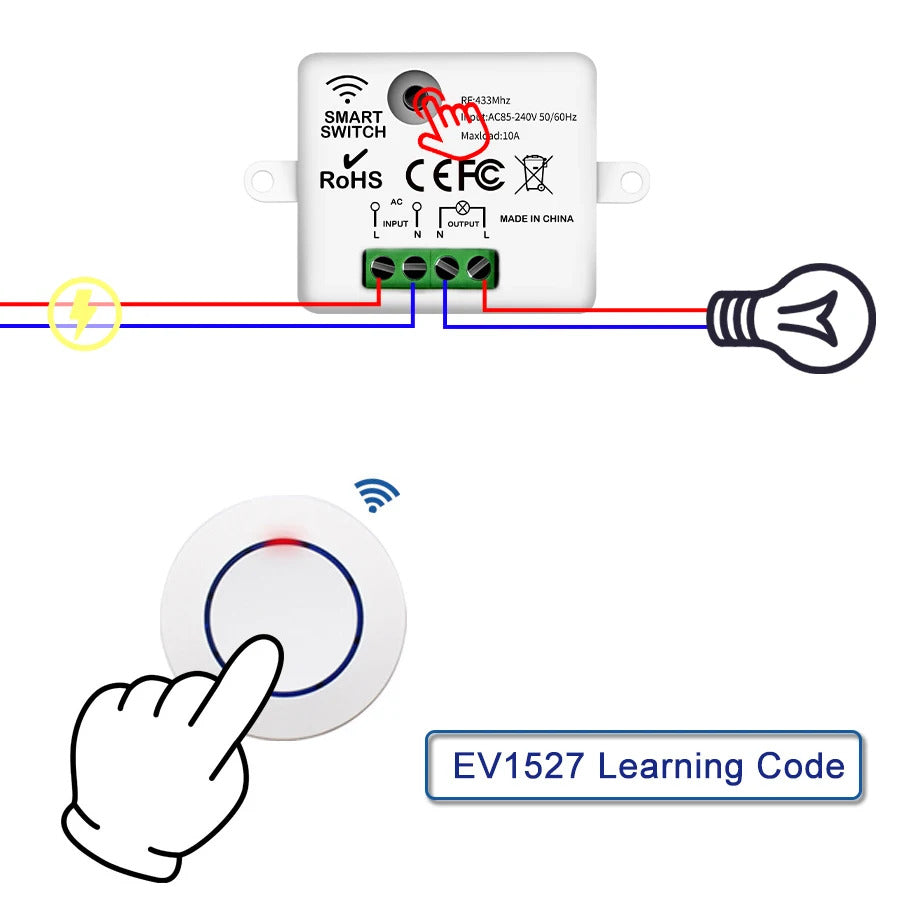

Support remote type: Learning code 1527code
Size: 47.4*42*22.8 (mm)

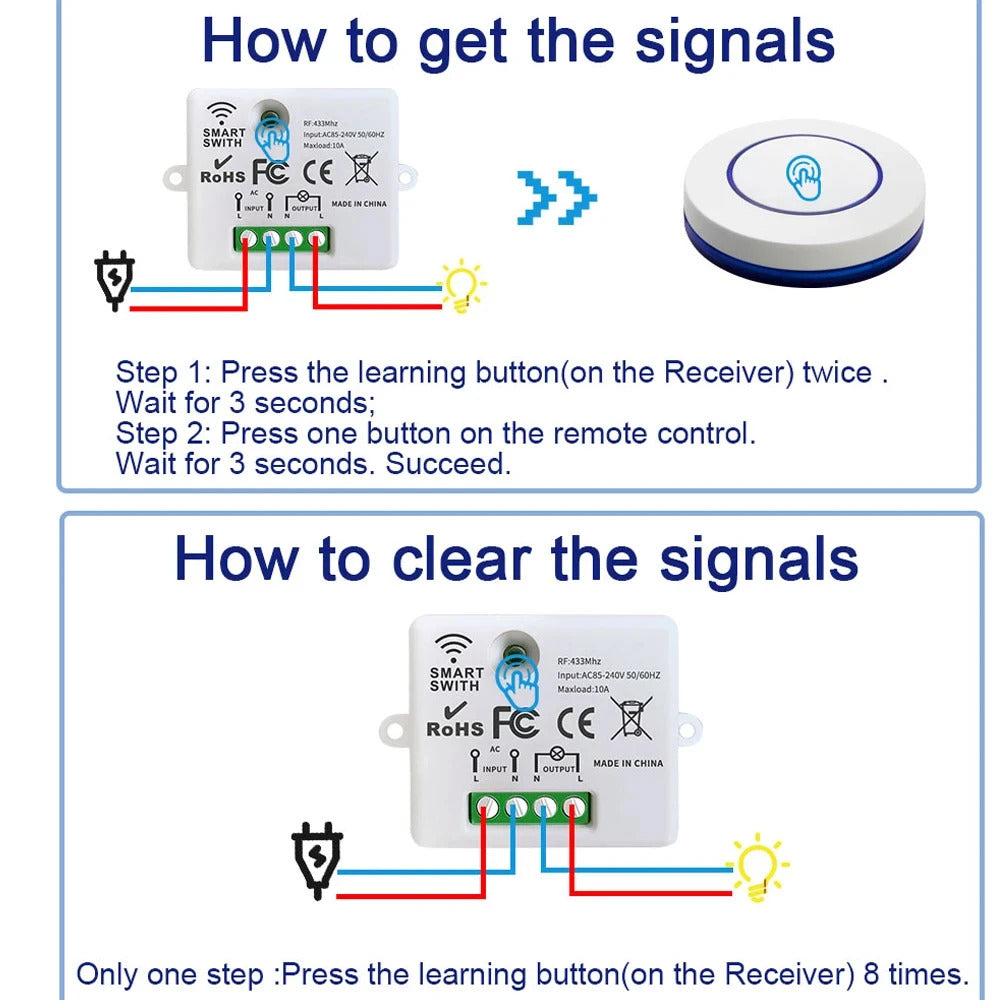

How to get the signals？

Step 1: Press the learning button(on the Receiver) twice . Wait for 3 seconds;
Step 2: Press one button on the remote control. Wait for 3 seconds. Succeed.

How to clear the signals？

Only one step :Press the learning button(on the Receiver) 8 times.
